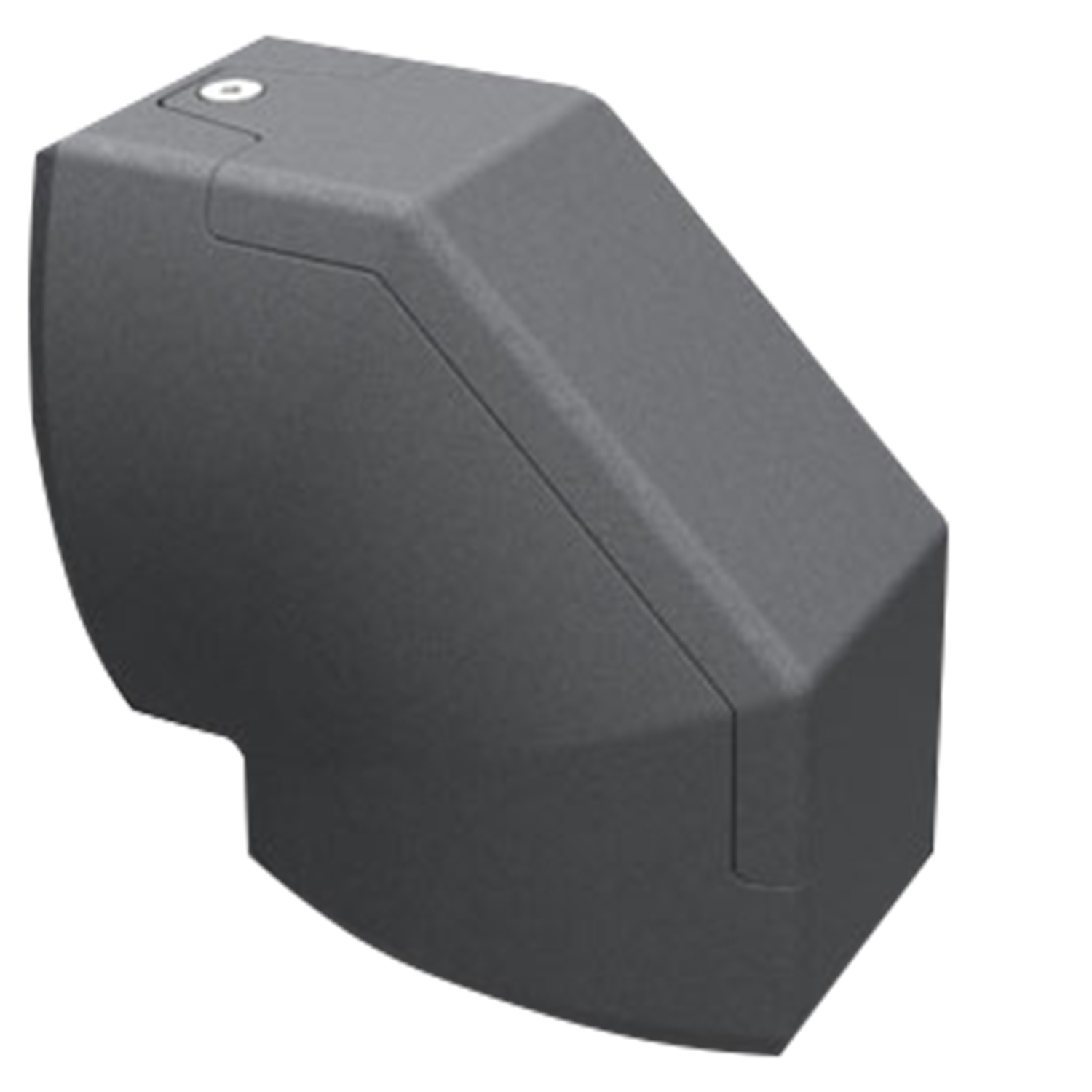

HMA I-080 elbow

7595-7401-04-01

HMA I-080 elbow

  • Cable passage 55x43 mm

Product description

Elbow for connecting a horizontal and a vertical HMA I- profile tube.

90° angle (rigid).

Overhead mounting is possible.

Detachable lid for easy cable routing and mounting of a HMA I- profile tube.

Technical data

  • Article number: 7595-7401-04-01
  • Position: between 2 tubes
  • Protection class: according to IP54
  • max. cable aperture: 55 x 43 mm/2,17 x 1,69"
  • Material: Die-cast aluminum
  • Surface: RAL 7016
  • Weight: 1.4 kg

Notice

  • Configurations and load carrying capacities, see operation manual.
  • Elbow complete with seals and mounting hardware
Save as PDF Save as PDF Direct request
HMA I-080 elbow
HMA I-080 elbow
Elbow for connecting a horizontal and a vertical HMA I- profile tube.
90° angle (rigid).
Overhead mounting is possible.
Detachable lid for easy cable routing and mounting of a HMA I- profile tube.
Art No.
Position
Cable passage
Surface finish
Remember
7595-7401-04-01
between 2 tubes
55 x 43 mm/2,17 x 1,69"
RAL 7016
