7595-7401-21-01

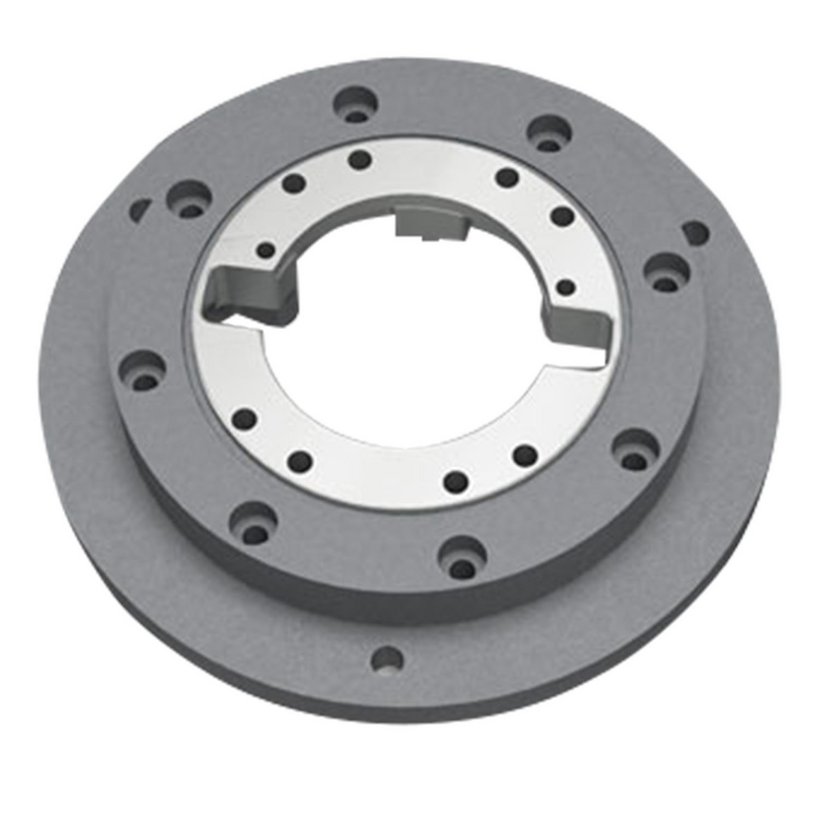

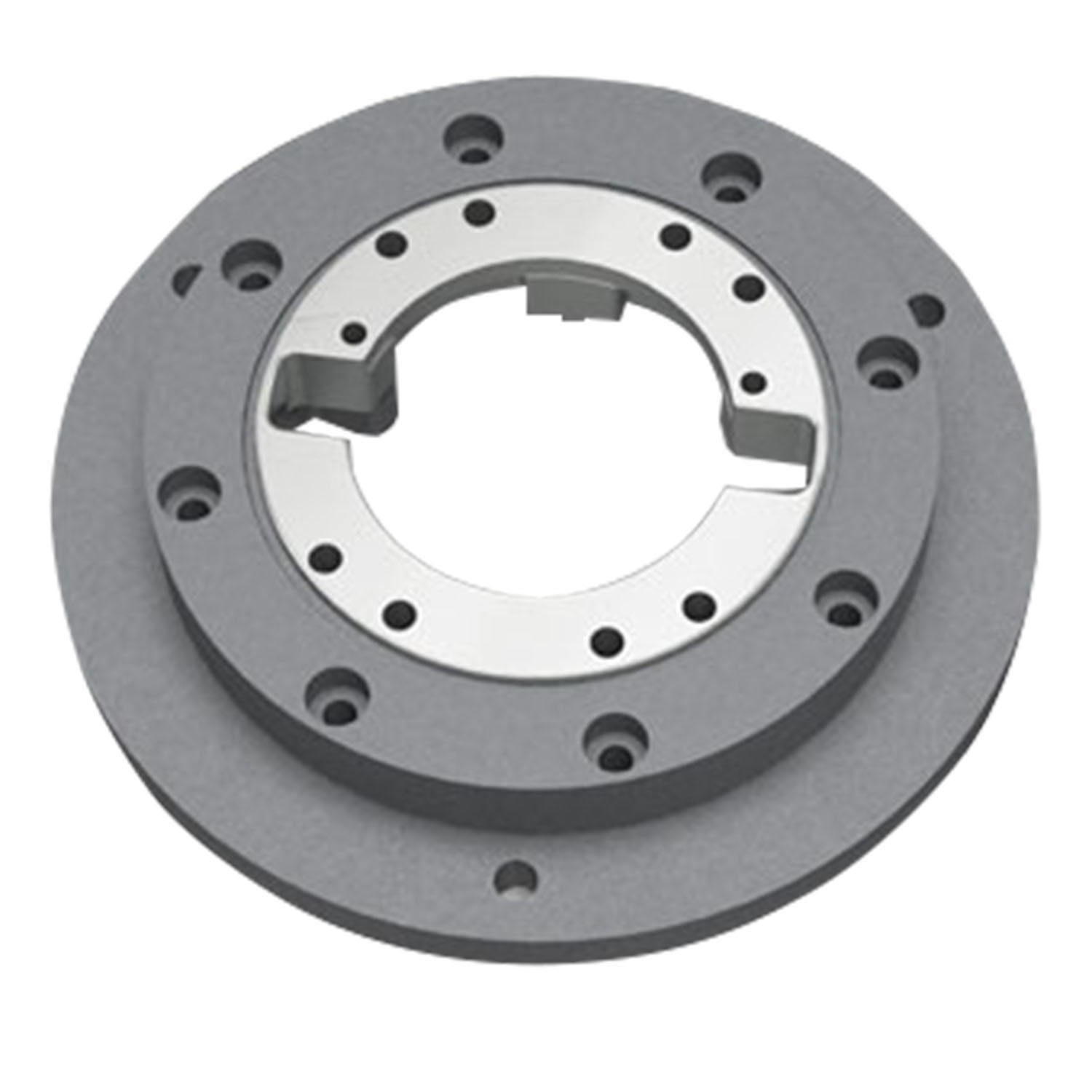

HMA I-080 Rotofix
- Variable swivel range up to 330°
- Cable passage Ø 60 mm
Product description
Rotofix for direct attachment assembly
Technical Data
-
Order No.: 7595-7401-21-01
-
Position: direct attachment assembly
-
Protection type: according to IP54
-
Cable passage: Ø 60 mm/2,36"
-
Swivel range: max. 330°
-
Swivel range limiter: adjustable to 90°/90°
-
Material: Die-cast aluminum
-
Surface: RAL 7016
-
Weight: 2 kg
Notice
- Configurations and load carrying capacities, see operation manual.
- Rotofix complete with seals and mounting hardware
Assembly instructions:
CAD data and other file formats:
