7595-7401-16-01

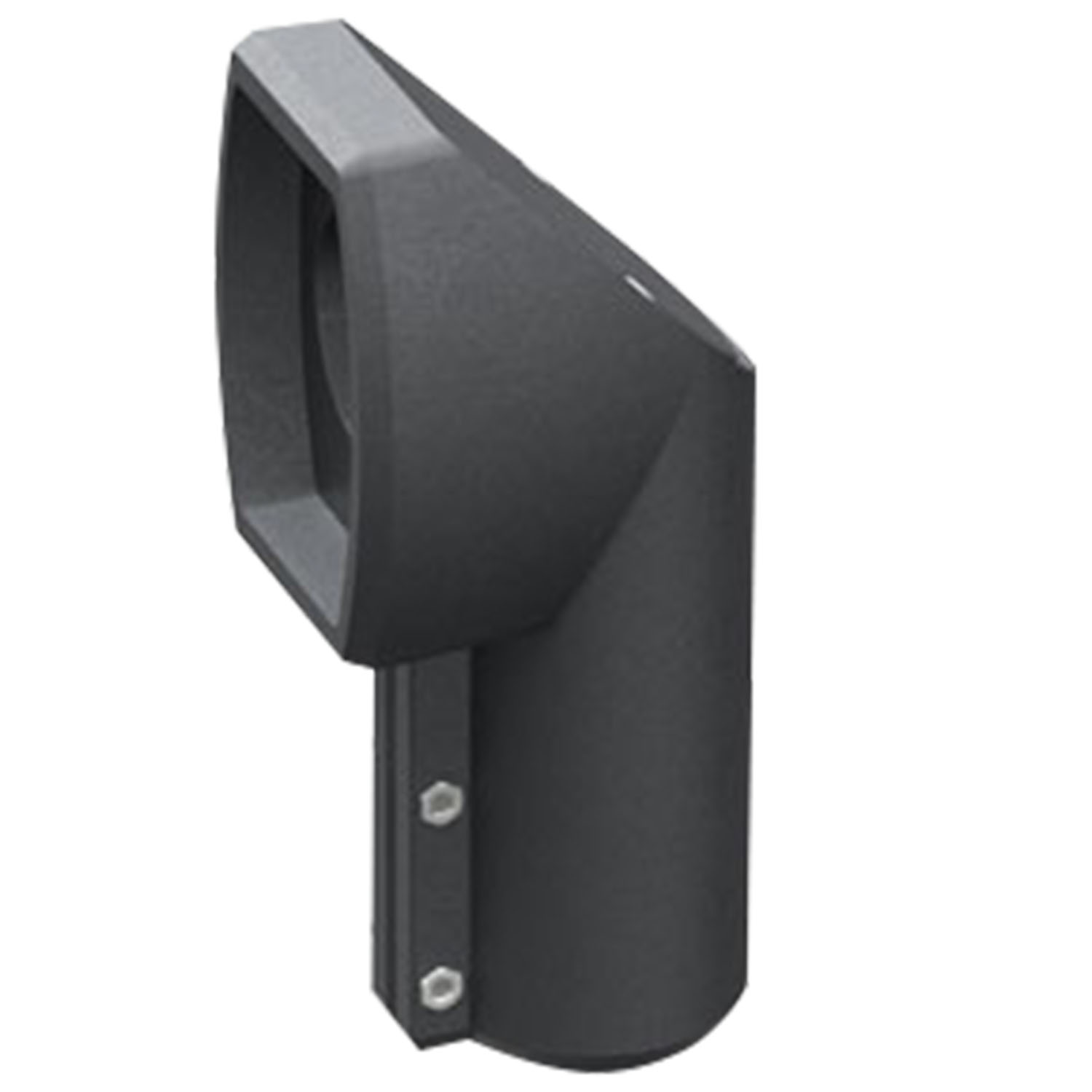

HMA I-040 elbow adapter
- Cable passage Ø 48 mm
Product description
For connecting a horizontal HMA I-080 profile tube with a vertical HMA I-040 round tube.
90° angle (rigid).
Overhead mounting is possible.
Detachable lid for easy cable routing and mounting of a HMA I-080 profile tube.
Drop protection by means of a screw M5.
Technical Data
-
PRODUCT NUMBER: 7595-7401-16-01
-
Position: between 2 tubes
-
Protection type: according to IP54
-
Cable passage: Ø 48 mm/1,89"
-
Material: Die-cast aluminum
-
Surface: RAL 7016
-
Weight: 0.8 kg
Notice
- Configurations and load carrying capacities, see operation manual.
- HMA I-040 Elbow adapter complete with seals and mounting hardware
Assembly instructions:
CAD data and other file formats:
