7595-7401-02-01

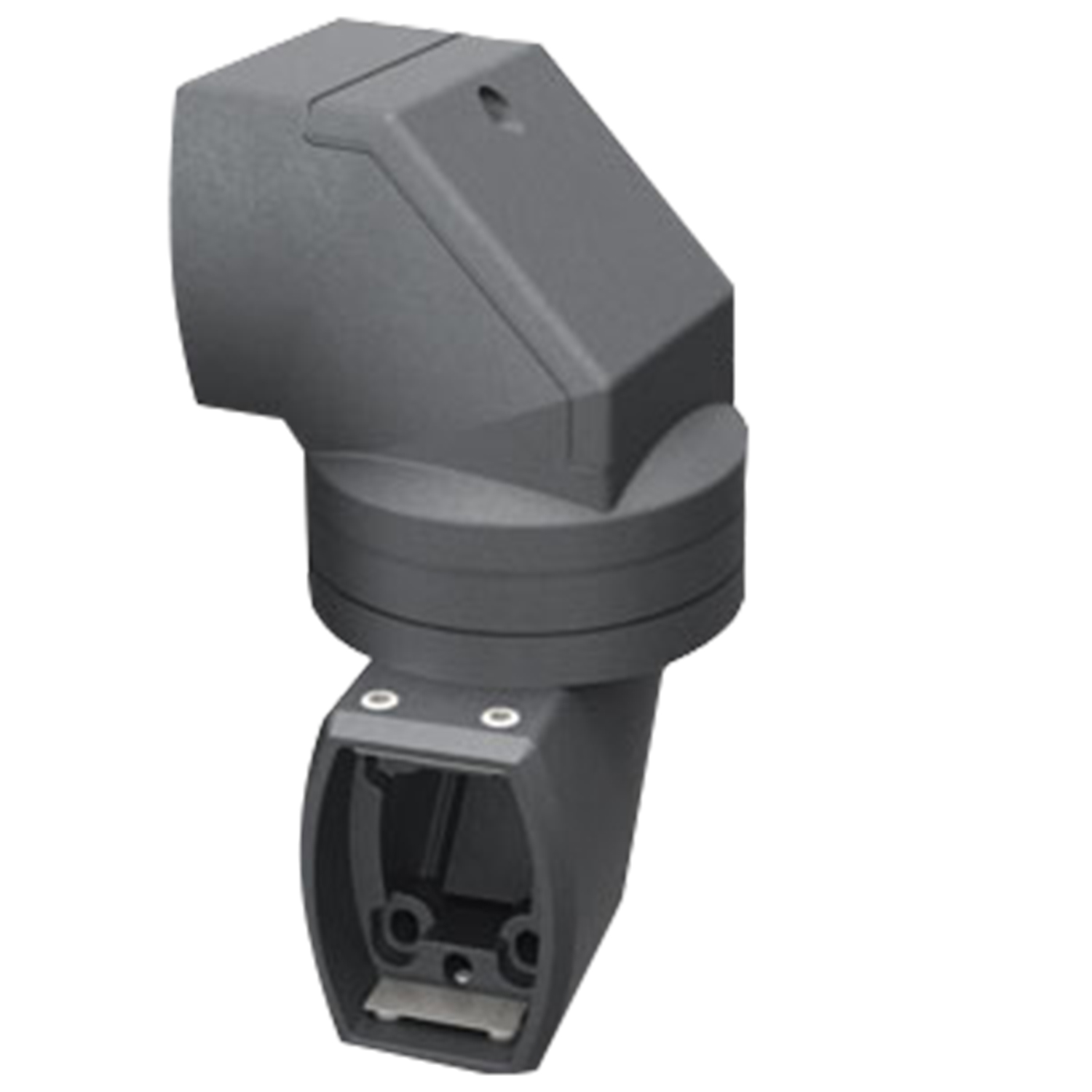

HMA I-080 wall joint
- Variable swivel range up to 300°
- Cable passage 55x43 mm
Product description
Wall joint for horizontal swiveling of the pendant arm.
Overhead mounting is possible.
Detachable lid for easy cable routing and mounting of a HMA I- profile tube.
Connection to a HMA I- profile tube is strain-relieved and torsion resistant.
Technical Data
-
Order No.: 7595-7401-02-01
-
Position: For connection to machines or walls
-
Protection type: according to IP54
-
Cable passage: 55 x 43 mm/2,17 x 1,69"
-
Swivel range: max. 300°
-
Swivel range limiter: Swivel range limiter: in 30° increments. Factory-set 90°/90°
-
Material: Die-cast aluminum
-
Surface: RAL 7016
-
Weight: 4.1 kg
Notice
- Configurations and load carrying capacities, see operation manual.
- Wall joint complete with seals, mounting hardware and accessories for inclination adjustment
