7595-7401-15-01

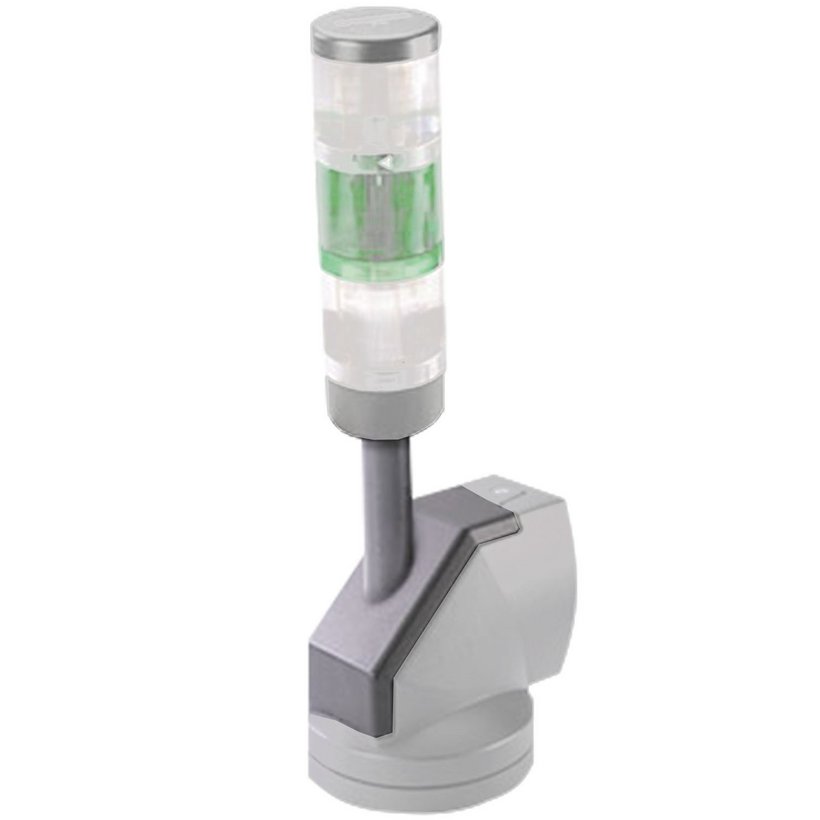

HMA I-080 light adapter
Product description
Connecting pipe Ø 25 mm.
Light adapter for rigid fixing of signal lights.Light adapter for rigid fixing of signal lights.
Technical Data
-
PRODUCT NUMBER: 7595-7401-15-01
-
Protection type: according to IP54
-
Material: Die-cast aluminum
-
Surface: RAL 7016
-
Weight: 0.6 kg
Notice
- Configurations and load carrying capacities, see operation manual.
- Light adpater with seals and mounting hardware
7595-7401-01-01
HMA I-080 set-up joint
Position
For connection to machines or walls
Cable passage
55 x 43 mm/2,17 x 1,69"
Surface finish
RAL 7016
7595-7401-02-01
HMA I-080 wall joint
Position
For connection to machines or walls
Cable passage
55 x 43 mm/2,17 x 1,69"
Surface finish
RAL 7016
7595-7401-02-02
HMA I-080 vertical wall joint
Position
For connection to machines or walls
Cable passage
55 x 43 mm/2,17 x 1,69"
Surface finish
RAL 7016
7595-7401-03-01
HMA I-080 intermediate joint
Position
between 2 tubes
Cable passage
55 x 43 mm/2,17 x 1,69"
Surface finish
RAL 7016
7595-7401-04-01
HMA I-080 elbow
Position
between 2 tubes
Cable passage
55 x 43 mm/2,17 x 1,69"
Surface finish
RAL 7016
7595-7401-08-01
HMA I-080 elbow joint
Position
For connection to enclosures
Cable passage
55 x 43 mm/2,17 x 1,69"
Surface finish
RAL 7016
7595-7401-09-01
HMA I-080 narrow flange elbow joint
Position
For connection to enclosures
Cable passage
55 x 43 mm/2,17 x 1,69"
Surface finish
RAL 7016
7595-7401-25-01
HMA I-080 rotating elbow
Position
between 2 tubes
Cable passage
38 x 55 mm/1,5 x 2,17"
Surface finish
RAL 7016
Assembly instructions:
CAD data and other file formats:
