3080-7041-61-33

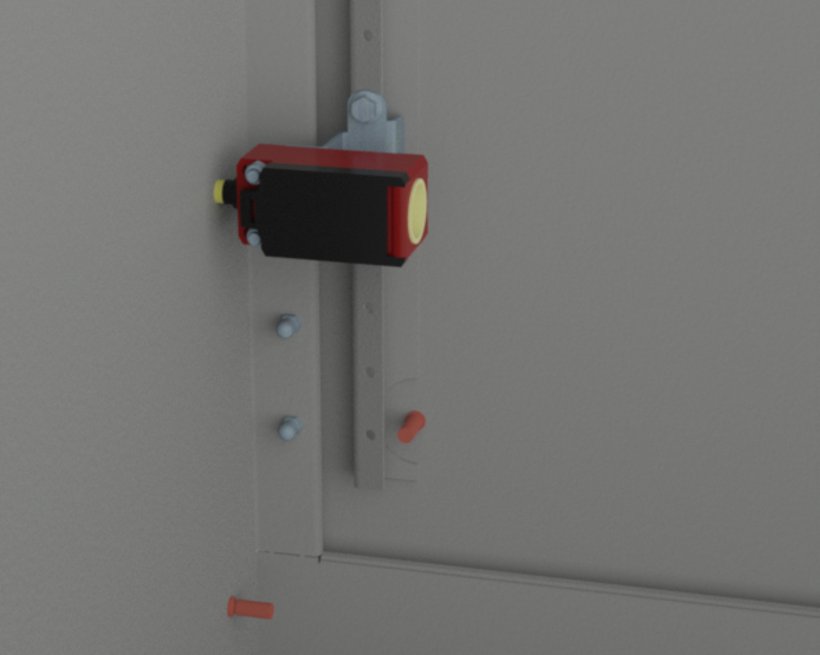

Door Switch for Wall-Mount Enclosures Serie 33 / H335 Console
Product description
The door switch can be mounted at any position on the continuous door frame at the hinge side.
Technical Data
-
Order No.: 3080-7041-61-33
-
Protection class: II, protective insulated
-
Rated operating voltage: Ue 240V
-
Rated insulation voltage: Ui 250 V AC
-
Cable entry: 1 x M20x1,5
-
Conventional thermal current: lthe 10 A
-
Attachment: 2 x M4
-
Utilization category: AC-15, Ue/le 240V/3A
-
Enclosure and cover: Glass fiber reinforced plastic (UL 94-V0)
-
Mounting type: 4 screw connection (M3.5)
-
Mechanical service life: 10000000 cycles
-
EC conformity: to directive 2006/95/EG
-
Contact: 1 Normally open, 1 normally closed
-
Conductor cross-sections: single-wire 0.5 to 1.5 mm², stranded wire with wire end ferrule 0.5 to 1.5 mm²
-
Ambient temperature: from: -30 °C/-86 °F to +80 °C/+176 °F
-
Fitting position: variable
-
Protection type: IP65
-
Weight: 0.11 kg
- 1 door switch with mounting hardware

0335-1010-49-07
H335 Console, sheet steel, 2 doors
Width
1000 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12

0335-1010-49-17
H335 Console, sheet steel, 2 doors
Width
1000 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12

0335-1210-49-07
H335 Console, sheet steel, 2 doors
Width
1200 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12

0335-1210-49-17
H335 Console, sheet steel, 2 doors
Width
1200 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12

0335-5010-49-07
H335 Console, sheet steel, 1 door
Width
500 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12

0335-5010-49-17
H335 Console, sheet steel, 1 door
Width
500 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12

0335-6010-49-07
H335 Console, sheet steel, 1 door
Width
600 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12

0335-6010-49-17
H335 Console, sheet steel, 1 door
Width
600 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12

0335-8010-49-07
H335 Console, sheet steel, 1 door
Width
800 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12

0335-8010-49-17
H335 Console, sheet steel, 1 door
Width
800 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12

3331-1010-30-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1000 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3331-1010-30-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1000 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3331-1010-40-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3331-1010-40-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3331-1012-30-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3331-1012-30-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3331-1012-35-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3331-1012-35-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3331-1012-40-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3331-1012-40-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3331-1014-30-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1400 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3331-1014-30-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1400 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3331-1014-40-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1400 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3331-1014-40-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1400 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3331-1080-35-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
800 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3331-1080-35-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
800 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3331-1080-40-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3331-1080-40-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3331-1112-35-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-1112-35-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-1112-40-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-1112-40-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-1212-35-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1200 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3331-1212-35-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1200 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3331-1212-40-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1200 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3331-1212-40-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1200 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3331-1291-30-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1200 mm
Height
915 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3331-1291-30-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1200 mm
Height
915 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3331-3030-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
300 mm
Height
300 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-3030-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
300 mm
Height
300 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-3040-15-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
300 mm
Height
400 mm
Depth
150 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-3040-15-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
300 mm
Height
400 mm
Depth
150 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-3045-15-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
300 mm
Height
450 mm
Depth
150 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-3045-15-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
300 mm
Height
450 mm
Depth
150 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-3045-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
300 mm
Height
450 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-3045-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
300 mm
Height
450 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-4040-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
400 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-4040-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
400 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-4050-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
500 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-4050-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
500 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-4060-15-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
600 mm
Depth
150 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-4060-15-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
600 mm
Depth
150 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-4060-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
600 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-4060-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
600 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-4060-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
600 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-4060-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
600 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-4530-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
450 mm
Height
300 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-4530-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
450 mm
Height
300 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-5050-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
500 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-5050-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
500 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-5050-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
500 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-5050-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
500 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-5060-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
600 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-5060-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
600 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-5080-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
800 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-5080-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
800 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-6010-35-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1000 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-6010-35-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1000 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-6010-40-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-6010-40-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-6012-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-6012-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-6012-35-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-6012-35-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-6012-40-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-6012-40-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-6040-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
400 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-6040-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
400 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-6040-35-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
400 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-6040-35-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
400 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-6060-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-6060-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-6060-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-6060-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-6060-35-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-6060-35-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-6060-40-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-6060-40-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-6070-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
700 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-6070-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
700 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-6080-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
800 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-6080-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
800 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-6080-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
800 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-6080-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
800 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-6080-40-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-6080-40-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-7691-40-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
760 mm
Height
915 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-7691-40-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
760 mm
Height
915 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-8010-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-8010-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-8010-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-8010-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-8010-35-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-8010-35-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-8010-40-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-8010-40-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-8012-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-8012-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-8012-40-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-8012-40-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-8060-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
600 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-8060-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
600 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-8060-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
600 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-8060-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
600 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-8080-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-8080-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-8080-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-8080-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-8080-40-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-8080-40-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-9110-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1070 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-9110-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1070 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-9112-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-9112-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-9112-40-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-9112-40-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-9115-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1525 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-9115-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1525 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-9191-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
915 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3331-9191-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
915 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

3351-1012-30-00
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3351-1012-30-10
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3351-1012-35-00
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3351-1012-35-10
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3351-1012-40-00
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3351-1012-40-10
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3351-1014-30-00
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1400 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3351-1014-30-10
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1400 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3351-1014-40-00
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1400 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3351-1014-40-10
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1400 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3351-1112-35-00
Wall-mount enclosures series 33, stainless steel, single door
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-1112-35-10
Wall-mount enclosures series 33, stainless steel, single door
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-1112-40-00
Wall-mount enclosures series 33, stainless steel, single door
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-1112-40-10
Wall-mount enclosures series 33, stainless steel, single door
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-1212-35-00
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1200 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3351-1212-35-10
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1200 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3351-1212-40-00
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1200 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3351-1212-40-10
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1200 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

3351-3040-15-00
Wall-mount enclosures series 33, stainless steel, single door
Width
300 mm
Height
400 mm
Depth
150 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-3040-15-10
Wall-mount enclosures series 33, stainless steel, single door
Width
300 mm
Height
400 mm
Depth
150 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-4040-20-00
Wall-mount enclosures series 33, stainless steel, single door
Width
400 mm
Height
400 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-4040-20-10
Wall-mount enclosures series 33, stainless steel, single door
Width
400 mm
Height
400 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-4060-20-00
Wall-mount enclosures series 33, stainless steel, single door
Width
400 mm
Height
600 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-4060-20-10
Wall-mount enclosures series 33, stainless steel, single door
Width
400 mm
Height
600 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-5050-21-00
Wall-mount enclosures series 33, stainless steel, single door
Width
500 mm
Height
500 mm
Depth
210 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-5050-21-10
Wall-mount enclosures series 33, stainless steel, single door
Width
500 mm
Height
500 mm
Depth
210 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-6060-20-00
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
600 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-6060-20-10
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
600 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-6060-30-00
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
600 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-6060-30-10
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
600 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-6060-35-00
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
600 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-6060-35-10
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
600 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-6060-40-00
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
600 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-6060-40-10
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
600 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-6080-20-00
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
800 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-6080-20-10
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
800 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-6080-30-00
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
800 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-6080-30-10
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
800 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-6080-35-00
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
800 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-6080-35-10
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
800 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-6080-40-00
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-6080-40-10
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-8010-30-00
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
1000 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-8010-30-10
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
1000 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-8010-40-00
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-8010-40-10
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-8080-20-00
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
800 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-8080-20-10
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
800 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-8080-30-00
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
800 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-8080-30-10
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
800 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-8080-35-00
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
800 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-8080-35-10
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
800 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-8080-40-00
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3351-8080-40-10
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

3339-1070-40-17
Wall enclosure landscape format, sheet steel
Width
1000 mm
Height
700 mm
Depth
400 mm
Type
single door

3339-1270-40-17
Wall enclosure landscape format, sheet steel
Width
1200 mm
Height
700 mm
Depth
400 mm
Type
double door

3339-1670-40-17
Wall enclosure landscape format, sheet steel
Width
1600 mm
Height
700 mm
Depth
400 mm
Type
double door

3339-8070-30-17
Wall enclosure landscape format, sheet steel
Width
800 mm
Height
700 mm
Depth
300 mm
Type
single door

3339-8070-40-17
Wall enclosure landscape format, sheet steel
Width
800 mm
Height
700 mm
Depth
400 mm
Type
single door

R:20196_15315
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20196_15317
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20196_15456
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20196_15457
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20196_15458
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20196_15459
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1400 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20196_15460
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1200 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20196_15461
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1400 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20196_15462
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1200 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20196_6441
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20196_6442
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1400 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20196_6443
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1200 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20196_6922
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1000 mm
Height
1400 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20196_6923
Wallmount enclosures series 33, 2-doors-stainless steel
Width
1200 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20197_15199
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20197_15200
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20197_15366
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1000 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20197_15367
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20197_15368
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1400 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20197_15369
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1200 mm
Height
915 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20197_15370
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
800 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20197_15371
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20197_15372
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1200 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20197_15373
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20197_15374
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20197_15375
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20197_15376
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1400 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20197_15377
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1200 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20197_6386
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1000 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20197_6387
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20197_6388
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1400 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20197_6389
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1200 mm
Height
915 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20197_6390
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
800 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20197_6391
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20197_6392
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1200 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20197_6904
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20197_6905
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1400 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20197_6906
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1200 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus

R:20198_15314
Wall-mount enclosures series 33, stainless steel, single door
Width
300 mm
Height
400 mm
Depth
150 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_15427
Wall-mount enclosures series 33, stainless steel, single door
Width
300 mm
Height
400 mm
Depth
150 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_15428
Wall-mount enclosures series 33, stainless steel, single door
Width
400 mm
Height
400 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_15429
Wall-mount enclosures series 33, stainless steel, single door
Width
400 mm
Height
600 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_15430
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
600 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_15431
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
800 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_15432
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
800 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_15433
Wall-mount enclosures series 33, stainless steel, single door
Width
500 mm
Height
500 mm
Depth
210 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_15434
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
600 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_15435
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
800 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_15438
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
800 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_15439
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
1000 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_15440
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
800 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_15441
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
800 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_15442
Wall-mount enclosures series 33, stainless steel, single door
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_15443
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
600 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_15444
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_15448
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_15449
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_15450
Wall-mount enclosures series 33, stainless steel, single door
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_15452
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_15453
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
1000 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_15455
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
600 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_6426
Wall-mount enclosures series 33, stainless steel, single door
Width
400 mm
Height
400 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_6427
Wall-mount enclosures series 33, stainless steel, single door
Width
400 mm
Height
600 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_6428
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
600 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_6429
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
800 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_6430
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
800 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_6431
Wall-mount enclosures series 33, stainless steel, single door
Width
500 mm
Height
500 mm
Depth
210 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_6433
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
600 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_6434
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
800 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_6435
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
800 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_6437
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
600 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_6438
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
800 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_6439
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
800 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_6440
Wall-mount enclosures series 33, stainless steel, single door
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_6917
Wall-mount enclosures series 33, stainless steel, single door
Width
600 mm
Height
600 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_6919
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_6920
Wall-mount enclosures series 33, stainless steel, single door
Width
800 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20198_6921
Wall-mount enclosures series 33, stainless steel, single door
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Type 1, 2, 4X, 5, 12; Optional 3, 3R
Approval
cULus

R:20199_15319
Wall-mount enclosures series 33 sheet steel, 1 door
Width
300 mm
Height
400 mm
Depth
150 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15320
Wall-mount enclosures series 33 sheet steel, 1 door
Width
300 mm
Height
450 mm
Depth
150 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15321
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
600 mm
Depth
150 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15322
Wall-mount enclosures series 33 sheet steel, 1 door
Width
300 mm
Height
300 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15323
Wall-mount enclosures series 33 sheet steel, 1 door
Width
300 mm
Height
450 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15324
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
400 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15325
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
500 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15326
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
600 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15327
Wall-mount enclosures series 33 sheet steel, 1 door
Width
450 mm
Height
300 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15328
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
500 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15329
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
800 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15330
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
400 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15331
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15332
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
700 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15333
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
800 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15334
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15335
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15337
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
600 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15339
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
500 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15340
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
800 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15342
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15344
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15345
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15346
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15348
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1070 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15349
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15352
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1525 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15353
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
400 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15356
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15357
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1000 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15358
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15359
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15360
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15362
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15363
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15364
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15365
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15485
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15610
Wall-mount enclosures series 33 sheet steel, 1 door
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15611
Wall-mount enclosures series 33 sheet steel, 1 door
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15612
Wall-mount enclosures series 33 sheet steel, 1 door
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_15613
Wall-mount enclosures series 33 sheet steel, 1 door
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_16203
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
600 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_16204
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
600 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_16205
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
600 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_16206
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
600 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_17253
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
600 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_17254
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
600 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_17255
Wall-mount enclosures series 33 sheet steel, 1 door
Width
760 mm
Height
915 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_17256
Wall-mount enclosures series 33 sheet steel, 1 door
Width
760 mm
Height
915 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_17257
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
915 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_17258
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
915 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_17259
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_17260
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_17868
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_30365
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_30366
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6354
Wall-mount enclosures series 33 sheet steel, 1 door
Width
300 mm
Height
400 mm
Depth
150 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6355
Wall-mount enclosures series 33 sheet steel, 1 door
Width
300 mm
Height
450 mm
Depth
150 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6356
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
600 mm
Depth
150 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6357
Wall-mount enclosures series 33 sheet steel, 1 door
Width
300 mm
Height
300 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6358
Wall-mount enclosures series 33 sheet steel, 1 door
Width
300 mm
Height
450 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6359
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
400 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6360
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
500 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6361
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
600 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6362
Wall-mount enclosures series 33 sheet steel, 1 door
Width
450 mm
Height
300 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6363
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
500 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6364
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
800 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6365
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
400 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6366
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6367
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
700 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6368
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
800 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6369
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6370
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6371
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
600 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6372
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
500 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6373
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
800 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6374
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6375
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6376
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6377
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6378
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1070 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6379
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6380
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1525 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6381
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
400 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6382
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6383
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1000 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6384
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6385
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6897
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6898
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6899
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6900
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6901
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6902
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20199_6903
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus

R:20200_7426
Wall enclosure landscape format, sheet steel
Width
800 mm
Height
700 mm
Depth
400 mm
Type
single door

R:20200_7427
Wall enclosure landscape format, sheet steel
Width
1000 mm
Height
700 mm
Depth
400 mm
Type
single door

R:20200_7428
Wall enclosure landscape format, sheet steel
Width
1200 mm
Height
700 mm
Depth
400 mm
Type
double door

R:20200_7429
Wall enclosure landscape format, sheet steel
Width
1600 mm
Height
700 mm
Depth
400 mm
Type
double door

R:20200_7430
Wall enclosure landscape format, sheet steel
Width
800 mm
Height
700 mm
Depth
300 mm
Type
single door
Assembly instructions:
