3331-1010-30-07

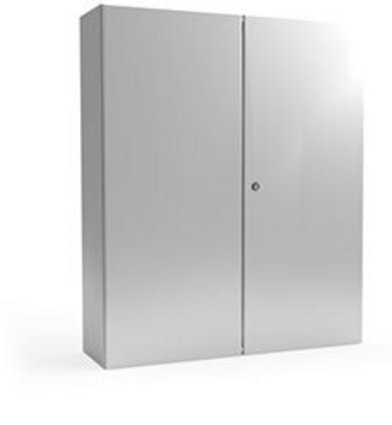

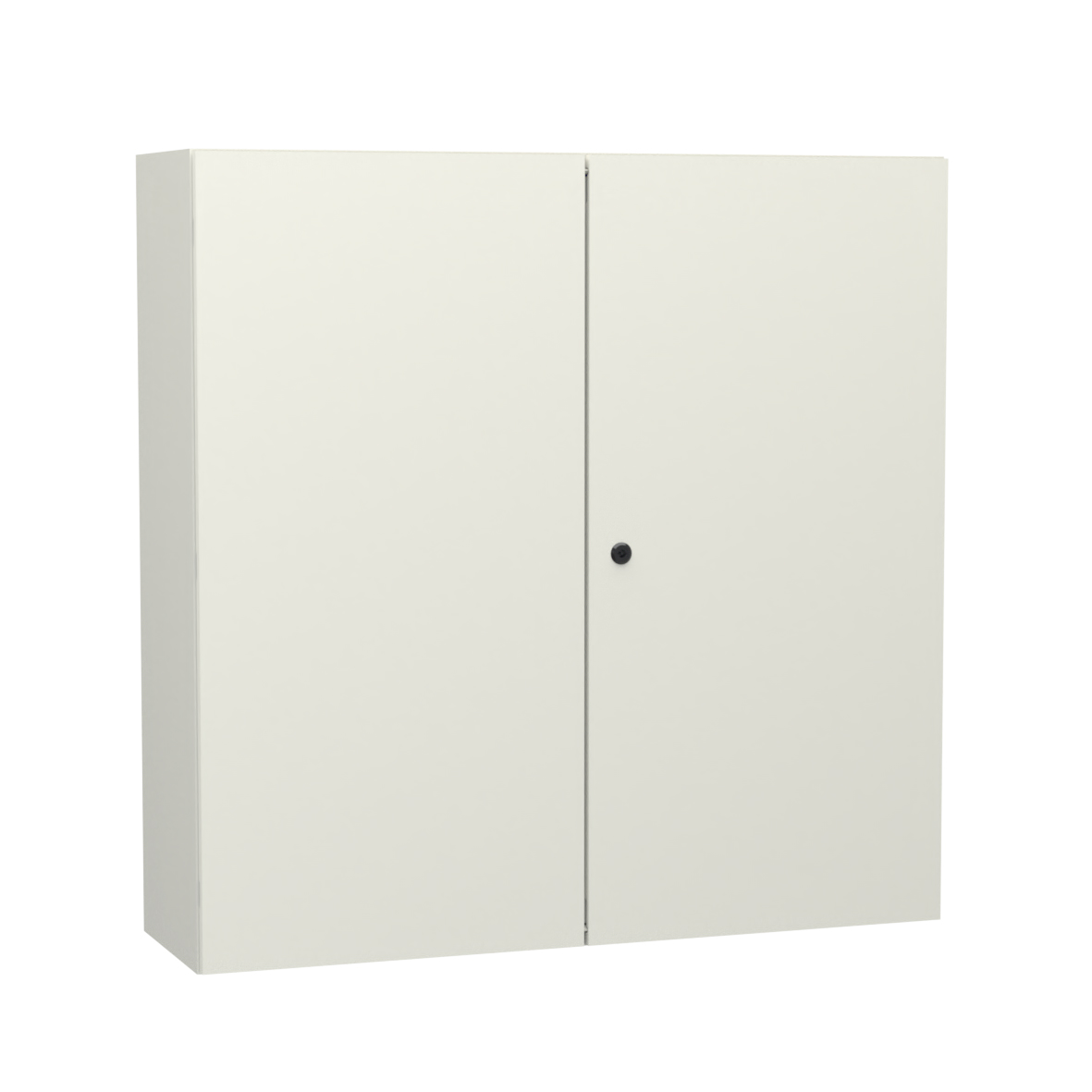

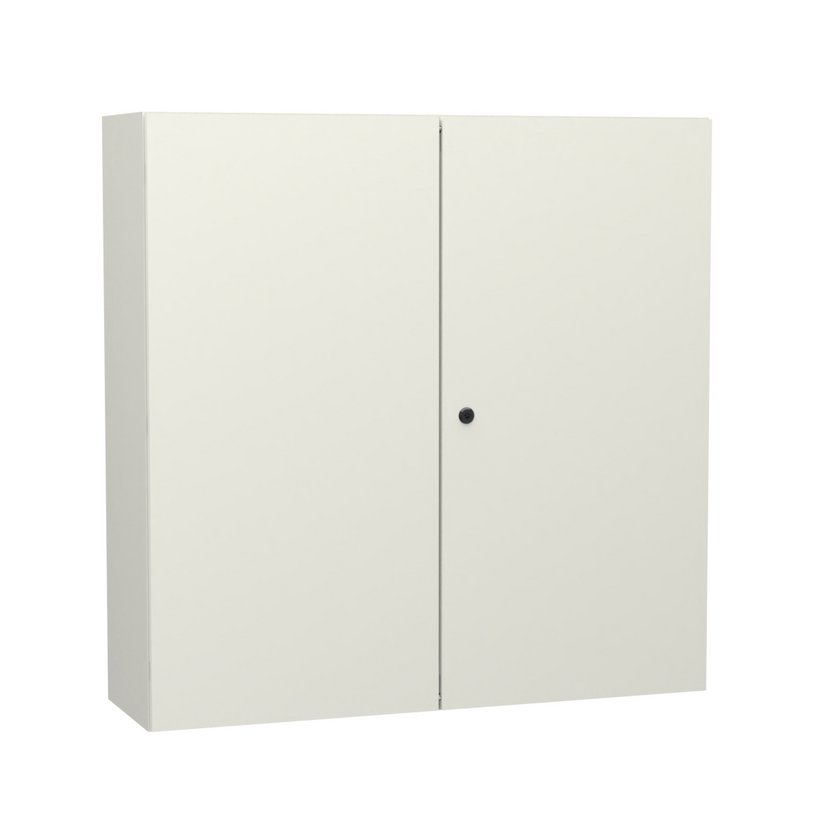

Wall-mount enclosures series 33, sheet steel, 2 doors
- Protection class IP66
- 180° concealed hinge
- Solid frame with a width of 26.5 mm
- Narrow door gap
- Flexible system accessories
- Approvals: cULus
Product description
Wall-mount enclosure with two doors. Optional with or without mounting plate.
Protective ground connection to DIN EN 61439-1, M6x16 studs on door and body.
Double flanged edges and a narrow door gap prevent dust and water from entering the cabinet when opening the door.
Door(s) with seamless foamed gasket, right door panel is overlapping, opening direction can be changed by exchanging the door panels.
Hidden hinges made of steel; opening angle 180°.
Locking: 3-point locking, standard 3 mm double-mandrel bolt.
Doors on both sides with reinforcement and attachment frame with Ø 4.2 mm holes every 25 mm /0.98”.
Bottom with external cable entry plates, flush with enclosure, made of sheet steel (size 1: LxW: 355x155 mm, usable area: 325x125 mm; size 2: LxW: 555x155 mm, usable area 525x125 mm). Attachment by means of M4 Gefu screws with Torx T20.
Flanged mounting plate bolted on rear panel.
Wall attachment: Rear panel with 4 holes Ø 9 mm for installation of wall mounting brackets.
Technical Data
-
Order No.: 3331-1010-30-07
-
Type: without mounting plate
-
Material: Sheet steel
-
Width: 1000 mm
-
Height: 1000 mm
-
Depth: 300 mm
-
Weight: 47.76 kg
-
Number of: Cable plate: 2
-
Size of cable entry plate: size 1
-
Sheet thickness: Body: 1,5 mm
Door: 2 mm -
Maximum installation: T-24 mm
-
Protective ground connection: according to DIN EN 61439-1
-
Surface: Powder coating RAL 7035, texture finish
-
Lock: plastic housing, locking bolt: GDZn black
latch: galvanized -
Approval: cULus
-
Protection type: IP55
Type 1, 2, 5, 12 -
Mounting plate edged: 0
Notice
- Compact handle 3070-0908-00-01 (for elongated barrel). Other modifications on request.
- Enclosure, with mounting plate (supplied loose) and fasteners, mounting hardware for protective ground connection, and 1 key, if applicable.
- Depending on dimensions with cable entry plate(s).
3080-7043-15-07
Sensor Operated LED Lamp, SOL 704
Operating voltage
120 V-230 V~ (50 Hz/60 Hz) +/- 10%
120 V-277 V~ (50 Hz/60 Hz) +/- 10%
120 V-277 V~ (50 Hz/60 Hz) +/- 10%
Mounting
magnetic
Length
440 mm
Approval
UKCA, cULus, cURus, CE, VDE EMC
3080-7043-35-07
Sensor Operated LED Lamp, SOL 704
Operating voltage
24 V- +/- 10%
Mounting
magnetic
Length
440 mm
Approval
UKCA, cULus, cURus, CE, VDE EMC
0351-9066-03-00
Wall mounting brackets, Stainless steel
Distance
Wall: 6 mm
Material
Stainless steel
3080-9066-05-05
Wall mounting brackets, Stainless steel
Distance
Wall: 12 mm
Material
Stainless steel
3080-9066-06-05
Wall mounting brackets, Stainless steel
Distance
Wall: 40 mm
Material
Stainless steel
3080-9036-06-20
Cable for Protective Ground Connection
Conductor cross-sections
6 mm2/0.01 in2
Dimensions
Length: 220 mm/8,66"
Drilling diameter d
Ø=6,4 mm
Material
H07V-K
3080-9036-06-35
Cable for Protective Ground Connection
Conductor cross-sections
6 mm2/0.01 in2
Dimensions
Length: 370 mm/14,57"
Drilling diameter d
Ø=6,4 mm
Material
H07V-K
3080-7035-12-27
Cable entry plate for serie33 sheet steel closed
Material
Sheet steel
Widht
155 mm
Length
355 mm
3080-7035-12-57
Cable entry plate for serie33 sheet steel with knockouts
Material
Sheet steel
Widht
155 mm
Length
355 mm
3080-7102-80-20
Cable entry plate for Series 33 high packing density
Material
Support plates made of sheet steel, elastomer plates made of NR (natural rubber) (black) and EPDM (Ethylene-Propylene-Diene) (grey)gasket NBR (Acrylnitrilebutadiene)
Widht
155 mm
Length
355 mm
3336-1005-30-07
Bases
Suitable for depth
300 mm
Suitable for width
1000 mm
Material
Sheet steel
Base height
50 mm
3331-1010-05-97
Replacement door for sheet steel enclosures of Series 33
Suitable for width
1000 mm
Suitable for height
1000 mm
Material
Sheet steel
Version
Double door set
3331-1010-02-97
Replacement door for sheet steel enclosures of Series 33
Suitable for width
1000 mm
Suitable for height
1000 mm
Material
Sheet steel
Version
right
3331-1010-01-97
Suitable for width
1000 mm
Suitable for height
1000 mm
Material
Sheet steel
Version
Left door of double door set
3362-0001-03-82
Mounting frame in doors
Length
397 mm
Suitable for width
1000 mm
Variant
lockable door
3362-0001-04-47
Mounting frame in doors
Length
462 mm
Suitable for width
1000 mm
Variant
underlapping door
6153-1000-00-01
Rain rail 3R
Type Rating
approved for Type 1, 12, 3R
Material
sheet steel (powder coated)
3080-7041-61-33
Door Switch for Wall-Mount Enclosures Serie 33 / H335 Console
Contact
1 Normally open, 1 normally closed
Housing and lid
Glass fiber reinforced plastic (UL 94-V0)
Utilization category
AC-15, Ue/le 240V/3A
Rated operating voltage
Ue 240V
6016-0203-00-00
Interlock
Protection type
approved for Type 1, 2, 5, 12, 3, 3R, 4, 4X
Type
2 overlapping doors
3080-7108-33-31
Door opening restrictor
Surface
Galvanized
Material
Sheet steel
Opening angle
90°, 105°, 120°, 140°
