1201-0106-00-06

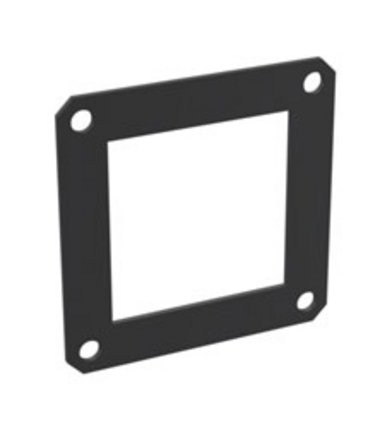

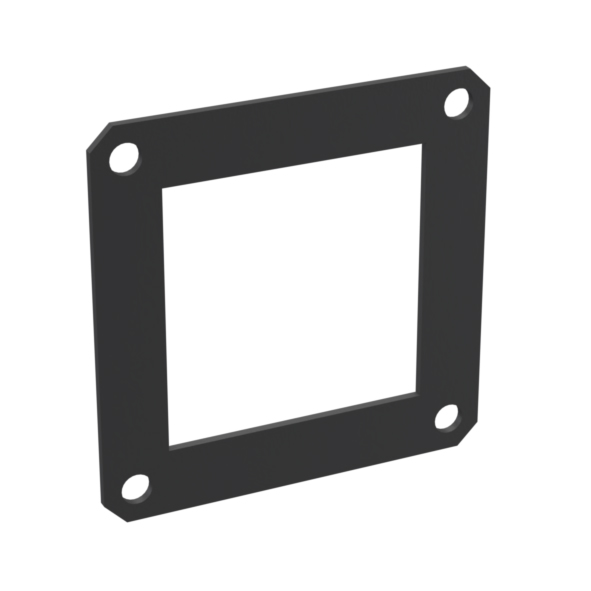

Rubber Gasket for Cable Duct System Type 1201
Product description
To seal flange joints
Technical Data
-
PRODUCT NUMBER: 1201-0106-00-06
-
Type: Cable duct system type 1201
-
Cross-section: 60 x 60 mm/2,36 x 2,36"
-
Material: NBR (Nitrile Butadiene Rubber)
-
Material thickness: 2 mm
-
Surface: black
-
Temperature range: from : -30 °C to : +100 °C
-
Weight: 0.01 kg
- 1 piece
1201-0106-00-03
Elbow
Type
Cable duct system type 1201
Cross section
60 x 60 mm/2,36 x 2,36"
Angle
90°
Routing direction
variable
Approval
UL
1201-0106-00-04
T-Section
Type
Cable duct system type 1201
Cross section
60 x 60 mm/2,36 x 2,36"
Angle
90°
Routing direction
variable
Approval
UL
1201-0106-05-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
60 x 60 mm/2,36 x 2,36"
Length
500 mm
Approval
UL
Material
Sheet steel
1201-0106-10-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
60 x 60 mm/2,36 x 2,36"
Length
1000 mm
Approval
UL
Material
Sheet steel
1201-0106-13-03
Elbow
Type
Cable duct system type 1201
Cross section
60 x 60 mm/2,36 x 2,36"
Angle
45°
Routing direction
variable
Approval
UL
1201-0106-20-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
60 x 60 mm/2,36 x 2,36"
Length
2000 mm
Approval
UL
Material
Sheet steel
1201-0106-25-00
Cable Duct kürzbar
Type
Cable duct system type 1201
Cross section
60 x 60 mm/2,36 x 2,36"
Length
2500 mm
Material
Sheet steel
1201-0106-00-05
Flange
Type
Cable duct system type 1201
Cross section
60 x 60 mm/2,36 x 2,36"
Material
Sheet steel
Surface
Untreated, greased
1201-0106-00-22
End Plate
Type
Cable duct system type 1201
Cross section
60 x 60 mm/2,36 x 2,36"
Material
Sheet steel
Surface
Powder coated RAL 7035, smooth structure, silk gloss
1201-0510-01-00
Reduction Flange
Type
Cable duct system type 1201
Cross section
from 100 x 100 to 60 x 60
Approval
UL
Material
Sheet steel
1201-1106-01-50
Bellow
Type
Cable duct system type 1201
Cross section
60 x 60 mm/2,36 x 2,36"
Material
Bellow: Highly flexible PVC, black
Flange: Sheet steel, powder coated RAL 7035, smooth structure, silk gloss
Flange: Sheet steel, powder coated RAL 7035, smooth structure, silk gloss
1201-1206-03-50
Telescopic Section
Type
Cable duct system type 1201
Cross section
60 x 60 mm/2,36 x 2,36"
Dimensions
Length: 47 mm - 300 mm
Material
Sheet steel
