1201-0110-00-06

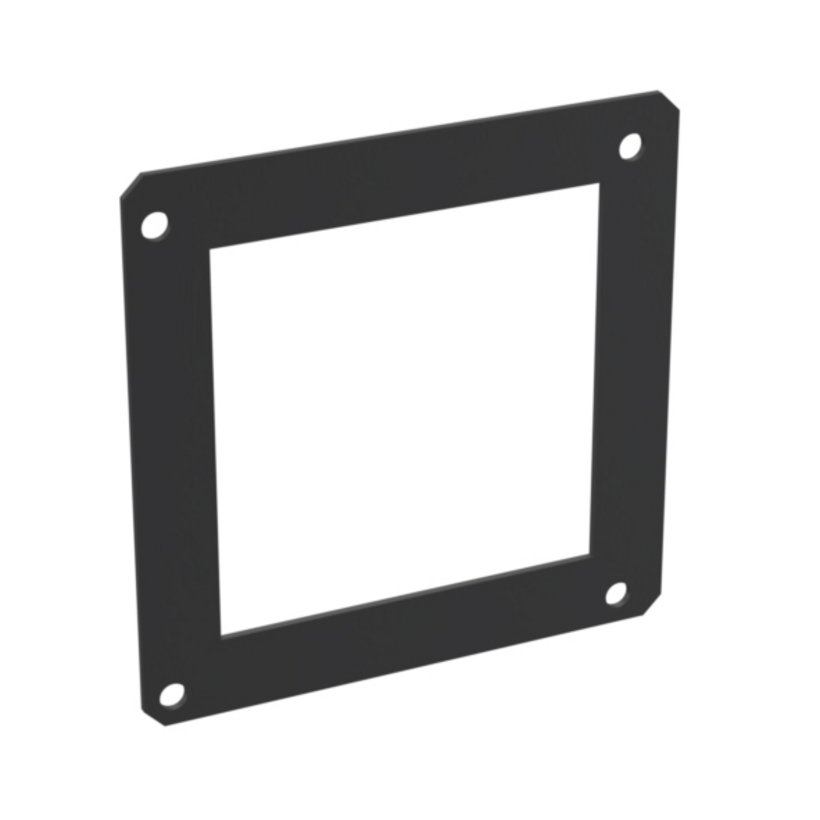

Rubber Gasket for Cable Duct System Type 1201
Product description
To seal flange joints
Technical Data
-
Order No.: 1201-0110-00-06
-
Type: Cable duct system type 1201
-
Cross-section: 100 x 100 mm/3,94 x 3,94"
-
Material: NBR (Nitrile Butadiene Rubber)
-
Material thickness: 2 mm
-
Surface: black
-
Temperature range: from : -30 °C to : +100 °C
-
Weight: 0.02 kg
- 1 piece
1201-0110-00-03
Elbow
Type
Cable duct system type 1201
Cross section
100 x 100 mm/3,94 x 3,94"
Angle
90°
Routing direction
variable
Approval
UL
1201-0110-00-04
T-Section
Type
Cable duct system type 1201
Cross section
100 x 100 mm/3,94 x 3,94"
Angle
90°
Routing direction
variable
Approval
UL
1201-0110-05-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
100 x 100 mm/3,94 x 3,94"
Length
500 mm
Approval
UL
Material
Sheet steel
1201-0110-10-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
100 x 100 mm/3,94 x 3,94"
Length
1000 mm
Approval
UL
Material
Sheet steel
1201-0110-13-03
Elbow
Type
Cable duct system type 1201
Cross section
100 x 100 mm/3,94 x 3,94"
Angle
45°
Routing direction
variable
Approval
UL
1201-0110-20-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
100 x 100 mm/3,94 x 3,94"
Length
2000 mm
Approval
UL
Material
Sheet steel
1201-0110-25-00
Cable Duct kürzbar
Type
Cable duct system type 1201
Cross section
100 x 100 mm/3,94 x 3,94"
Length
2500 mm
Material
Sheet steel
1201-0110-00-05
Flange
Type
Cable duct system type 1201
Cross section
100 x 100 mm/3,94 x 3,94"
Material
Sheet steel
Surface
Untreated, greased
1201-0110-00-22
End Plate
Type
Cable duct system type 1201
Cross section
100 x 100 mm/3,94 x 3,94"
Material
Sheet steel
Surface
Powder coated RAL 7035, smooth structure, silk gloss
1201-0515-01-00
Reduction Flange
Type
Cable duct system type 1201
Cross section
from 150 x 150 mm to 100 x 100 mm
Approval
UL
Material
Sheet steel
1201-1110-02-00
Bellow
Type
Cable duct system type 1201
Cross section
100 x 100 mm/3,94 x 3,94"
Material
Bellow: Highly flexible PVC, black
Flange: Sheet steel, powder coated RAL 7035, smooth structure, silk gloss
Flange: Sheet steel, powder coated RAL 7035, smooth structure, silk gloss
1201-1210-03-50
Telescopic Section
Type
Cable duct system type 1201
Cross section
100 x 100 mm/3,94 x 3,94"
Dimensions
Length: 47 mm - 300 mm
Material
Sheet steel
Assembly instructions:
CAD data and other file formats:
