To seal flange joints

For use with cable duct system type 1201 with UL, Type 12 or 3R.
For the reduction or increase from one duct size to the next one.
Equipotential bonding is realized directly via bolts and/or cables for protective ground connection (see accessories).

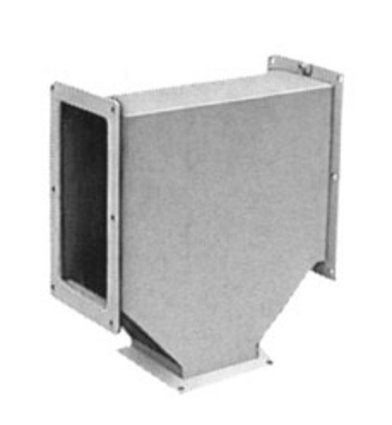

T-sections are used for cable routing in various directions. They are equipped with welded flanges at each outlet.
Equipotential bonding is realized directly via bolts and/or cables for protective ground connection (see accessories).

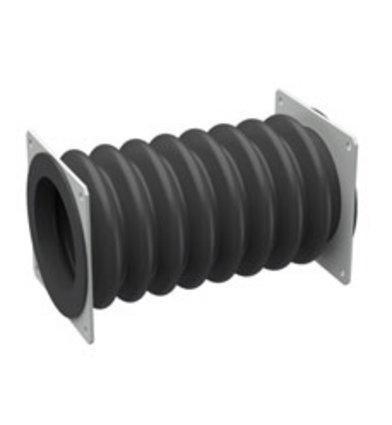

To prevent vibration transfer from the machine to the cable duct system or the control cabinet and to compensate for any existing misalignments during assembly.
Attachment with sheet steel flanges.

For use with cable duct system type 1201.

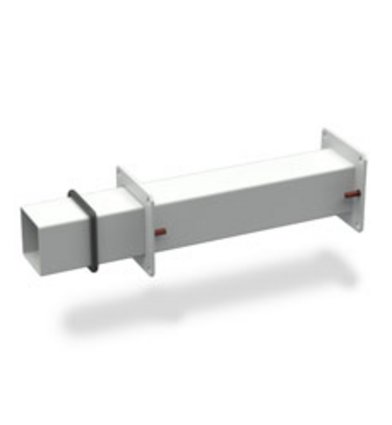

Telescopic section with one welded and one flexible flange, used to compensate length differences from 47 mm to 300 mm.
Equipotential bonding is realized directly via bolts and/or cables for protective ground connection (see accessories).

For intermediate lengths, if the duct is cut to length by the customer or for straight cable ducts, which can be cut to length.

End plate, screw-type attachment, for closing open cross-sections of cable duct system type 1201.

Self-adhesive on one side, for cover sealing of the cable duct system type 1201.

For intermediate lengths, if the duct is cut to length by the customer or for straight cable ducts, which can be cut to length.

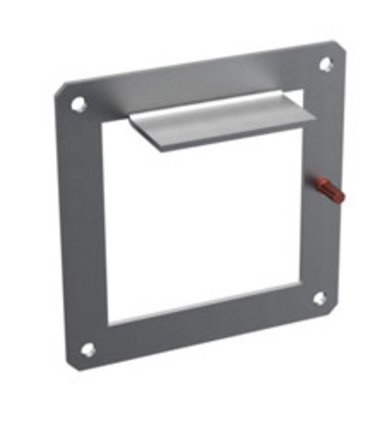

This weld-on flange is used to connect other fittings of the cable duct system type 1201.
Equipotential bonding is realized directly via bolts and/or cables for protective ground connection (see accessories).

For attachment of cable ducts with flange to walls, floors or ceilings.

For closing flaps, etc.
Weld-on attachment.
