1201-0510-01-00

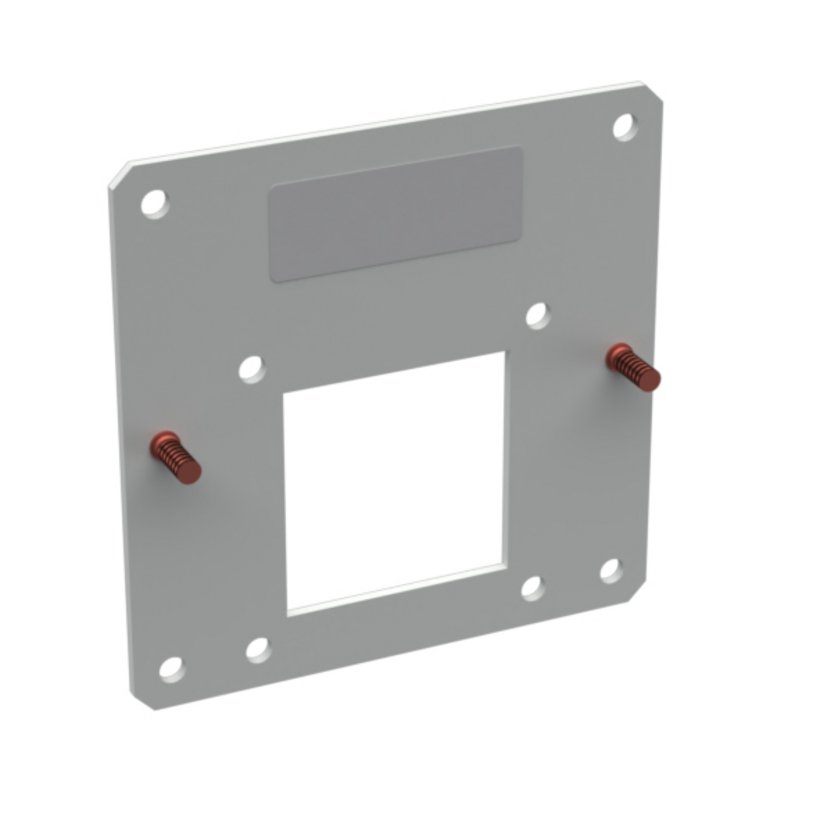

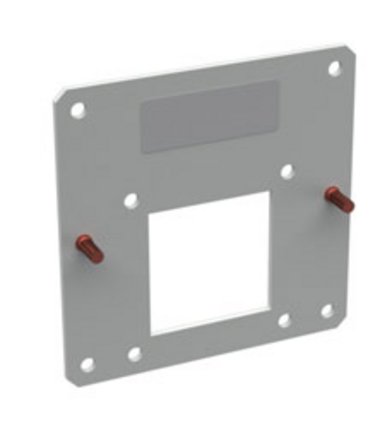

Reduction Flange
- UL Type 12 and Type 3R
- Very sturdy
Product description
For use with cable duct system type 1201 with UL, Type 12 or 3R.
For the reduction or increase from one duct size to the next one.
Equipotential bonding is realized directly via bolts and/or cables for protective ground connection (see accessories).
Technical Data
-
Order No.: 1201-0510-01-00
-
Type: Cable duct system type 1201
-
Cross-section: from 100 x 100 to 60 x 60
-
Approval: UL
-
Protection type: Type 12, 3R
-
Material: Sheet steel
-
Surface: Powder coated RAL 7035, smooth structure, silk gloss
-
Weight: 0.4 kg
-
Protective ground connection: according to DIN EN 61439-1
- 1 piece
1201-0106-00-06
Rubber Gasket for Cable Duct System Type 1201
Type
Cable duct system type 1201
Cross section
60 x 60 mm/2,36 x 2,36"
Material
NBR (Nitrile Butadiene Rubber)
Surface
black
3080-9036-06-10
Cable for Protective Ground Connection
Conductor cross-sections
6 mm2/0.01 in2
Dimensions
Length: 120 mm/4,72"
Drilling diameter d
Ø=6,4 mm
Material
H07V-K
1201-0200-00-06
Screw with Nut
Thread
M6
Length of thread L
16 mm
Material
Sheet steel
Surface
Galvanized
1201-0100-80-00
Screw Nut Washer
Thread
M6
Length of thread L
20 mm
Material
Sheet steel
Surface
Galvanized
1201-0106-05-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
60 x 60 mm/2,36 x 2,36"
Length
500 mm
Approval
UL
Material
Sheet steel
1201-0106-10-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
60 x 60 mm/2,36 x 2,36"
Length
1000 mm
Approval
UL
Material
Sheet steel
1201-0106-20-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
60 x 60 mm/2,36 x 2,36"
Length
2000 mm
Approval
UL
Material
Sheet steel
1201-0106-25-00
Cable Duct kürzbar
Type
Cable duct system type 1201
Cross section
60 x 60 mm/2,36 x 2,36"
Length
2500 mm
Material
Sheet steel
1201-0110-05-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
100 x 100 mm/3,94 x 3,94"
Length
500 mm
Approval
UL
Material
Sheet steel
1201-0110-10-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
100 x 100 mm/3,94 x 3,94"
Length
1000 mm
Approval
UL
Material
Sheet steel
1201-0110-20-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
100 x 100 mm/3,94 x 3,94"
Length
2000 mm
Approval
UL
Material
Sheet steel
1201-0110-25-00
Cable Duct kürzbar
Type
Cable duct system type 1201
Cross section
100 x 100 mm/3,94 x 3,94"
Length
2500 mm
Material
Sheet steel
