1201-0106-00-22

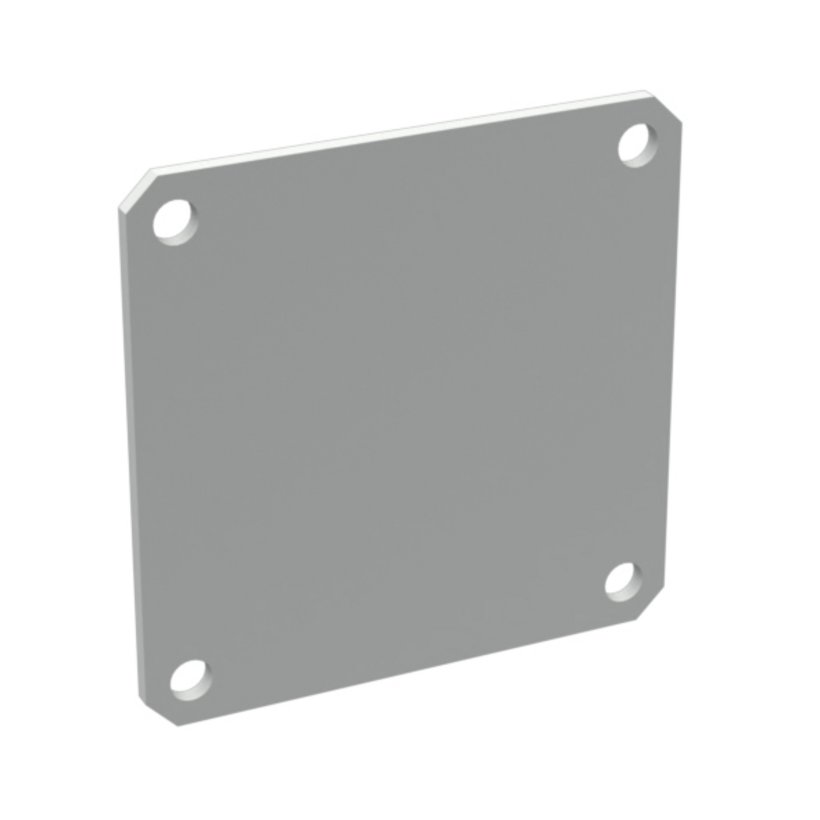

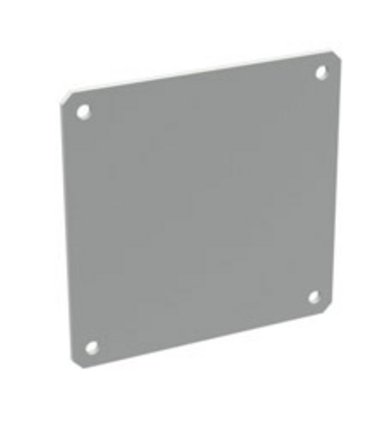

End Plate
Product description
End plate, screw-type attachment, for closing open cross-sections of cable duct system type 1201.
Technical data
-
Article number: 1201-0106-00-22
-
type: Cable duct system type 1201
-
Cross section: 60 x 60 mm/2,36 x 2,36"
-
Material: Sheet steel
-
Surface: Powder coated RAL 7035, smooth structure, silk gloss
-
Sheet thickness: 3 mm/0,12"
-
Weight: 0.2 kg
Notice
- Use the connection screws type 1201-0100-80-00 to realize equipotential bonding(see accessories).
- Seal the flange connectors with a rubber gasket (rubber gasket, see accessories).
- 1 Piece
1201-0106-00-06
Rubber Gasket for Cable Duct System Type 1201
Type
Cable duct system type 1201
Cross section
60 x 60 mm/2,36 x 2,36"
Material
NBR (Nitrile Butadiene Rubber)
Surface
black
1201-0100-80-00
Screw Nut Washer
Thread
M6
Length of thread L
20 mm
Material
Sheet steel
Surface
Galvanized
1201-0106-05-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
60 x 60 mm/2,36 x 2,36"
Length
500 mm
Approval
UL
Material
Sheet steel
1201-0106-10-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
60 x 60 mm/2,36 x 2,36"
Length
1000 mm
Approval
UL
Material
Sheet steel
1201-0106-20-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
60 x 60 mm/2,36 x 2,36"
Length
2000 mm
Approval
UL
Material
Sheet steel
1201-0106-25-00
Cable Duct kürzbar
Type
Cable duct system type 1201
Cross section
60 x 60 mm/2,36 x 2,36"
Length
2500 mm
Material
Sheet steel
Mounting instructions:
CAD data and other illustrations:
