1201-0106-20-00

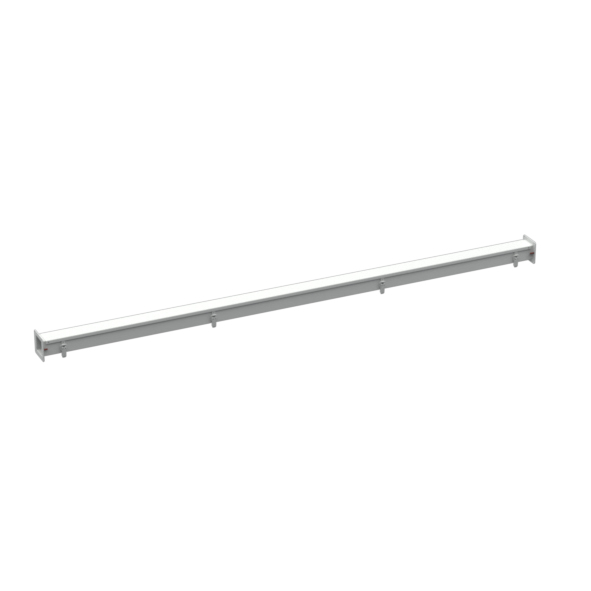

Cable Duct
- UL Type 12
- Protection class IP65
- Very sturdy
- Captive, hinged cover
Product description
The up to 2 m/78,74" long straight cable ducts are equipped with two welded flanges.
The hinged cover can be opened by 180° and closed tightly with locks.
Equipotential bonding is realized directly via bolts and/or cables for protective ground connection (see accessories).
Technical Data
-
PRODUCT NUMBER: 1201-0106-20-00
-
Type: Cable duct system type 1201
-
Cross-section: 60 x 60 mm/2,36 x 2,36"
-
Length: 2000 mm
-
Approval: UL
-
Protection type: IP65, Type 12
-
Material: Sheet steel
-
Surface: Powder coated RAL 7035, smooth structure, silk gloss
-
Sheet thickness: Duct: 1,5 mm
Flange: 3 mm -
Weight: 7 kg
-
Protective ground connection: according to DIN EN 61439-1
Notice
- Seal the flange connectors with a rubber gasket (rubber gasket, see accessories).
- Other lengths and UL Type 3R are available upon request.
- 1 piece
- 1 flat gasket for the cover is loosely enclosed
1201-0106-00-06
Rubber Gasket for Cable Duct System Type 1201
Type
Cable duct system type 1201
Cross section
60 x 60 mm/2,36 x 2,36"
Material
NBR (Nitrile Butadiene Rubber)
Surface
black
1201-0510-01-00
Reduction Flange
Type
Cable duct system type 1201
Cross section
from 100 x 100 to 60 x 60
Approval
UL
Material
Sheet steel
1201-1106-01-50
Bellow
Type
Cable duct system type 1201
Cross section
60 x 60 mm/2,36 x 2,36"
Material
Bellow: Highly flexible PVC, black
Flange: Sheet steel, powder coated RAL 7035, smooth structure, silk gloss
Flange: Sheet steel, powder coated RAL 7035, smooth structure, silk gloss
1201-1206-03-50
Telescopic Section
Type
Cable duct system type 1201
Cross section
60 x 60 mm/2,36 x 2,36"
Dimensions
Length: 47 mm - 300 mm
Material
Sheet steel
1201-0106-00-22
End Plate
Type
Cable duct system type 1201
Cross section
60 x 60 mm/2,36 x 2,36"
Material
Sheet steel
Surface
Powder coated RAL 7035, smooth structure, silk gloss
1201-1406-01-00
Mounting Brackets
Type
Cable duct system type 1201
Cross section
60 x 60 mm/2,36 x 2,36"
Material
Sheet steel
Surface
Powder coated RAL 7035, smooth structure, silk gloss
1201-0200-00-06
Screw with Nut
Thread
M6
Length of thread L
16 mm
Material
Sheet steel
Surface
Galvanized
1201-0100-80-00
Screw Nut Washer
Thread
M6
Length of thread L
20 mm
Material
Sheet steel
Surface
Galvanized
1201-0350-00-00
Quick Release Buckle Latch
Type
Cable duct system type 1201
Surface
untreated
Sheet metal thickness
20 ga
3080-0102-18-20
Rubber Gasket for Cable Duct System Type 1201
Type
Cable duct system type 1201
Dimensions
Width: 11 mm
Height: 4 mm
Height: 4 mm
Type rating
UL Type 12, 3R
