Bellow

1201-1106-01-50

Bellow

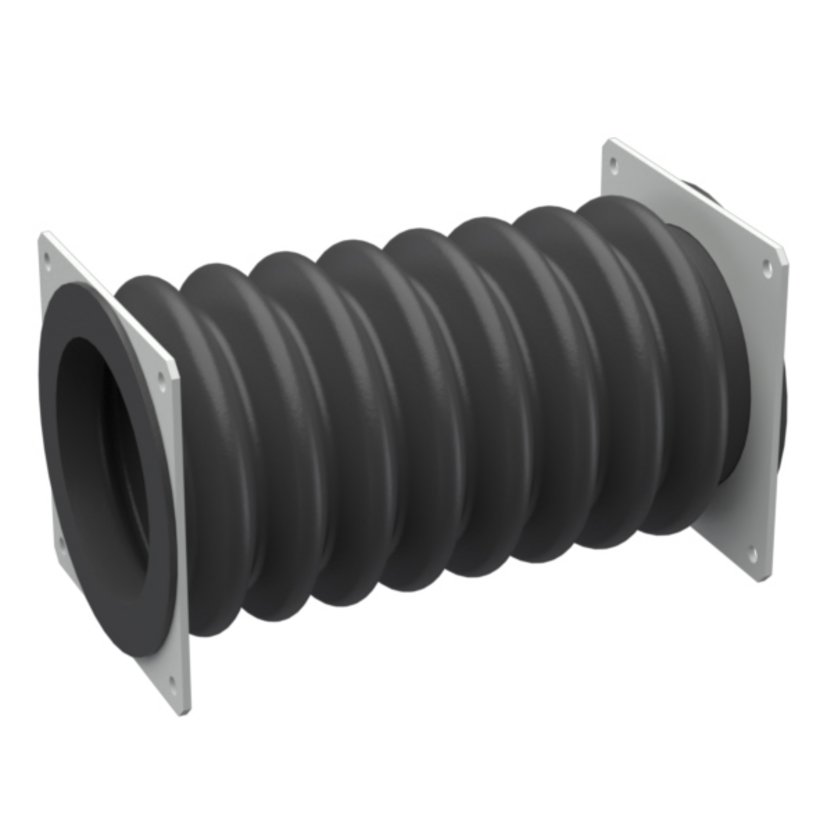

Product description

To prevent vibration transfer from the machine to the cable duct system or the control cabinet and to compensate for any existing misalignments during assembly.

Attachment with sheet steel flanges.

Technical data

  • Article number: 1201-1106-01-50
  • type: Cable duct system type 1201
  • Cross section: 60 x 60 mm/2,36 x 2,36"
  • Material: Bellow: Highly flexible PVC, black
    Flange: Sheet steel, powder coated RAL 7035, smooth structure, silk gloss
  • Sheet thickness: Flange: 3 mm
  • Weight: 0.4 kg

Notice

  • Seal the flange connectors with a rubber gasket (rubber gasket, see accessories).
  • When using cable ducts with cross-section 200 x 100 mm, the reducing flange type 1201-0520-01-00 must be ordered in addition to the bellow type 1201-1110-02-00.
  • 1 bellow with 2 flanges
Rubber Gasket for Cable Duct System Type 1201
1201-0106-00-06
Rubber Gasket for Cable Duct System Type 1201
Type
Cable duct system type 1201
Cross section
60 x 60 mm/2,36 x 2,36"
Material
NBR (Nitrile Butadiene Rubber)
Surface
black
Screw with Nut
1201-0200-00-06
Screw with Nut
Thread
M6
Length of thread L
16 mm
Material
Sheet steel
Surface
Galvanized
Screw Nut Washer
1201-0100-80-00
Screw Nut Washer
Thread
M6
Length of thread L
20 mm
Material
Sheet steel
Surface
Galvanized
Cable Duct
1201-0106-05-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
60 x 60 mm/2,36 x 2,36"
Length
500 mm
Approval
UL
Material
Sheet steel
Cable Duct
1201-0106-10-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
60 x 60 mm/2,36 x 2,36"
Length
1000 mm
Approval
UL
Material
Sheet steel
Cable Duct
1201-0106-20-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
60 x 60 mm/2,36 x 2,36"
Length
2000 mm
Approval
UL
Material
Sheet steel
Cable Duct kürzbar
1201-0106-25-00
Cable Duct kürzbar
Type
Cable duct system type 1201
Cross section
60 x 60 mm/2,36 x 2,36"
Length
2500 mm
Material
Sheet steel
CAD data and other illustrations:
Bellow
Bellow
To prevent vibration transfer from the machine to the cable duct system or the control cabinet and to compensate for any existing misalignments during assembly.
Attachment with sheet steel flanges.

Remember
Cable duct system type 1201
60 x 60 mm/2,36 x 2,36"
Bellow: Highly flexible PVC, black
Flange: Sheet steel, powder coated RAL 7035, smooth structure, silk gloss
Cable duct system type 1201
100 x 100 mm/3,94 x 3,94"
Bellow: Highly flexible PVC, black
Flange: Sheet steel, powder coated RAL 7035, smooth structure, silk gloss
Cable duct system type 1201
150 x 150 mm/5,91 x 5,91"
Bellow: Highly flexible PVC, black
Flange: Sheet steel, powder coated RAL 7035, smooth structure, silk gloss
