1201-0106-00-03
Elbow
- UL Type 12
- Protection class IP65
- Very sturdy
Product description

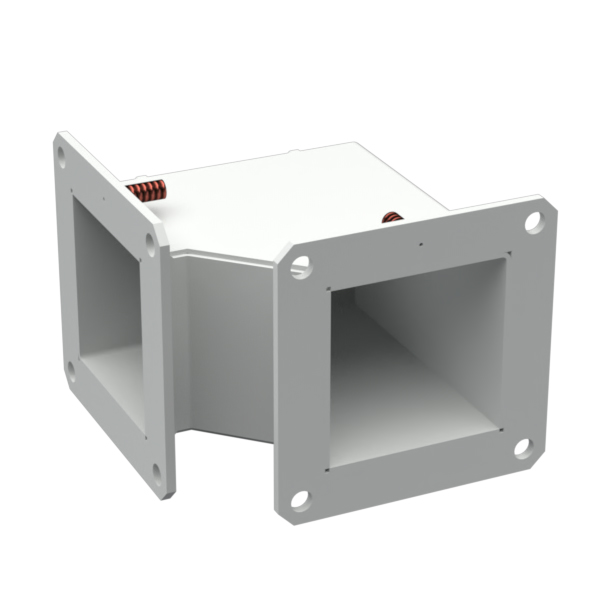

Elbows are equipped with 2 welded flanges and are used to change the installation direction.
Equipotential bonding is realized directly via bolts and/or cables for protective ground connection (see accessories).
Technical Data
-
PRODUCT NUMBER: 1201-0106-00-03
-
Type: Cable duct system type 1201
-
Cross-section: 60 x 60 mm/2,36 x 2,36"
-
Angle: 90°
-
Laying direction: variable
-
Approval: UL
-
Protection type: IP65, Type 12
-
Material: Sheet steel
-
Surface: Powder coated RAL 7035, smooth structure, silk gloss
-
Sheet thickness: Duct: 1,5 mm
Flange: 3 mm -
Weight: 0.58 kg
-
Protective ground connection: according to DIN EN 61439-1
Notice
- Seal the flange connectors with a rubber gasket (rubber gasket, see accessories).
- UL Type 3R is available upon request.
- 1 piece
1201-0106-00-06
Rubber Gasket for Cable Duct System Type 1201
Type
Cable duct system type 1201
Cross section
60 x 60 mm/2,36 x 2,36"
Material
NBR (Nitrile Butadiene Rubber)
Surface
black
1201-0200-00-06
Screw with Nut
Thread
M6
Length of thread L
16 mm
Material
Sheet steel
Surface
Galvanized
1201-0100-80-00
Screw Nut Washer
Thread
M6
Length of thread L
20 mm
Material
Sheet steel
Surface
Galvanized
