Flange

1201-0106-00-05

Flange

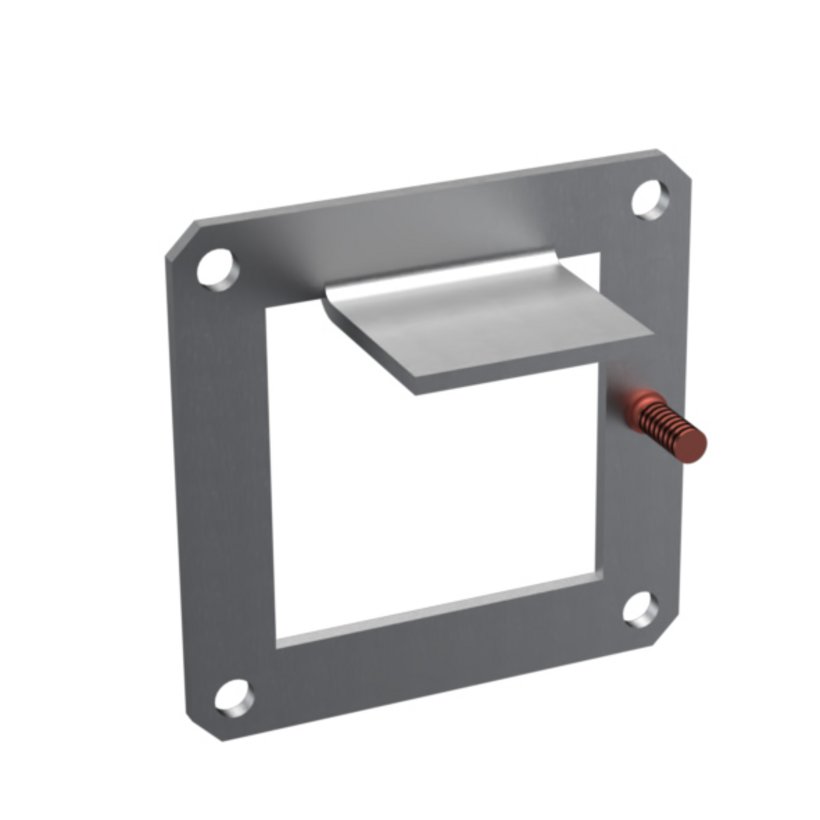

Product description

For intermediate lengths, if the duct is cut to length by the customer or for straight cable ducts, which can be cut to length.

This weld-on flange is used to connect other fittings of the cable duct system type 1201.

Equipotential bonding is realized directly via bolts and/or cables for protective ground connection (see accessories).

Technical data

  • Article number: 1201-0106-00-05
  • type: Cable duct system type 1201
  • Cross section: 60 x 60 mm/2,36 x 2,36"
  • Material: Sheet steel
  • Surface: Untreated, greased
  • Sheet thickness: 3 mm/0,12"
  • Weight: 0.1 kg
  • Protective conductor connection: according to DIN EN 61439-1

Notice

  • Seal the flange connectors with a rubber gasket (rubber gasket, see accessories).
  • 1 piece
Rubber Gasket for Cable Duct System Type 1201
1201-0106-00-06
Rubber Gasket for Cable Duct System Type 1201
Type
Cable duct system type 1201
Cross section
60 x 60 mm/2,36 x 2,36"
Material
NBR (Nitrile Butadiene Rubber)
Surface
black
Screw with Nut
1201-0200-00-06
Screw with Nut
Thread
M6
Length of thread L
16 mm
Material
Sheet steel
Surface
Galvanized
Screw Nut Washer
1201-0100-80-00
Screw Nut Washer
Thread
M6
Length of thread L
20 mm
Material
Sheet steel
Surface
Galvanized
Cable Duct kürzbar
1201-0106-25-00
Cable Duct kürzbar
Type
Cable duct system type 1201
Cross section
60 x 60 mm/2,36 x 2,36"
Length
2500 mm
Material
Sheet steel
CAD data and other illustrations:
Flange
Flange
For intermediate lengths, if the duct is cut to length by the customer or for straight cable ducts, which can be cut to length.
This weld-on flange is used to connect other fittings of the cable duct system type 1201.
Equipotential bonding is realized directly via bolts and/or cables for protective ground connection (see accessories).

Remember
Cable duct system type 1201
60 x 60 mm/2,36 x 2,36"
Sheet steel
Untreated, greased
Cable duct system type 1201
100 x 100 mm/3,94 x 3,94"
Sheet steel
Untreated, greased
Cable duct system type 1201
200 x 100 mm/7,87 x 3,94"
Sheet steel
Untreated, greased
Cable duct system type 1201
150 x 150 mm/5,91 x 5,91"
Sheet steel
Untreated, greased
