1201-1406-01-00

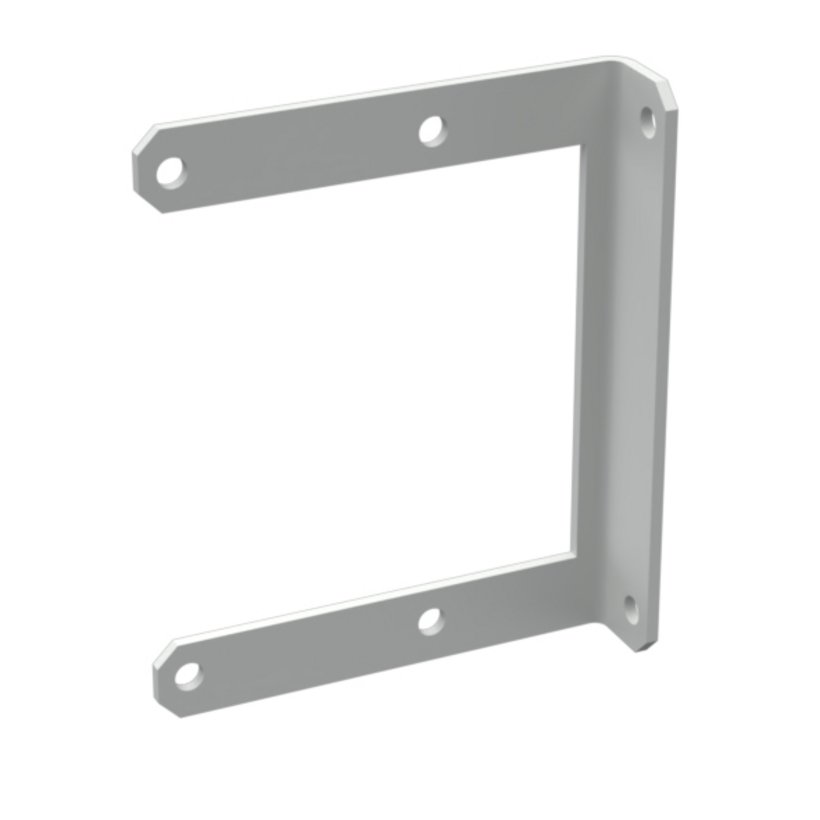

Mounting Brackets
Product description
For attachment of cable ducts with flange to walls, floors or ceilings.
Technical data
-
Article number: 1201-1406-01-00
-
type: Cable duct system type 1201
-
Cross section: 60 x 60 mm/2,36 x 2,36"
-
Material: Sheet steel
-
Surface: Powder coated RAL 7035, smooth structure, silk gloss
-
Sheet thickness: 3 mm/0,12"
- 1 piece
1201-0200-00-06
Screw with Nut
Thread
M6
Length of thread L
16 mm
Material
Sheet steel
Surface
Galvanized
1201-0205-00-06
Screw with Nut
Thread
M6
Length of thread L
16 mm
Material
Stainless steel
Surface
Unfinished
1204-9001-05-08
Screw with Nut
Thread
M5
Length of thread L
8 mm
Material
Sheet steel
Surface
Galvanized
1204-9002-04-08
Screw with Nut
Thread
M4
Length of thread L
8 mm
Material
Sheet steel
Surface
Galvanized
1207-9001-05-08
Screw with Nut
Thread
M5
Length of thread L
8 mm
Material
Stainless steel
Surface
Unfinished
1207-9002-04-08
Screw with Nut
Thread
M4
Length of thread L
8 mm
Material
Stainless steel
Surface
Unfinished
1201-0100-80-00
Screw Nut Washer
Thread
M6
Length of thread L
20 mm
Material
Sheet steel
Surface
Galvanized
1201-0105-80-00
Screw Nut Washer
Thread
M6
Length of thread L
20 mm
Material
Stainless steel
Surface
untreated
1204-9006-05-16
Screw Nut Washer
Thread
M5
Length of thread L
16 mm
Material
Sheet steel
Surface
Galvanized
1201-0106-05-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
60 x 60 mm/2,36 x 2,36"
Length
500 mm
Approval
UL
Material
Sheet steel
1201-0106-10-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
60 x 60 mm/2,36 x 2,36"
Length
1000 mm
Approval
UL
Material
Sheet steel
1201-0106-20-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
60 x 60 mm/2,36 x 2,36"
Length
2000 mm
Approval
UL
Material
Sheet steel
1201-0106-25-00
Cable Duct kürzbar
Type
Cable duct system type 1201
Cross section
60 x 60 mm/2,36 x 2,36"
Length
2500 mm
Material
Sheet steel
Mounting instructions:
CAD data and other illustrations:
