3080-0102-18-20

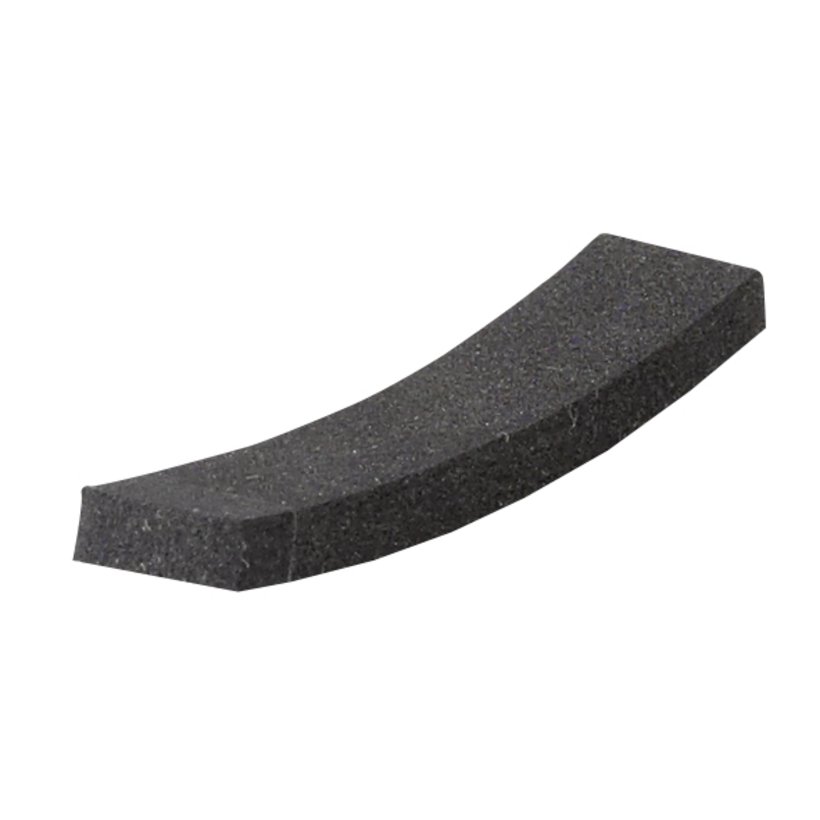

Rubber Gasket for Cable Duct System Type 1201
Product description
Self-adhesive on one side, for cover sealing of the cable duct system type 1201.
Technical Data
-
PRODUCT NUMBER: 3080-0102-18-20
-
Type: Cable duct system type 1201
-

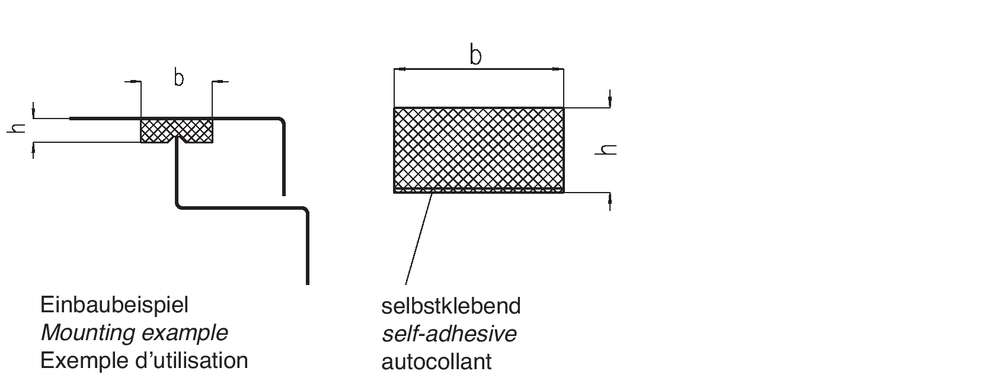

Dimension: Width: 11 mm
Height: 4 mm -
Type Rating: UL Type 12, 3R
- By the meter
1201-0106-05-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
60 x 60 mm/2,36 x 2,36"
Length
500 mm
Approval
UL
Material
Sheet steel
1201-0106-10-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
60 x 60 mm/2,36 x 2,36"
Length
1000 mm
Approval
UL
Material
Sheet steel
1201-0106-20-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
60 x 60 mm/2,36 x 2,36"
Length
2000 mm
Approval
UL
Material
Sheet steel
1201-0106-25-00
Cable Duct kürzbar
Type
Cable duct system type 1201
Cross section
60 x 60 mm/2,36 x 2,36"
Length
2500 mm
Material
Sheet steel
1201-0110-05-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
100 x 100 mm/3,94 x 3,94"
Length
500 mm
Approval
UL
Material
Sheet steel
1201-0110-10-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
100 x 100 mm/3,94 x 3,94"
Length
1000 mm
Approval
UL
Material
Sheet steel
1201-0110-20-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
100 x 100 mm/3,94 x 3,94"
Length
2000 mm
Approval
UL
Material
Sheet steel
1201-0110-25-00
Cable Duct kürzbar
Type
Cable duct system type 1201
Cross section
100 x 100 mm/3,94 x 3,94"
Length
2500 mm
Material
Sheet steel
1201-0112-05-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
200 x 100 mm/7,87 x 3,94"
Length
500 mm
Approval
UL
Material
Sheet steel
1201-0112-10-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
200 x 100 mm/7,87 x 3,94"
Length
1000 mm
Approval
UL
Material
Sheet steel
1201-0112-20-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
200 x 100 mm/7,87 x 3,94"
Length
2000 mm
Approval
UL
Material
Sheet steel
1201-0112-25-00
Cable Duct kürzbar
Type
Cable duct system type 1201
Cross section
200 x 100 mm/7,87 x 3,94"
Length
2500 mm
Material
Sheet steel
1201-0115-05-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
150 x 150 mm/5,91 x 5,91"
Length
500 mm
Approval
UL
Material
Sheet steel
1201-0115-10-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
150 x 150 mm/5,91 x 5,91"
Length
1000 mm
Approval
UL
Material
Sheet steel
1201-0115-20-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
150 x 150 mm/5,91 x 5,91"
Length
2000 mm
Approval
UL
Material
Sheet steel
1201-0115-25-00
Cable Duct kürzbar
Type
Cable duct system type 1201
Cross section
150 x 150 mm/5,91 x 5,91"
Length
2500 mm
Material
Sheet steel
Assembly instructions:
CAD data and other file formats:
