1201-0112-00-07

  • UL Type 12
  • Protection class IP65
  • Very sturdy

Product description

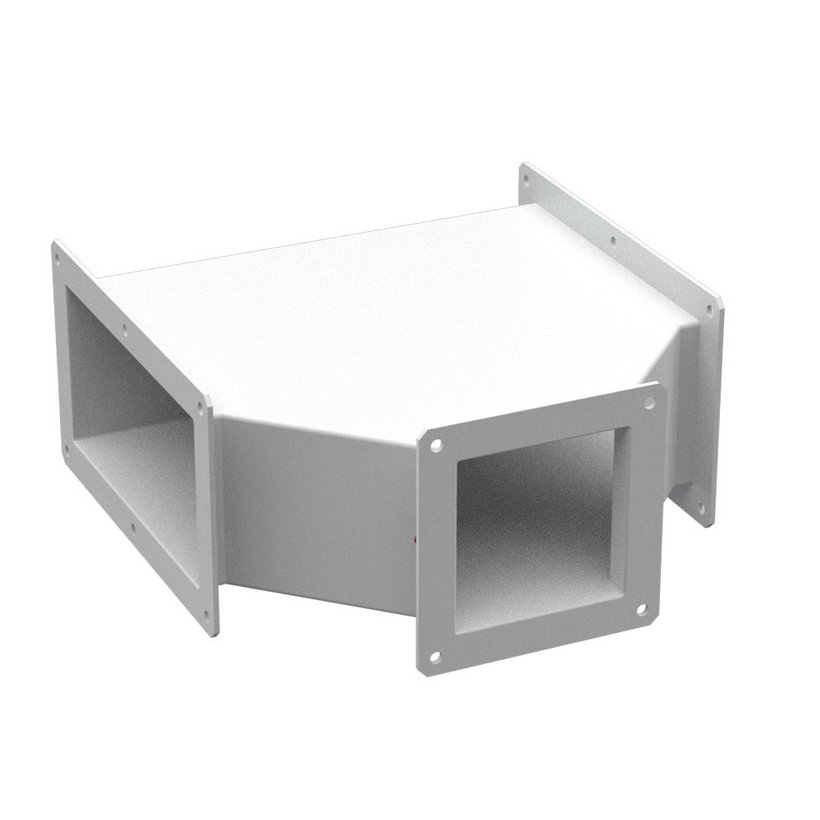

T-sections are used for cable routing in various directions. They are equipped with welded flanges at each outlet.

Equipotential bonding is realized directly via bolts and/or cables for protective ground connection (see accessories).

Technical data

  • Article number: 1201-0112-00-07
  • type: Cable duct system type 1201
  • PRODUKTGRUPPENNAMEEBENE4: Accessories Type 1201
  • Cross section: 200 x 100 mm/7,87 x 3,94"
  • Authorization: UL
  • Protection class: IP65, Type 12
  • Material: Sheet steel
  • Surface: Powder coated RAL 7035, smooth structure, silk gloss
  • Sheet thickness: Duct: 1,5 mm
    Flange: 3 mm
  • Protective conductor connection: according to DIN EN 61439-1

Notice

  • Seal the flange connectors with a rubber gasket (rubber gasket, see accessories).
  • UL Type 3R is available upon request.
  • 1 piece
Rubber Gasket for Cable Duct System Type 1201
1201-0112-00-06
Rubber Gasket for Cable Duct System Type 1201
Type
Cable duct system type 1201
Cross section
200 x 100 mm/7,87 x 3,94"
Material
NBR (Nitrile Butadiene Rubber)
Surface
black
End Plate
1201-0112-00-22
End Plate
Type
Cable duct system type 1201
Cross section
200 x 100 mm/7,87 x 3,94"
Material
Sheet steel
Surface
Powder coated RAL 7035, smooth structure, silk gloss
Screw with Nut
1201-0200-00-06
Screw with Nut
Thread
M6
Length of thread L
16 mm
Material
Sheet steel
Surface
Galvanized
Screw Nut Washer
1201-0100-80-00
Screw Nut Washer
Thread
M6
Length of thread L
20 mm
Material
Sheet steel
Surface
Galvanized
Cable Duct
1201-0112-05-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
200 x 100 mm/7,87 x 3,94"
Length
500 mm
Approval
UL
Material
Sheet steel
Cable Duct
1201-0112-10-00
Cable Duct
Type
Cable duct system type 1201
Cross-section
200 x 100 mm/7,87 x 3,94"
Length
1000 mm
Approval
UL
Material
Sheet steel
CAD data and other illustrations:
T-sections are used for cable routing in various directions. They are equipped with welded flanges at each outlet.
Equipotential bonding is realized directly via bolts and/or cables for protective ground connection (see accessories).

Art No.
Type
Cross section
Approval
Remember
Cable duct system type 1201
200 x 100 mm/7,87 x 3,94"
UL
