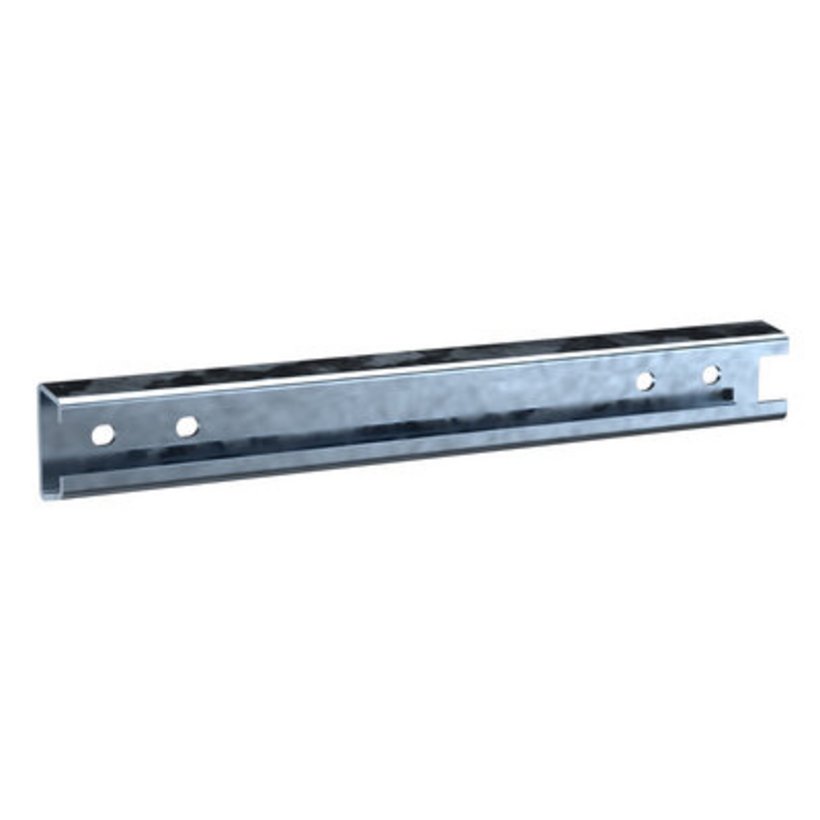

Universal cable support rail
Product description
For cabinets and 7.87" high bases
Cable support rails for stress relief of cable wires.
Technical data
-
Article number: 0396-7082-04-64
-
Dimensions: suitable for width : 600 mm
-
Dimensions: 35x18 mm
-
Material: Sheet steel
-
Size: Length : 464 mm
-
Weight: 0.5 kg
-
Sheet thickness: 2 mm
Notice
- For H390 cabinets W-1600 mm/62.99" and W-2000mm /78.74" 2 rails W-800 mm/31.50" or W-1000 mm/39.37" as well as 2 attachment bracket sets are to be ordered. For mounting in bases W-1600/2000 mm 62.99"/78.74", H-200 mm/7.87" the matching base crossbar D-400/500/600 mm/15.75"/19.68"/23.62" is required.
- The rail can also be screwed directly onto the corner parts in the base using M5x10 self-tapping screws, type 3011-9010-75-16, which corresponds to the rearmost position of the mounting plate in the cabinet!
- 1 rail without mounting hardware
