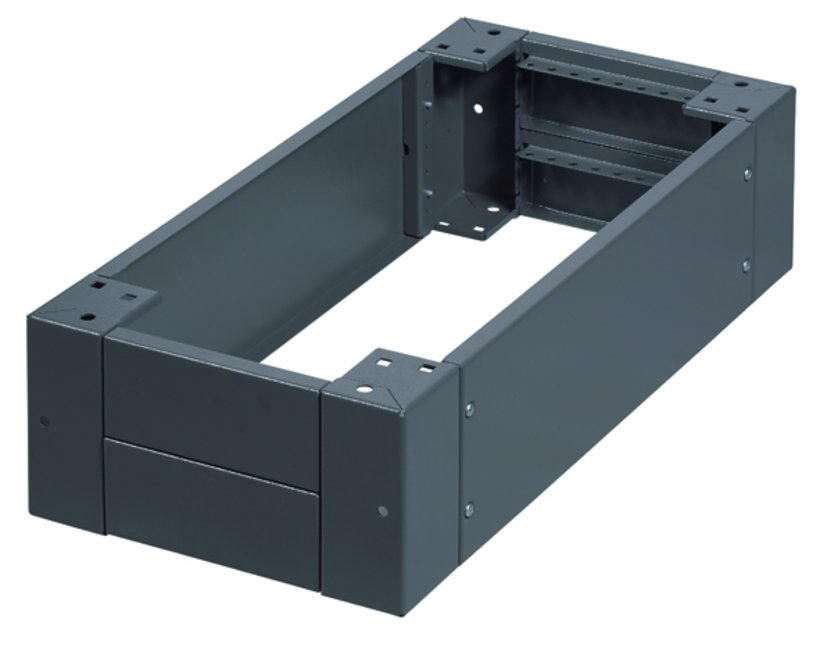

Bases height 200 mm for cabinets type H390 and H395

0396.6002.40.17

Bases height 200 mm for cabinets type H390 and H395

  • Quick and easy installation
  • For free-standing single and ganged-together modular cabinets
  • High lifting capacity

Product description

Bases for installation under cabinets.

Front & back pieces are removeable after assembly for easy access to underside of cabinet.

Two-level perforation on the inside for mounting of cable support rails. For ganged together cabinets side-pieces can be removed for end-to-end cable installations. Corner pieces are already pre-assembled with front and back pieces. Side pieces can be installed without tools.

Technical Data

  • Order No.: 0396.6002.40.17
  • Dimension: Suitabel for width : 600 mm  Suitable for depth : 400 mm
  • Type: closed version
  • Surface: Powder coated RAL 7022, texture finish
  • Material: Sheet steel
    Corner section: 2.5 mm
    Covers and cross sections: 1.5 mm
  • Weight: 9.6 kg
  • Base depth (t): 350 mm

Notice

  • To achieve highest stability for transportation purposes, the side pieces can be screwed in and the corner pieces have a second mounting hole that can be utilized.
  • Bases with order numbers ending in “-37” are equipped with air vents for improved air circulation.
  • If used with cabinet H390, an offset of 25 mm will be in the back.
  • If bases are ganged together, a base cross rail is required for mounting of cable support rails.
  • From W-600mm cable entry with brush strip (clearance 270x48mm) is available upon request.
  • Corner pieces with front and back pieces pre-assembled and side pieces (1 packet each). Mounting hardware and installation instructions.
