Base height 7.87" only for cabinets type H390 (flush with rear side)
- For free-standing single and ganged-together modular cabinets
- Rugged U-profiles
- High lifting capacity
Product description

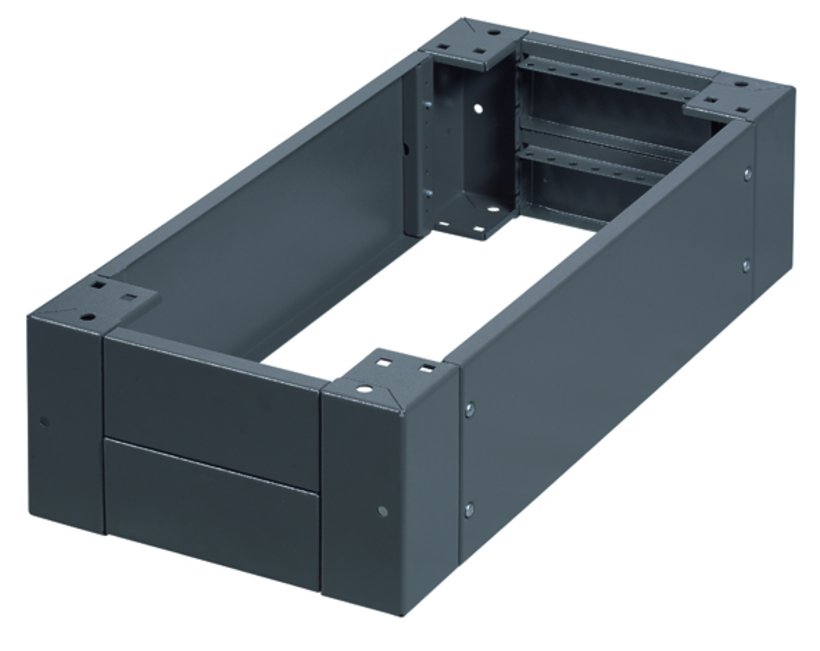

Bases for installation under cabinets. Two-level perforation on the inside for mounting of cable support rails. For ganged together cabinets side-pieces can be removed for end-to-end cable installations. Corner pieces are already pre-assembled with front and back pieces. Side pieces can be installed without tools. Front & back pieces are removeable after assembly for easy access to underside of cabinet.
Technical data
-
Article number: 0396.6002.41.17
-
PRODUKTGRUPPENNAMEEBENE4: Accessories control cabinets outside
-
PRODUKTGRUPPENNAMEEBENE5: Bases
-
Dimensions: suitable for width : 600 mm suitable for depth : 400 mm
-
Variant: 23.62" x X x 15.75"
-
Surface: Powder coated RAL 7022, texture finish
-
Material: Sheet steel
-
Base depth (t): 375 mm
Notice
- Optional bolting of the cross sections and use of the second attachment hole in the corner section provide maximum stability during transport.
- For modular base assembly, a lateral base rail is required to mount the cable support rail, from width = 1600 mm / 62.99" we recommend the use of this cable support rail.
- 1600/200 mm / 62.99"/78.74" wide bases are delivered in 2 parcels (1 parcel with covers and corner sections and 1 parcel with cross sections).
- From W-600 mm / 23.62" a cable entry plate with brush strip (clearance 270x48 mm / 10.62x1.88") is available upon request.
- Bases with widths 1600/2000 consist of 2 packets each for corner pieces with front and back plates and the side pieces.
0396-6002-01-07
Base cover 100 mm/3.94" high
Suitable for width
600 mm
Material
Sheet steel
Sheet metal thickness
1.5 mm
0396-0000-40-07
Base Crossbar
Suitable for depth
400 mm
Material
Sheet steel
Suitable for
Base H-200 mm high
0390-6010-40-07
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0390-6010-40-17
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0390-6012-40-07
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0390-6012-40-17
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0390-6014-40-07
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
1400 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0390-6014-40-17
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
1400 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0390-6016-40-07
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
1600 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0390-6016-40-17
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
1600 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0390-6018-40-07
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
1800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0390-6018-40-17
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
1800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0390-6020-40-07
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0390-6020-40-17
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
