0376.6002.40.11

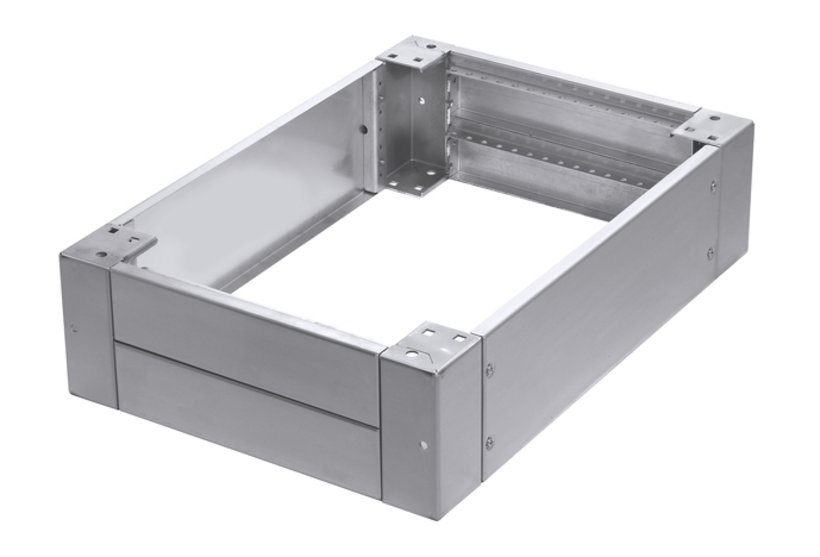

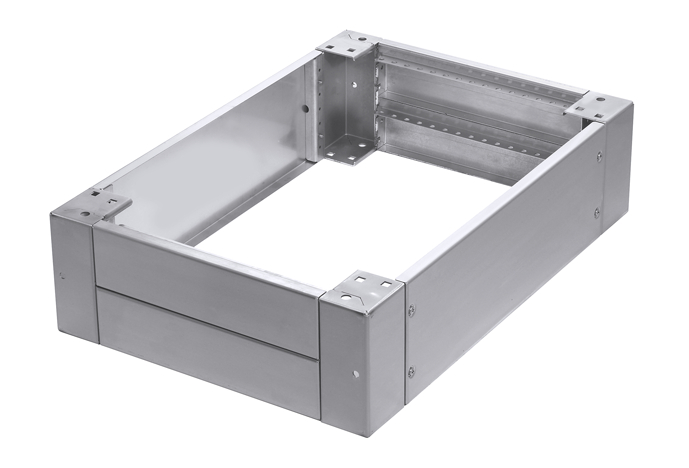

Base height 200 mm/7.87" for cabinets type H370 and H375
- Quick and easy installation
- For free-standing single and ganged-together modular cabinets
- High lifting capacity
Product description
Base for installation under cabinets. For ganged-together modular H375 cabinets the side panels are not installed to get a continuous room for cable distribution.
Technical data
-
Article number: 0376.6002.40.11
-
PRODUKTGRUPPENNAMEEBENE4: Accessories control cabinets outside
-
PRODUKTGRUPPENNAMEEBENE5: Bases
-
Dimensions: suitable for width : 600 mm suitable for depth : 400 mm
-
Variant: 23.62" x X x 15.75"
-
Surface: Externally brushed
-
Material: Stainless steel no. 1.4301
-
Sheet thickness: Corner pieces 2.5 mm/12 ga
Aperture 1.5 mm/16 ga -
Base depth (t): 350 mm
Notice
- Vertical panels and corner sections pre-assembled, with sides placed onto bolts and mounting hardware.
0376-6002-01-01
Base cover 100 mm/3.94" high for cabinets type H375
Suitable for width
600 mm
Material
Stainless steel no. 1.4301
0376-0000-40-01
Lateral base rail type 0376
Suitable for depth
400 mm
Material
Stainless steel no. 1.4301
Suitable for console type
for H375
0370-6010-40-00
Free-Standing cabinets Stainless steel H370, single door
Width
600 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP56
Type 1, 12
Type 1, 12
Approval
cULus
0370-6010-40-10
Free-Standing cabinets Stainless steel H370, single door
Width
600 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP56
Type 1, 12
Type 1, 12
Approval
cULus
0370-6012-40-00
Free-Standing cabinets Stainless steel H370, single door
Width
600 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP56
Type 1, 12
Type 1, 12
Approval
cULus
0370-6012-40-10
Free-Standing cabinets Stainless steel H370, single door
Width
600 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP56
Type 1, 12
Type 1, 12
Approval
cULus
0370-6014-40-00
Free-Standing cabinets Stainless steel H370, single door
Width
600 mm
Height
1400 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP56
Type 1, 12
Type 1, 12
Approval
cULus
0370-6014-40-10
Free-Standing cabinets Stainless steel H370, single door
Width
600 mm
Height
1400 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP56
Type 1, 12
Type 1, 12
Approval
cULus
0370-6016-40-00
Free-Standing cabinets Stainless steel H370, single door
Width
600 mm
Height
1600 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP56
Type 1, 12
Type 1, 12
Approval
cULus
0370-6016-40-10
Free-Standing cabinets Stainless steel H370, single door
Width
600 mm
Height
1600 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP56
Type 1, 12
Type 1, 12
Approval
cULus
0370-6018-40-00
Free-Standing cabinets Stainless steel H370, single door
Width
600 mm
Height
1800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP56
Type 1, 12
Type 1, 12
Approval
cULus
0370-6018-40-10
Free-Standing cabinets Stainless steel H370, single door
Width
600 mm
Height
1800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP56
Type 1, 12
Type 1, 12
Approval
cULus
0370-6020-40-00
Free-Standing cabinets Stainless steel H370, single door
Width
600 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP56
Type 1, 12
Type 1, 12
Approval
cULus
0370-6020-40-10
Free-Standing cabinets Stainless steel H370, single door
Width
600 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP56
Type 1, 12
Type 1, 12
Approval
cULus
0375-6010-40-00
Modular cabinets Stainless steel H375, single door
Width
600 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0375-6010-40-10
Modular cabinets Stainless steel H375, single door
Width
600 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0375-6012-40-00
Modular cabinets Stainless steel H375, single door
Width
600 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0375-6012-40-10
Modular cabinets Stainless steel H375, single door
Width
600 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0375-6014-40-00
Modular cabinets Stainless steel H375, single door
Width
600 mm
Height
1400 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0375-6014-40-10
Modular cabinets Stainless steel H375, single door
Width
600 mm
Height
1400 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0375-6018-40-00
Modular cabinets Stainless steel H375, single door
Width
600 mm
Height
1800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0375-6018-40-10
Modular cabinets Stainless steel H375, single door
Width
600 mm
Height
1800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0375-6020-40-00
Modular cabinets Stainless steel H375, single door
Width
600 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0375-6020-40-10
Modular cabinets Stainless steel H375, single door
Width
600 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
Mounting instructions:
CAD data and other illustrations:
Contact
Find your personal point of contact
We are happy to help you.
The best control cabinets and enclosures are not produced on an assembly line, but through close dialog with our customers. Are you ready to begin?
Then contact your personal häwa consultant today.
