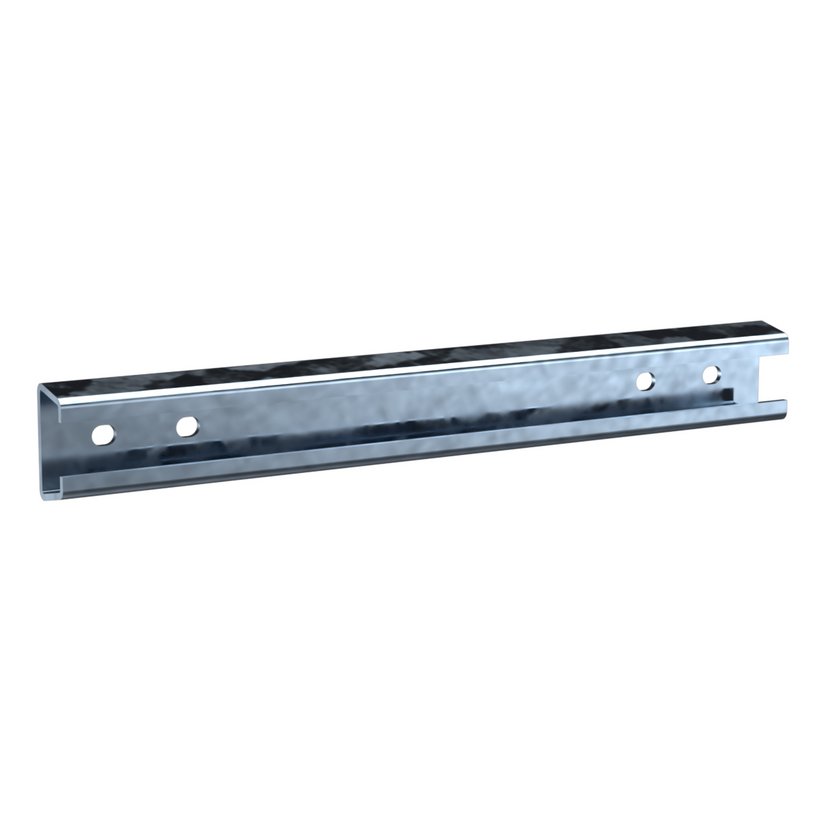

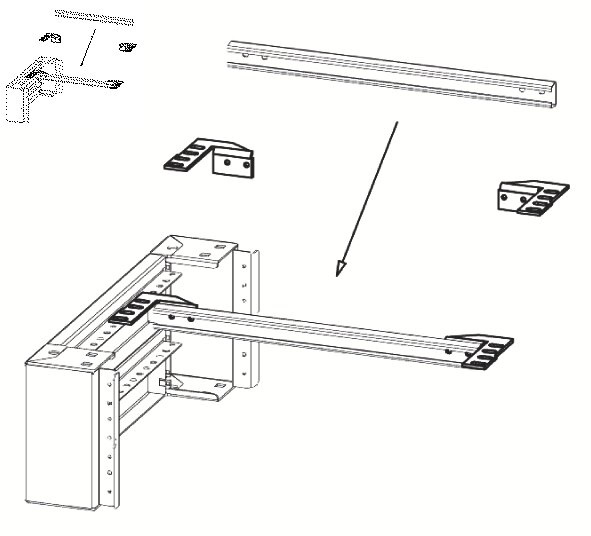

Universal cable support rail
Product description
For cabinets and 7.87" high bases
Cable support rails for stress relief of cable wires.
Technical Data
-
Order No.: 0396-7082-02-64
-
Dimension: Suitabel for width : 400 mm
-
Dimension: 35 x 18 mm
-
Material: Sheet steel
-
Size: Length : 264 mm
-
Weight: 0.3 kg
-
Sheet thickness: 2 mm

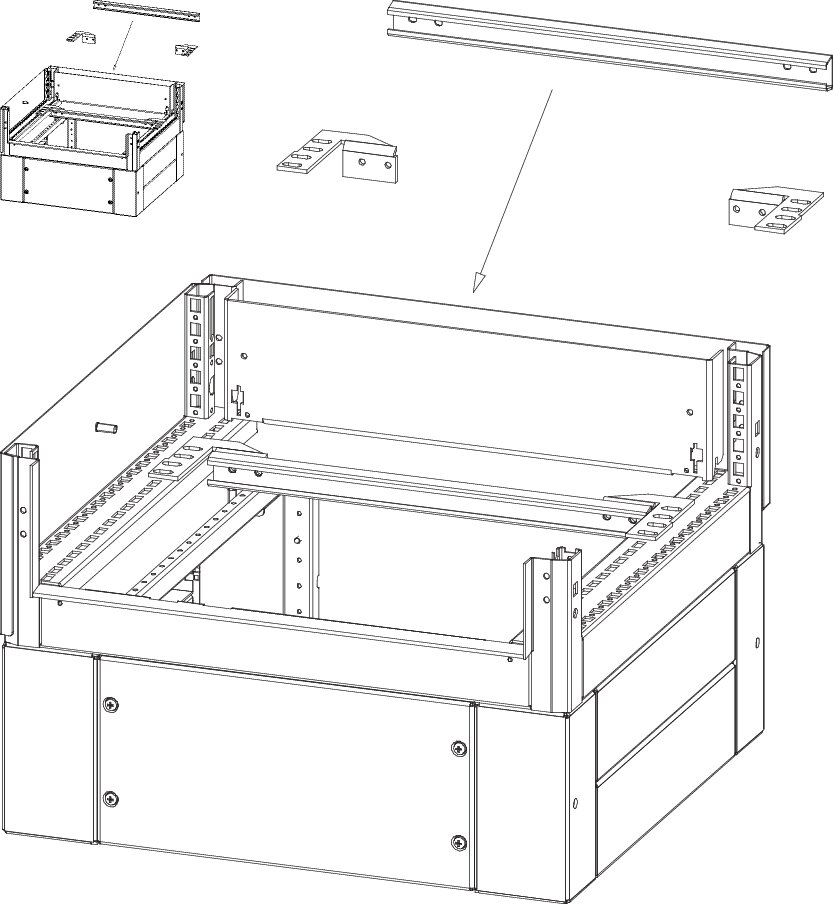

Notice
- For H390 cabinets W-1600 mm/62.99" and W-2000mm /78.74" 2 rails W-800 mm/31.50" or W-1000 mm/39.37" as well as 2 attachment bracket sets are to be ordered. For mounting in bases W-1600/2000 mm 62.99"/78.74", H-200 mm/7.87" the matching base crossbar D-400/500/600 mm/15.75"/19.68"/23.62" is required.
- The rail can also be screwed directly onto the corner parts in the base using M5x10 self-tapping screws, type 3011-9010-75-16, which corresponds to the rearmost position of the mounting plate in the cabinet!
- 1 rail without mounting hardware
0395-4018-50-07
Cabinet for Plug Mounting Sheet steel H395
Width
400 mm
Height
1800 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-4018-60-07
Cabinet for Plug Mounting Sheet steel H395
Width
400 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-4020-50-07
Cabinet for Plug Mounting Sheet steel H395
Width
400 mm
Height
2000 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-4020-60-07
Cabinet for Plug Mounting Sheet steel H395
Width
400 mm
Height
2000 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0396.4002.50.17
Bases height 200 mm for cabinets type H390 and H395
Suitable for width
400 mm
Suitable for depth
500 mm
Material
Sheet steel
Corner section: 2.5 mm
Covers and cross sections: 1.5 mm
Corner section: 2.5 mm
Covers and cross sections: 1.5 mm
Socket size
450 mm
Type
closed version
0396.4002.60.17
Bases height 200 mm for cabinets type H390 and H395
Suitable for width
400 mm
Suitable for depth
600 mm
Material
Sheet steel
Corner section: 2.5 mm
Covers and cross sections: 1.5 mm
Corner section: 2.5 mm
Covers and cross sections: 1.5 mm
Socket size
550 mm
Type
closed version
