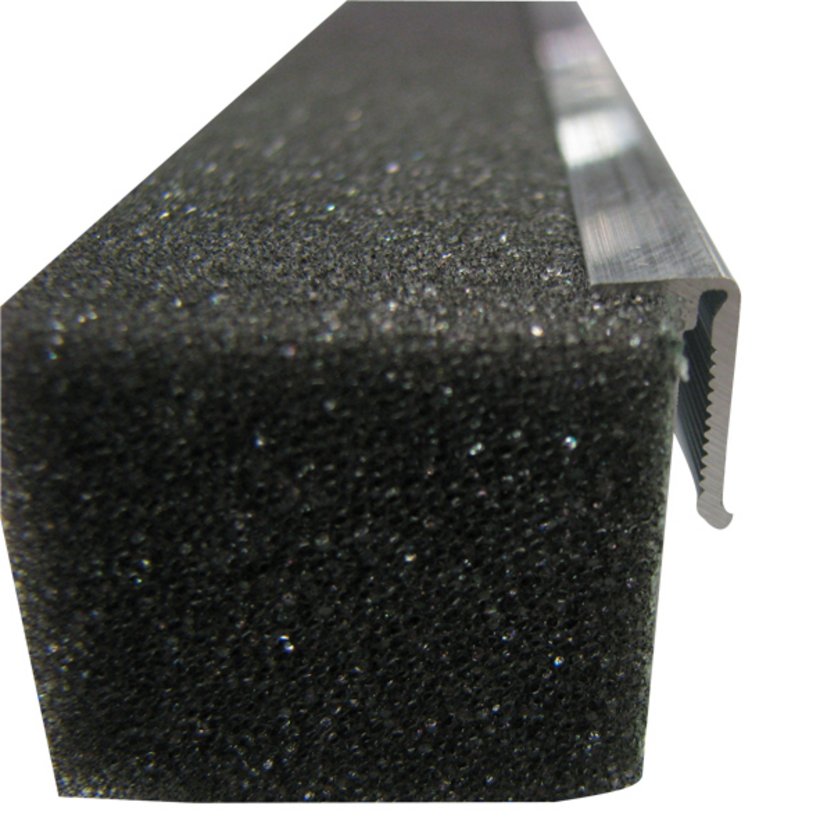

Rubber clamps for cable entry plates

0396-7060-00-72

Rubber clamps for cable entry plates

Product description

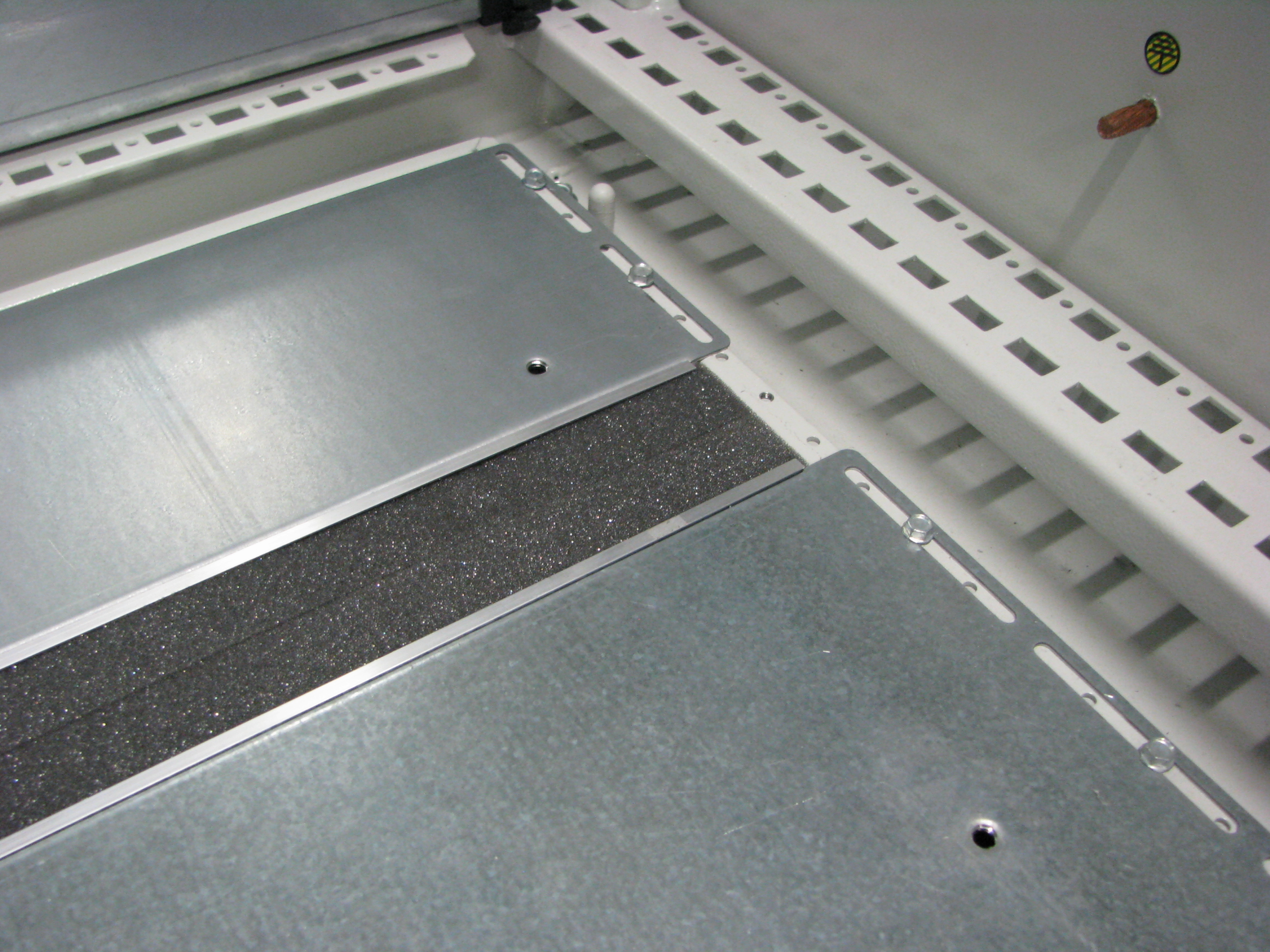

Divided cable entry plates permit cable entry without drilling of holes.

Particularly suitable for same cable diameters.

Technical Data

  • Order No.: 0396-7060-00-72
  • Dimension: Suitabel for width : 600 mm
  • Fire behavior: complies with FMVSS 302, DIN 75200
  • Material: Plug rail made of extruded aluminum profile, clamping rubber made of PU foam
  • Size: Length : 395 mm
  • Resistant to: fuel vapors and mineral oil splashes, Aging (interior), good hydrolysis resistance
  • Temperature resistance: from: +40 °C/+104 °F to: +100 °C/+212 °F
  • Cross-section: 30 x 25 mm

Notice

  • 1 set = 2 rubber profiles
