Cable routing/-mounting/-storage

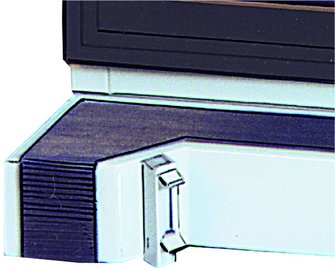

Brake assembly

Prevents movement of mobile base

Order No.	notice
3080-9108-35-02

Universal drilling template

Template with drill pattern for additional hinges and locks

Order No.	notice
3080-7218-00-02

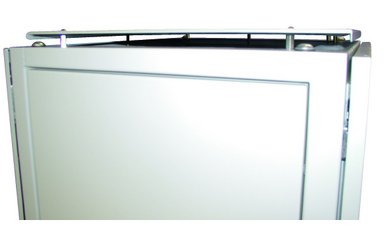

Spacer bolts for top panels

They are needed when the top cable entry plate is raised for roof ventilation.

Order No.	notice
0396-7018-02-00

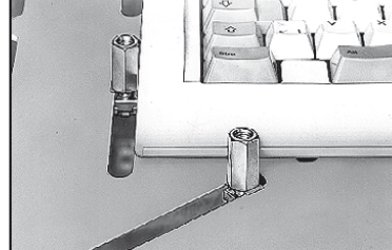

Locking bolt

For securing equipment such as keyboards, modems etc. on intermediate shelves

Order No.	notice
2010-7216-01-51

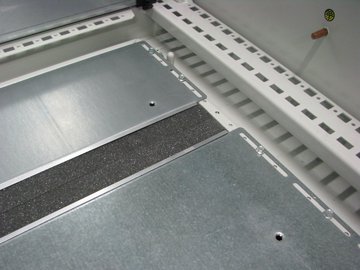

Rubber clamp for cable entry plate

3-part divided and exchangeable cable entry plates in the enclosure bottom ensure cable entry by means of rubber clamps. Additional drilling is not required.
The rubber clamp is simply adhered to the edge of the bottom cable plate.
Particularly suitable for same cable diameters.

		notice
0396-7060-00-71	600 mm
0396-7080-00-71	800 mm
0396-7010-00-71	1000 mm
0396-7012-00-71	1200 mm

Rubber clamps for cable entry plates

Divided cable entry plates permit cable entry without drilling of holes.
Particularly suitable for same cable diameters.

		notice
0396-7060-00-72	600 mm
0396-7080-00-72	800 mm
0396-7010-00-72	1000 mm
0396-7012-00-72	1200 mm

Diagram pocket 0396

For mounting onto perforated door frame

		notice
0396-7115-40-07	400 mm
0396-7115-50-07	500 mm
0396-7115-60-07	600 mm
0396-7115-80-07	800 mm
0396-7115-10-07	1000 mm

Fold-away support (for diagramm pockets)

Can be retrofitted to diagram packet 0396.

		notice
0396-7015-40-07	400 mm
0396-7015-50-07	500 mm
0396-7015-60-07	600 mm
0396-7015-80-07	800 mm
0396-7015-10-07	1000 mm

Diagram pockets 3080

Can be fastened to the perforated door frame either at the right or left side
With cut-outs for attachment of a diskette box

				notice
3080-7114-42-07	300 mm	260 mm	60 mm
3080-7115-40-07	300 mm	260 mm	90 mm

Combination work plate/diagram pocket

Can be used as work plate or diagram pocket
When used as a work plate, disconnect diagram pocket, rotate 90° and re-connect. The diagram pocket remains accessible and now serves as a writing surface.

		notice
0396-7114-60-07	Width (b): 348 mm/13,70" Suitable for width: 600 mm/23,62" (single door) Suitable for width: 1200 mm/47,24" (double door)
0396-7114-80-07	Width (b): 548 mm/21,57" Suitable for width: 800 mm/31,50" (single door)
0396-7114-10-07	Width (b): 748 mm/29,45" Suitable for width: 1000 mm/39,40" (single door)
0396-7114-40-07	Width (b): 257 mm/13,70" Suitable for width: 800 mm/23,62" (double door)

Diskette box/ CD-box

For increased EMI/RFI-shielding
For diskette and CD storage
Can be clipped onto the diagram pocket
For srew mounting

Order No.	notice
3080-7015-00-07

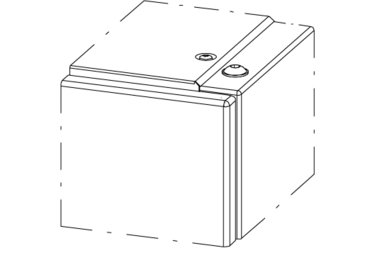

Top panel bolts

		notice
3003-9000-12-25	Sheet steel	M12X25
3005-9000-12-25	Stainless steel A2	M12X25

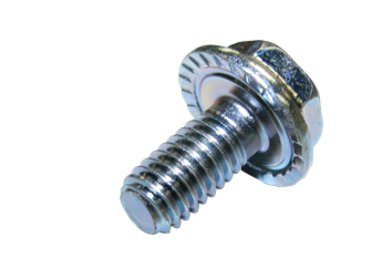

Hex screw Verbus-Tensilock

Locking screws for use without washe

		notice
0348-7500-06-12	M 6
3003-9500-08-12	M 8
3003-9500-08-16	M 8
3003-9500-08-20	M 8

Self-tapping screw 5x10

Order No.	notice
3011-9010-75-16

Hex screw DIN 933

Order No.	notice
3005-9933-06-12

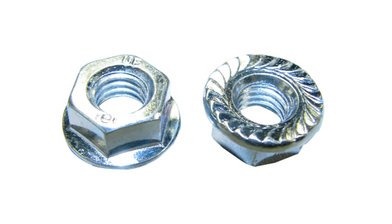

Hex nuts Verbus-Tensilock

Self-locking nuts for use without washe

	notice
3003-9500-06-00
3003-9500-08-00

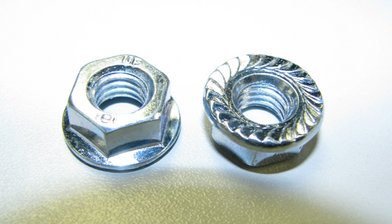

Safety nut DIN 6923, M6

Order No.	notice
3005-9002-06-00

Tipping-cage nuts

Nuts can be inserted from the front.
Tools are not required for mounting.
Can be used for attaching all accessories to the perforated cabinet frame.

	notice
2070-7202-06-00
2070-7202-08-00

Clip-nuts

suitable for installation holes 9.5 mm² and pitch dimension 9x17 mm


2070-9102-34-00	M4	0,7 - 1,6 mm/0,03 - 0,06"	9,5x9,5 mm/0,37x0,37"	without grounding pin
2070-9102-35-00	M5	0,7 - 1,6 mm/0,03 - 0,06"	9,5x9,5 mm/0,37x0,37"	without grounding pin
2070-9102-35-02	M5	1,7 - 2,7 mm	9,5x9,5 mm/0,37x0,37"	without grounding pin
2070-9102-35-03	M5	2,8 - 3,5 mm	9,5x9,5 mm/0,37x0,37"	without grounding pin
2070-9102-36-00	M6	0,7 - 1,6 mm/0,03 - 0,06"	9,5x9,5 mm/0,37x0,37"	without grounding pin
2070-9102-36-02	M6	1,7 - 2,7 mm	9,5x9,5 mm/0,37x0,37"	without grounding pin
2070-9102-36-03	M6	2,8 - 3,5 mm	9,5x9,5 mm/0,37x0,37"	without grounding pin
2070-9102-45-00	M5	0,9 - 1,9 mm	9,5x9,5 mm/0,37x0,37"	with grounding pin
2070-9102-45-01	M5	1,5 - 2,0 mm	9,5x9,5 mm/0,37x0,37"	with grounding pin
2070-9102-46-00	M6	0,9 - 1,9 mm	9,5x9,5 mm/0,37x0,37"	with grounding pin
2070-9102-46-01	M6	1,5 - 2,0 mm	9,5x9,5 mm/0,37x0,37"	with grounding pin
2070-9102-46-02	M6	1,8 - 2,9 mm	9,5x9,5 mm/0,37x0,37"	with grounding pin
2070-9102-46-03	M6	2,8 - 3,5 mm	9,5x9,5 mm/0,37x0,37"	with grounding pin
2070-9202-35-00	M5	0,7 - 1,6 mm/0,03 - 0,06"	9,5x9,5 mm/0,37x0,37"	without grounding pin
2070-9202-35-02	M5	1,7 - 2,7 mm	9,5x9,5 mm/0,37x0,37"	without grounding pin
2070-9202-35-03	M5	2,8 - 3,5 mm	9,5x9,5 mm/0,37x0,37"	without grounding pin
2070-9202-36-00	M6	0,7 - 1,6 mm/0,03 - 0,06"	9,5x9,5 mm/0,37x0,37"	without grounding pin
2070-9202-36-02	M6	1,7 - 2,7 mm	9,5x9,5 mm/0,37x0,37"	without grounding pin
2070-9202-36-03	M6	2,8 - 3,5 mm	9,5x9,5 mm/0,37x0,37"	without grounding pin
2070-9203-36-03	M6	1,8 - 3,2 mm	12,3x12,3 mm/0,48x0,48"	without grounding pin

Mounting tool for clip-nuts

Tool for mounting and disassembling clip-nuts with and without grounding pins in sheet steel and stainless steel.
Suitable for all häwa clip-nuts.
Can be used generally for the sizes 8.3x8.3 mm; 9.5x9.5 mm; 12.3x12.3mm; 12.3x12.1mm and 14x14mm and for all sheet metal thicknesses from 0.7 – 1.6 mm up to 4.8 – 5.5 mm.

Order No.	notice
2070-0003-50-00

Mounting bracket set for mounting plates type 0348

To fasten mounting plates 0348-xxxx-xx-13 in häwa cabinets

Order No.	notice
3080-7111-91-06

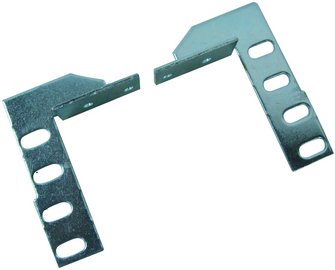

Mounting bracket for mounting plate type 0348 in rearmost position for H395/H375 cabinets

Attachment bracket with the proven "häwa click" for safe snap-in.
The mounting plate is installed in the rear panel.
Extension of the useful depth by 25 mm, corresponds to D-43 mm.

Order No.	notice
3080-7111-99-06

Mounting kit for partial mounting plate to center attachment rails

Order No.	notice
3080-7111-92-06

Mounting brackets for cable support rail

Order No.	notice
0396-7082-00-03

Support plate

Front/rear support plate for absorbing loads in the bottom of the cabinet.
Pre-mounted clip nuts with grounding pins.
Fixing points every 25 mm .
Support of high loads up to 400 kg per support plate set if used with the support rail (Depth).

Order No.	notice
0396-7035-02-00
