Diagram pockets 3080

3080-7114-42-07

Diagram pockets 3080

Product description

Can be fastened to the perforated door frame either at the right or left side

With cut-outs for attachment of a diskette box

Technical data

  • Article number: 3080-7114-42-07
  • PRODUKTGRUPPENNAMEEBENE4: Universal accessories / Accessories control cabinets inside
  • PRODUKTGRUPPENNAMEEBENE5: Cable routing/-mounting/-storage
  • Dimensions: Width : 300 mm  Height : 260 mm  Depth : 60 mm
  • Surface: Powder coating RAL 7035, texture finish
  • Material: Sheet steel
  • Sheet thickness: 1 mm
  • 1 piece with mounting hardware

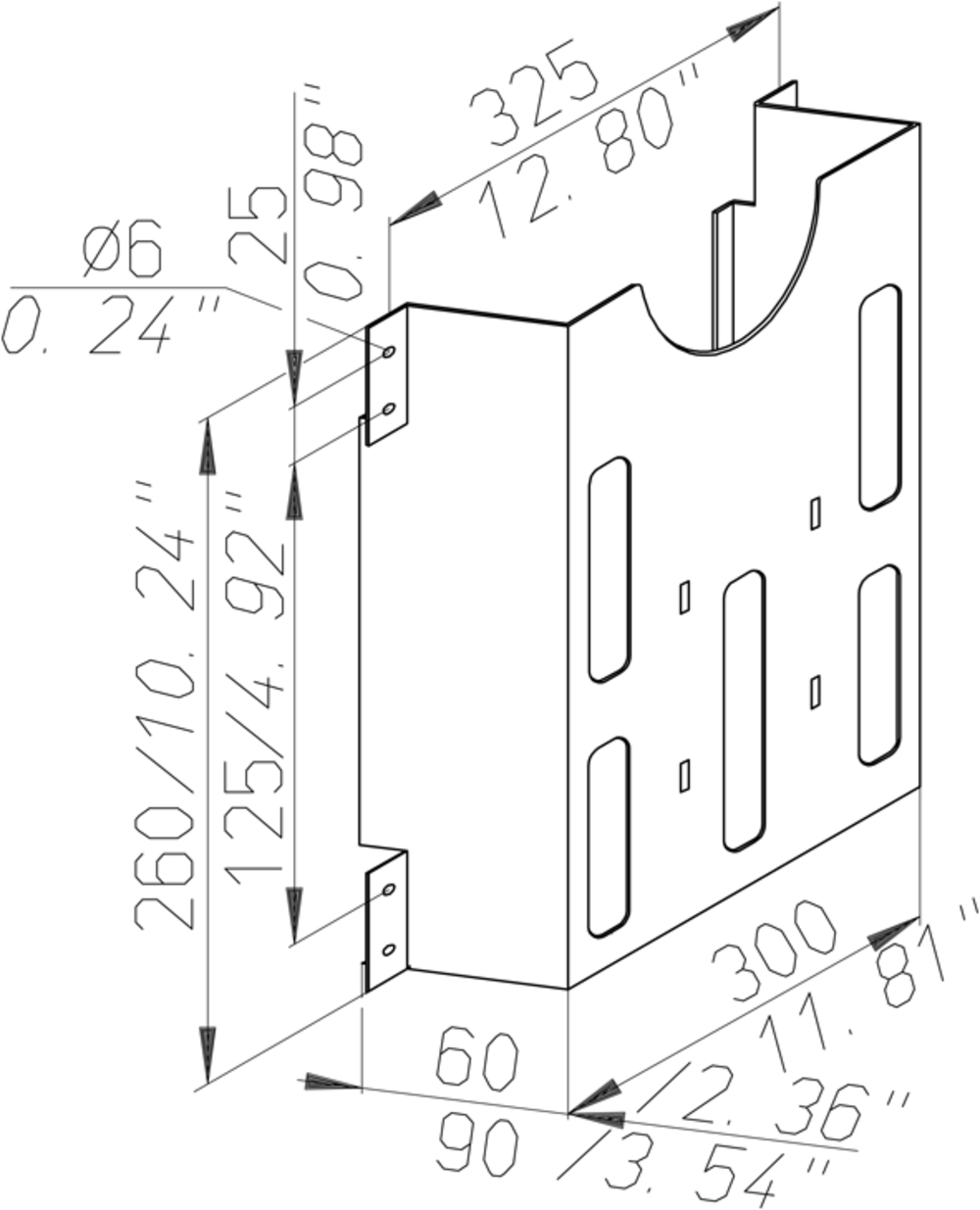

CAD data and other illustrations:
Diagram pockets 3080
Diagram pockets 3080
Can be fastened to the perforated door frame either at the right or left side
With cut-outs for attachment of a diskette box

Remember
300 mm
260 mm
60 mm
300 mm
260 mm
90 mm
