Support plate

0396-7035-02-00

Support plate

  • Reinforcement of the bottom profile of H390/H395 cabinets
  • Increase of the load-carrying capacity of the mounting rail (Depth)

Product description

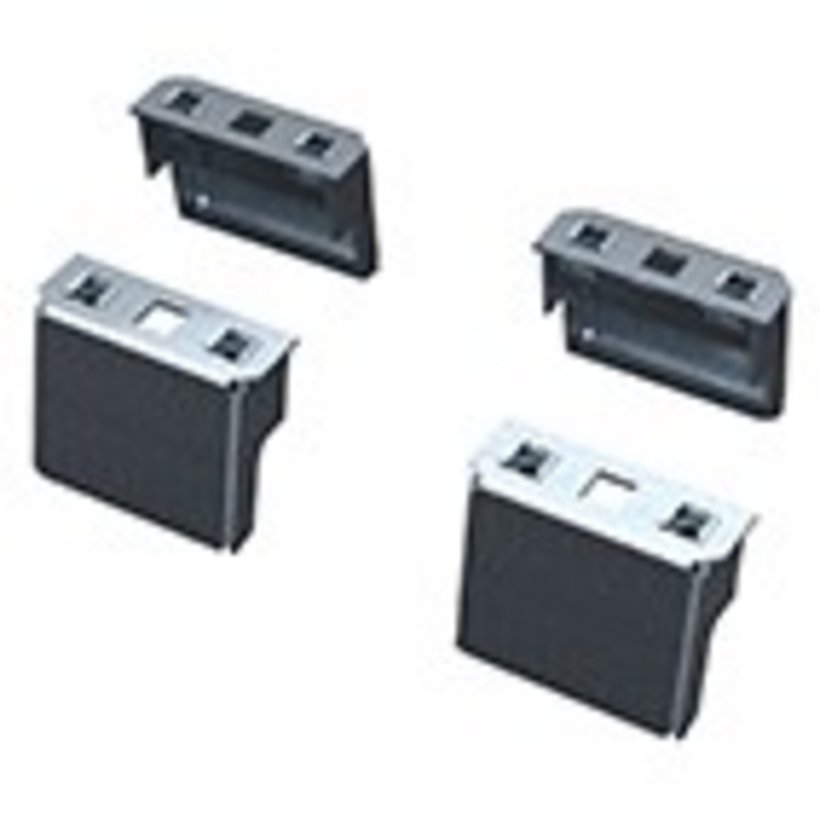

Front/rear support plate for absorbing loads in the bottom of the cabinet.

Pre-mounted clip nuts with grounding pins.

Fixing points every 25 mm .

Support of high loads up to 400 kg per support plate set if used with the support rail (Depth).

Technical data

  • Article number: 0396-7035-02-00
  • PRODUKTGRUPPENNAMEEBENE4: Universal accessories / Accessories control cabinets inside
  • PRODUKTGRUPPENNAMEEBENE5: Cable routing/-mounting/-storage
  • Surface: Galvanized
  • Material: Steel sheet 2 mm/14 ga
  • BELASTBARKEIT_DICT: 400 kg/set

Notice

  • Serrated screws are to be ordered separately (see accessories)
  • If the support plates are used with the support rails (low), bolt the support plates with the countersunk screws supplied with the support rail (low) at the bottom of the cabinet
  • 1 set = 4 support plates with mounted clip nuts
Support rail
0396-0004-40-00
Support rail
Suitable depth
400 mm
Support rail
0396-0004-50-00
Support rail
Suitable depth
500 mm
Support rail
0396-0004-60-00
Support rail
Suitable depth
600 mm
Support rail
0396-0004-80-00
Support rail
Suitable depth
800 mm
Support plate
Support plate
Front/rear support plate for absorbing loads in the bottom of the cabinet.
Pre-mounted clip nuts with grounding pins.
Fixing points every 25 mm .
Support of high loads up to 400 kg per support plate set if used with the support rail (Depth).
