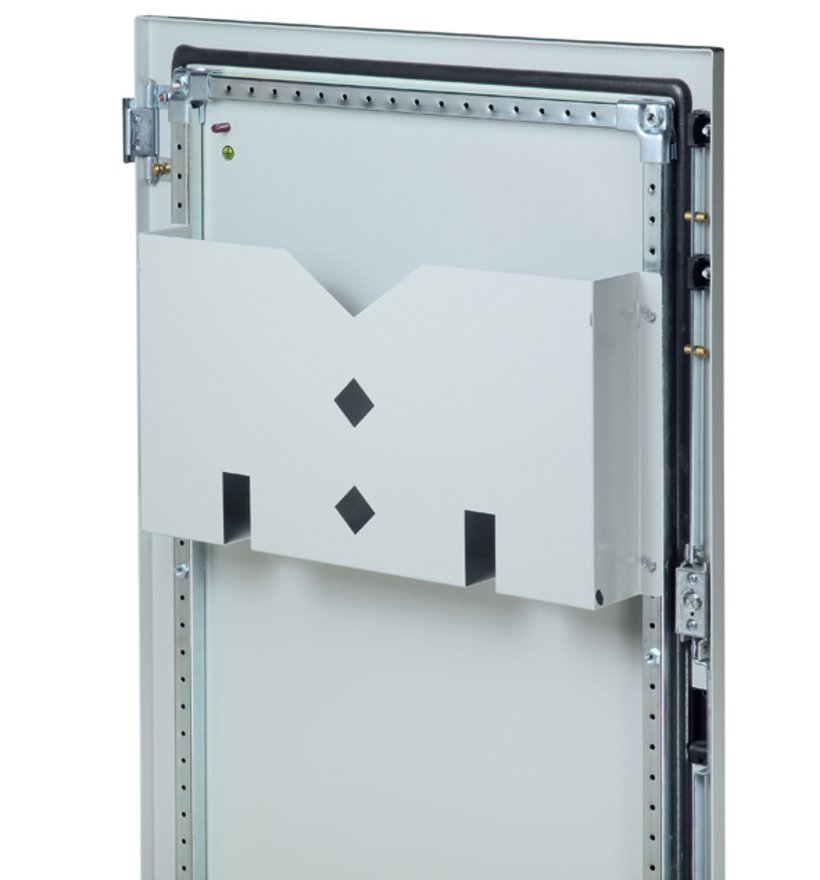

Diagram pocket 0396
Diagram pocket 0396

0396-7115-10-07

Diagram pocket 0396

Product description

For mounting onto perforated door frame

Technical Data

  • Order No.: 0396-7115-10-07
  • Attachment: 4 thread-rolling screw M5x12
  • Dimension: Width : 865 mm  Height : 260 mm  Depth : 90 mm  Suitabel for width : 1000 mm
  • Surface: Powder coating RAL 7035, texture finish
  • Material: Sheet steel
  • Weight: 2.8 kg
  • Sheet thickness: 1 mm

Notice

  • 400/500/600 mm wide diagram pockets can also be mounted in 800/1000/1200 mm wide overlapping double-door free-standing or modular cabinets.
Free-Standing cabinets Stainless steel H370, single door
