3336-3630-30-07

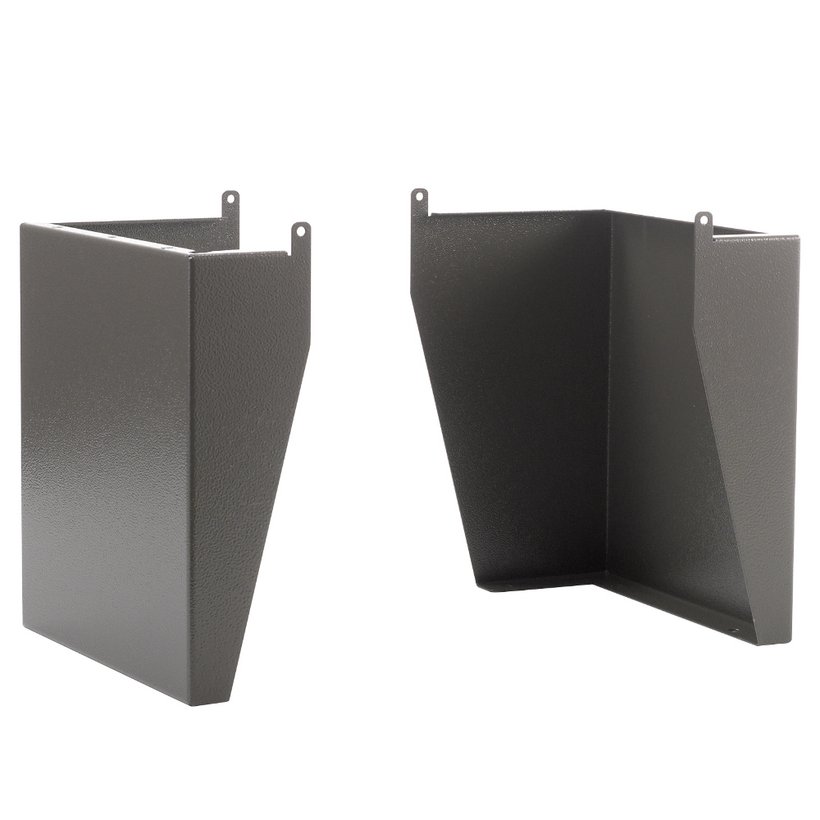

Feet
- for installation of the enclosure off the ground
- easy access to cable entry plates
Product description
Support feet for submounting
for each foot 3 bottom fastening bore holes Ø9 mm for attachment
for each foot 3 top fastening bore holes Ø6 mm and two lateral ones for enclosure mounting
Technical Data
-
PRODUCT NUMBER: 3336-3630-30-07
-
Material: Sheet steel
-
Height: 300 mm
-
Suitable for depth: 300 mm
-
Sheet thickness: 1,5 mm/0,0,6"
-
Surface: Powder coated RAL 7022, texture finish
Notice
- The mounting bore holes Ø 6 mm in the enclosure have to be provided by the customer.
- 1 kit consisting of 2 support feet with 10 pcs. ratchet screws M5 for enclosure mounting
3331-1010-30-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1000 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1010-30-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1000 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1012-30-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1012-30-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1014-30-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1400 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1014-30-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1400 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1291-30-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1200 mm
Height
915 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1291-30-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1200 mm
Height
915 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-4060-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
600 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-4060-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
600 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-5050-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
500 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-5050-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
500 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6012-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6012-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6060-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6060-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6080-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
800 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6080-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
800 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8010-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8010-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8012-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8012-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8060-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
600 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8060-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
600 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8080-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8080-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-9110-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1070 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-9110-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1070 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-9112-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-9112-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-9115-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1525 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-9115-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1525 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-9191-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
915 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-9191-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
915 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-4060-30-06
Wall-mount enclosure EMC, sheet steel 1 door
Width
400 mm
Height
600 mm
Depth
300 mm
Type
without mounting plate
3331-4060-30-16
Wall-mount enclosure EMC, sheet steel 1 door
Width
400 mm
Height
600 mm
Depth
300 mm
Type
with mounting plate
3331-5050-30-06
Wall-mount enclosure EMC, sheet steel 1 door
Width
500 mm
Height
500 mm
Depth
300 mm
Type
without mounting plate
3331-5050-30-16
Wall-mount enclosure EMC, sheet steel 1 door
Width
500 mm
Height
500 mm
Depth
300 mm
Type
with mounting plate
3331-6012-30-06
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
3331-6012-30-16
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
3331-6080-30-06
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
800 mm
Depth
300 mm
Type
without mounting plate
3331-6080-30-16
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
800 mm
Depth
300 mm
Type
with mounting plate
3331-8010-30-06
Wall-mount enclosure EMC, sheet steel 1 door
Width
800 mm
Height
1000 mm
Depth
300 mm
Type
without mounting plate
3331-8010-30-16
Wall-mount enclosure EMC, sheet steel 1 door
Width
800 mm
Height
1000 mm
Depth
300 mm
Type
with mounting plate
3331-8012-30-06
Wall-mount enclosure EMC, sheet steel 1 door
Width
800 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
3331-8012-30-16
Wall-mount enclosure EMC, sheet steel 1 door
Width
800 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
3331-8080-30-06
Wall-mount enclosure EMC, sheet steel 1 door
Width
800 mm
Height
800 mm
Depth
300 mm
Type
without mounting plate
3331-8080-30-16
Wall-mount enclosure EMC, sheet steel 1 door
Width
800 mm
Height
800 mm
Depth
300 mm
Type
with mounting plate
CAD data and other file formats:
