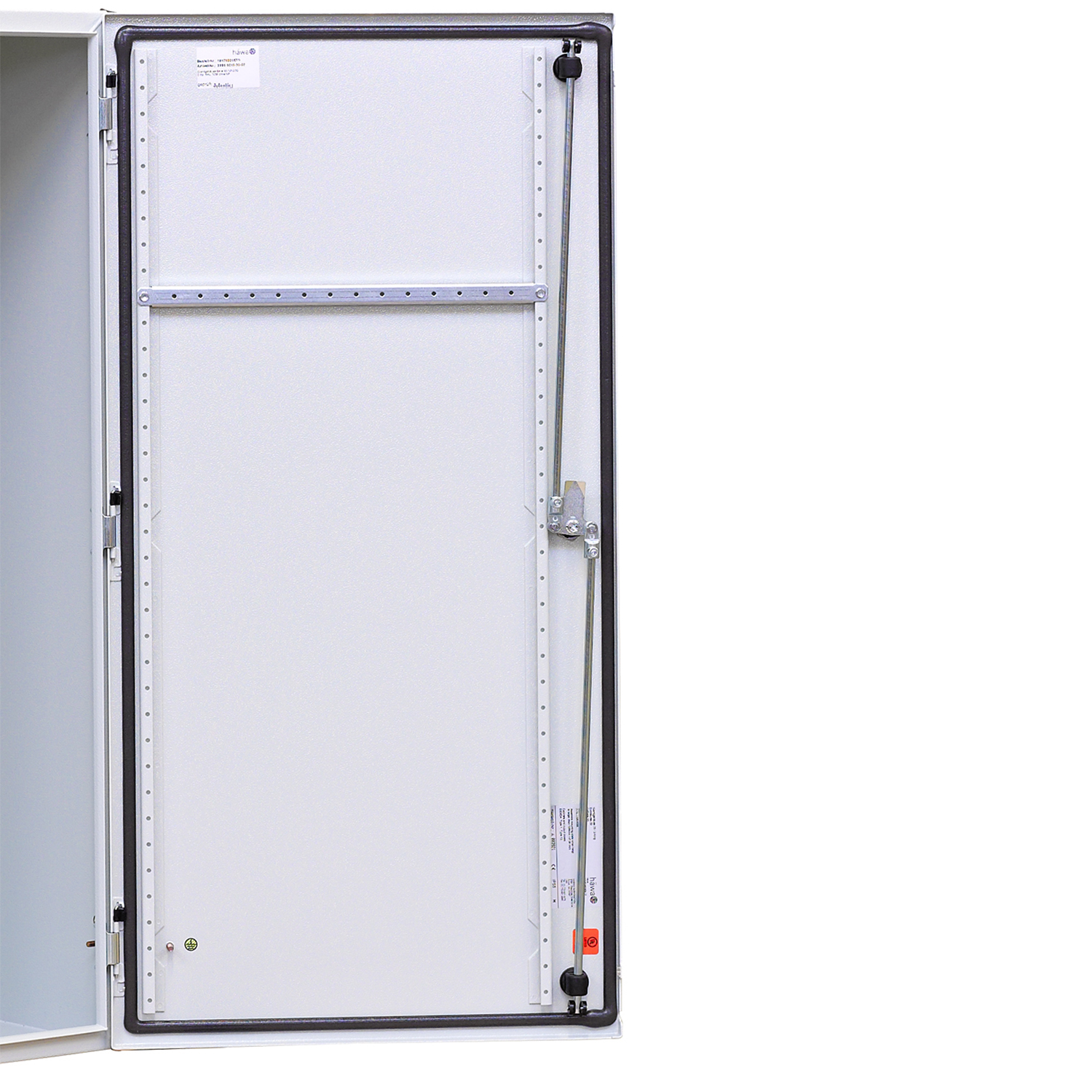

Mounting frame in doors

3362-0001-03-82

Mounting frame in doors

Product description

Mounting frames in doors suitable for wall enclosure series 33

Perforation suitable for self-tapping screws M5 in a 25 mm grid

Mounting possibilities e. g. for cable ducts, covers or reinforcements inside of the door

Fixation by self-tapping screws M5 on the perforated grid inside the doors

Technical Data

  • Order No.: 3362-0001-03-82
  • Material: Sheet steel 1,5 mm / 16 ga
  • Type: lockable door
  • Length: 397 mm
  • Suitabel for width: 1000 mm
  • Surface: Galvanized

Notice

  • Please use self-tapping screws 3003-7516-05-10
  • 1 mounting frame
H335 Console, sheet steel, 2 doors
0335-1010-49-07
H335 Console, sheet steel, 2 doors
Width
1000 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP54
Type 1, 12
further information
H335 Console, sheet steel, 2 doors
0335-1010-49-17
H335 Console, sheet steel, 2 doors
Width
1000 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP54
Type 1, 12
further information
Wall-mount enclosures series 33, sheet steel, 2 doors
3331-1010-30-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1000 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Approval
cULus
further information
Wall-mount enclosures series 33, sheet steel, 2 doors
3331-1010-30-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1000 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Approval
cULus
further information
Wall-mount enclosures series 33, sheet steel, 2 doors
3331-1010-40-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Approval
cULus
further information
Wall-mount enclosures series 33, sheet steel, 2 doors
3331-1010-40-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Approval
cULus
further information
Wall-mount enclosures series 33, sheet steel, 2 doors
3331-1012-30-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Approval
cULus
further information
Wall-mount enclosures series 33, sheet steel, 2 doors
3331-1012-30-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Approval
cULus
further information
Wall-mount enclosures series 33, sheet steel, 2 doors
3331-1012-35-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Approval
cULus
further information
Wall-mount enclosures series 33, sheet steel, 2 doors
3331-1012-35-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Approval
cULus
further information
Wall-mount enclosures series 33, sheet steel, 2 doors
3331-1012-40-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Approval
cULus
further information
Wall-mount enclosures series 33, sheet steel, 2 doors
3331-1012-40-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Approval
cULus
further information
Wall-mount enclosures series 33, sheet steel, 2 doors
3331-1014-30-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1400 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Approval
cULus
further information
Wall-mount enclosures series 33, sheet steel, 2 doors
3331-1014-30-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1400 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Approval
cULus
further information
Wall-mount enclosures series 33, sheet steel, 2 doors
3331-1014-40-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1400 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Approval
cULus
further information
Wall-mount enclosures series 33, sheet steel, 2 doors
3331-1014-40-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1400 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Approval
cULus
further information
Wall-mount enclosures series 33, sheet steel, 2 doors
3331-1080-35-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
800 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Approval
cULus
further information
Wall-mount enclosures series 33, sheet steel, 2 doors
3331-1080-35-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
800 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Approval
cULus
further information
Wall-mount enclosures series 33, sheet steel, 2 doors
3331-1080-40-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Approval
cULus
further information
Wall-mount enclosures series 33, sheet steel, 2 doors
3331-1080-40-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Approval
cULus
further information
Save as PDF Save as PDF Direct enquiry
Mounting frame in doors
Mounting frame in doors
Mounting frames in doors suitable for wall enclosure series 33
Perforation suitable for self-tapping screws M5 in a 25 mm grid
Mounting possibilities e. g. for cable ducts, covers or reinforcements inside of the door
Fixation by self-tapping screws M5 on the perforated grid inside the doors
notice
3362-0001-03-20
334 mm
400 mm
3362-0001-03-70
384 mm
450 mm
3362-0001-04-20
434 mm
500 mm
3362-0001-05-20
534 mm
600 mm
up to height 800
3362-0001-04-70
484 mm
600 mm
from height 801
3362-0001-07-20
734 mm
800 mm
up to height 800
3362-0001-06-70
684 mm
800 mm
from height 801
3362-0001-07-85
800 mm
915 mm
3362-0001-04-47
462 mm
1000 mm
underlapping door
3362-0001-04-82
497 mm
1200 mm
lockable door
3362-0001-05-47
562 mm
1200 mm
underlapping door
3362-0001-08-70
884 mm
1000 mm
single door
