3080-7102-80-20

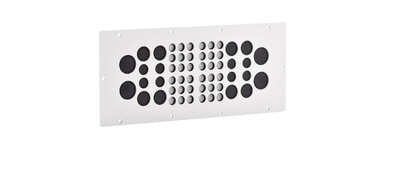

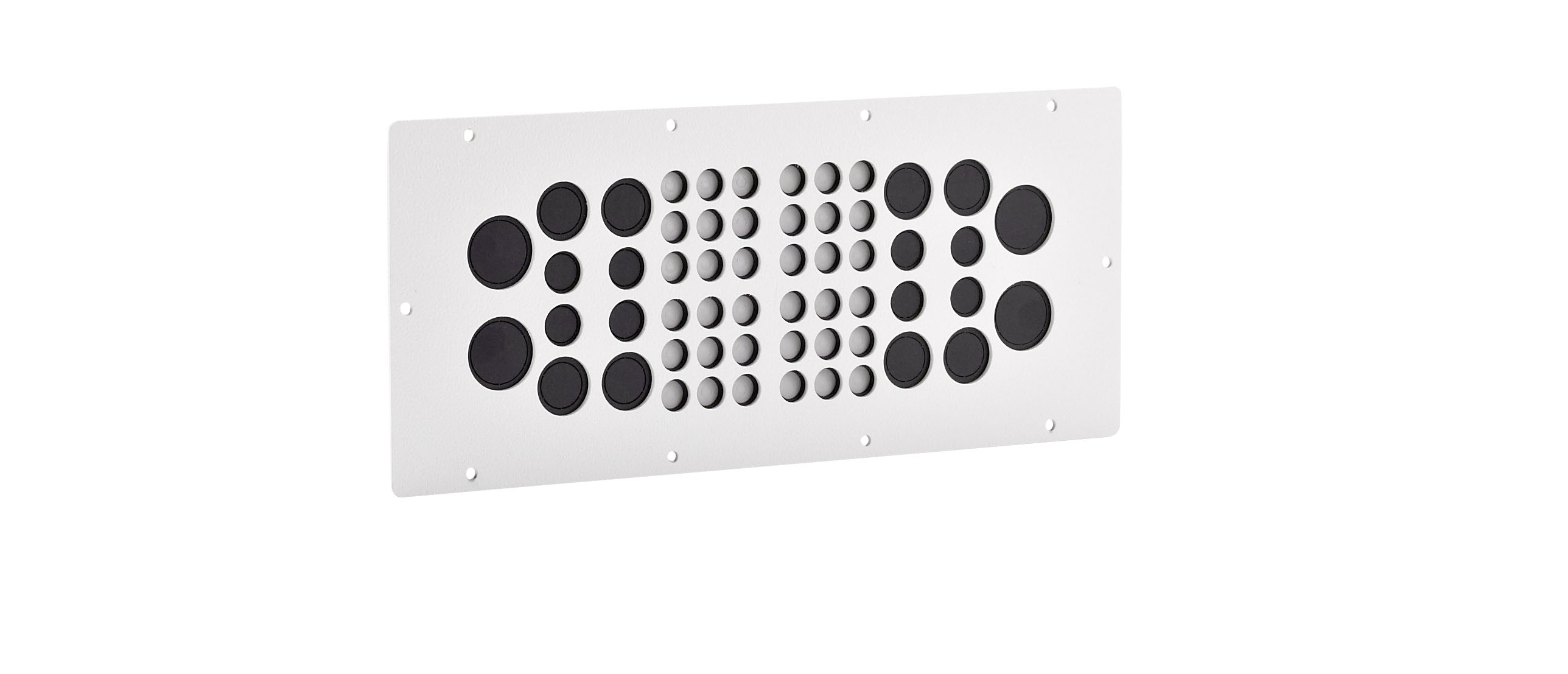

Cable entry plate for Series 33 high packing density
- Very high packing density
- Retrofitting is possible at any time
Product description
Cable entry plate for direct cable and hose insertion
Screwed cable glands are not required
Suitable for häwa enclosures series 33
Mounted cable entry plate in sandwich design
Support plates outside made of sheet steel with 2 intermediate elastomer plates
Attachment with Gefu-screws TX20
Technical Data
-
Order No.: 3080-7102-80-20
-
Sheet thickness: 2,5 mm
-
Material: Support plates made of sheet steel, elastomer plates made of NR (natural rubber) (black) and EPDM (Ethylene-Propylene-Diene) (grey)gasket NBR (Acrylnitrilebutadiene)
-
Surface: Powder coating RAL 7035, texture finish
-
Dimension: Width : 155 mm Length : 355 mm
-
Temperature resistance: -30° up to +90°C (elastomer plates)
- 1 cable entry plate with gasket and Gefu-screws
3331-1010-30-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1000 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1010-30-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1000 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1010-40-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1010-40-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1012-30-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1012-30-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1012-35-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1012-35-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1012-40-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1012-40-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1014-30-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1400 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1014-30-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1400 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1014-40-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1400 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1014-40-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1400 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1080-35-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
800 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1080-35-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
800 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1080-40-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1080-40-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1112-35-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-1112-35-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-1112-40-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-1112-40-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-4040-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
400 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-4040-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
400 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-4050-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
500 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-4050-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
500 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-4060-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
600 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-4060-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
600 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-4060-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
600 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-4060-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
600 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-4530-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
450 mm
Height
300 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-4530-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
450 mm
Height
300 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-5050-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
500 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-5050-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
500 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-5050-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
500 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-5050-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
500 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-5060-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
600 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-5060-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
600 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-5080-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
800 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-5080-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
800 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8010-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8010-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8010-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8010-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8010-35-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8010-35-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8010-40-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8010-40-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8012-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8012-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8012-40-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8012-40-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8060-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
600 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8060-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
600 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8060-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
600 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8060-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
600 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8080-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8080-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8080-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8080-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8080-40-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8080-40-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-9110-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1070 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-9110-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1070 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-9112-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-9112-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-9112-40-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-9112-40-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-9115-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1525 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-9115-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1525 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-9191-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
915 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-9191-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
915 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
Assembly instructions:
CAD data and other file formats:
Contact for products
Find your personal point of contact
We are happy to help you.
The best switch cabinets and casings are not produced on an assembly line, but rather designed in close cooperation with our customers. Are you ready to begin? Then contact your personal häwa consultant.
