3080-7035-12-57

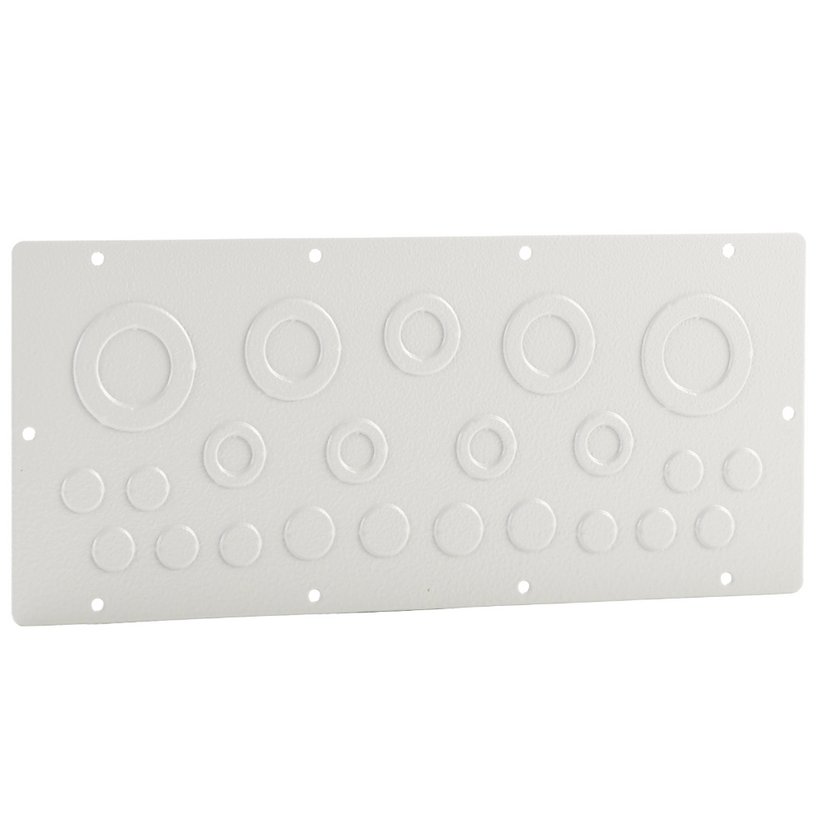

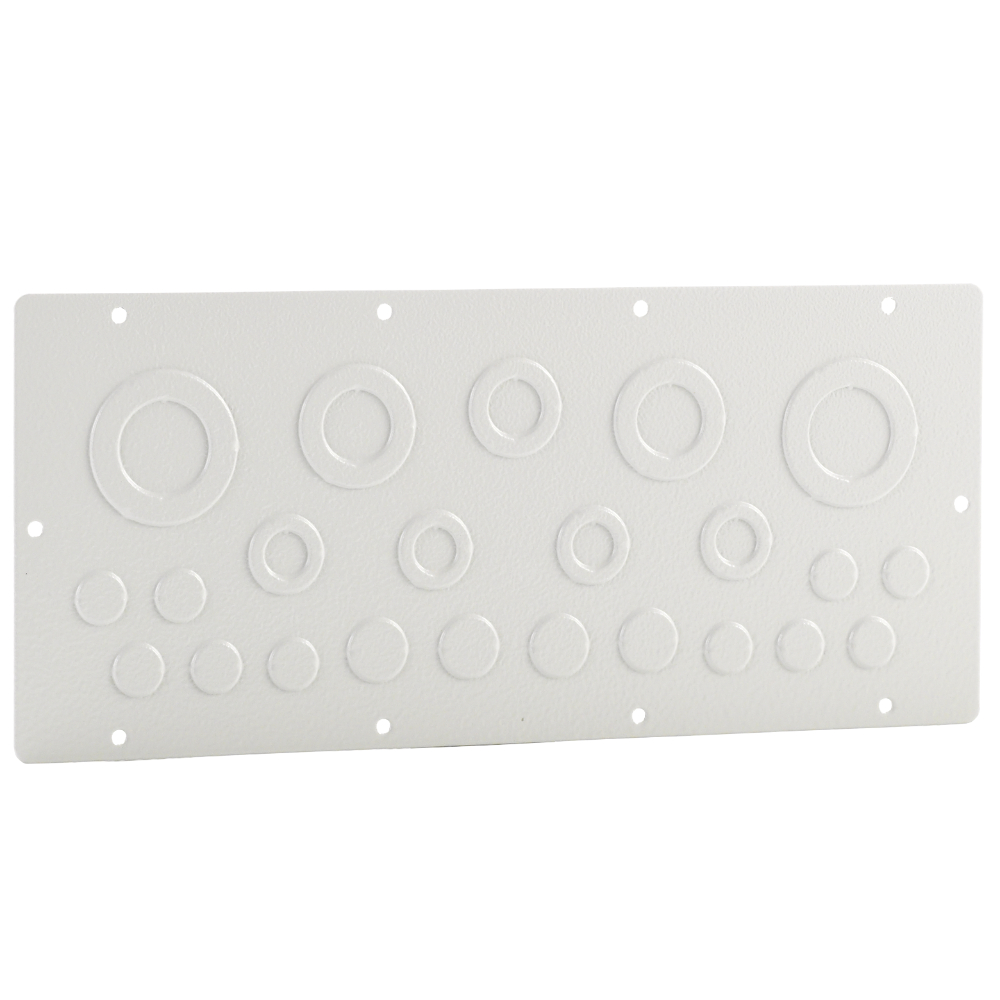

Cable entry plate for serie33 sheet steel with knockouts
- Flexible through double occupied knockouts
Product description
Cable entry plate made from sheet steel with knockouts to support cable glands
gasket enclosed
mounted using Gefu screws TX20
Technical Data
-
PRODUCT NUMBER: 3080-7035-12-57
-
Sheet thickness: 1,5 mm/0,0,6"
-
Material: Sheet steel
-
Surface: Powder coating RAL 7035, texture finish
-
Type: with knockouts size 1: 2 x M50 and M32, 2 x M40 and M25, 1 x M32 and M20, 4 x M25 and M16, 4 x M20 and 10 x M16
with knockouts size 2: 2 x M50 and M32, 2 x M40 and M25, 5 x M32 and M20, 6 x M25 and M16, 16 x M20 and 8 x M16 -
Dimension: Width : 155 mm Length : 355 mm
Notice
- Arrangement of the knockouts according to your specifications, usage of existing tools on request
- 1 cable entry plate with gasket and fixing parts
3331-1010-30-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1000 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1010-30-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1000 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1010-40-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1010-40-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1012-30-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1012-30-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1012-35-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1012-35-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1012-40-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1012-40-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1014-30-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1400 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1014-30-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1400 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1014-40-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1400 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1014-40-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1400 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1080-35-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
800 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1080-35-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
800 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1080-40-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1080-40-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1112-35-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-1112-35-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
1000 mm
Height
1200 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-1112-40-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-1112-40-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-4040-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
400 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-4040-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
400 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-4050-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
500 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-4050-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
500 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-4060-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
600 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-4060-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
600 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-4060-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
600 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-4060-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
400 mm
Height
600 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-4530-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
450 mm
Height
300 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-4530-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
450 mm
Height
300 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-5050-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
500 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-5050-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
500 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-5050-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
500 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-5050-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
500 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-5060-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
600 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-5060-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
600 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-5080-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
800 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-5080-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
500 mm
Height
800 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8010-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8010-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8010-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8010-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8010-35-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8010-35-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8010-40-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8010-40-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8012-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8012-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8012-40-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8012-40-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8060-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
600 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8060-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
600 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8060-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
600 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8060-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
600 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8080-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8080-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8080-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8080-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8080-40-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-8080-40-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
800 mm
Height
800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-9110-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1070 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-9110-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1070 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-9112-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1200 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-9112-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1200 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-9112-40-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-9112-40-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-9115-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1525 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-9115-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
1525 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-9191-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
915 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-9191-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
915 mm
Height
915 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
Assembly instructions:
CAD data and other file formats:
Contact for products
Find your personal point of contact
We are happy to help you.
The best switch cabinets and casings are not produced on an assembly line, but rather designed in close cooperation with our customers. Are you ready to begin? Then contact your personal häwa consultant.
