3331-1010-05-97

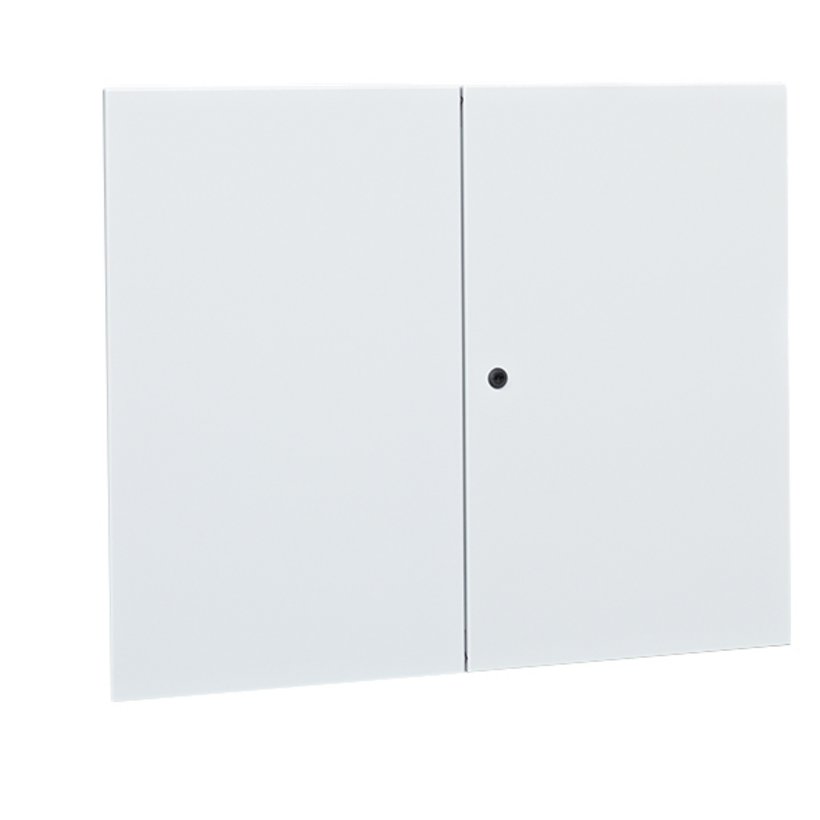

Replacement door for sheet steel enclosures of Series 33
Product description
Replacement door suitable for Series 33 wall-mount enclosures
Protective ground connection to DIN EN 61439-1, bolt M6x16
With seamlessly foamed seal
Hidden sheet steel hinges, opening angle 180°, up to H=800 mm each door with 2 hinges, from H=801 mm with 3 hinges
Lock: up to H=400 mm with 1 quarter turn latch lock, from H=401 mm with 2 quarter turn latch locks, from H=801 mm with standard bar lock, 3 mm double mandrel
Doors from W=300 mm and H=400 mm on both sides with reinforcing / perforated profile with attachment holes with a diameter of 4.2 mm in a 25 mm grid.
Technical Data
-
Order No.: 3331-1010-05-97
-
Material: Sheet steel
-
Type: Double door set
-
Suitabel for width: 1000 mm
-
Suitable for height: 1000 mm
-
Sheet thickness: 2 mm/0,08"
-
Protective ground connection: according to DIN EN 61439-1
-
Surface: Powder coating RAL 7035, texture finish
- Complete with lock, hinges and mounting hardware, as well as one key.
3331-1010-30-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1000 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1010-30-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1000 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1010-40-07
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
3331-1010-40-17
Wall-mount enclosures series 33, sheet steel, 2 doors
Width
1000 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 2, 5, 12
Type 1, 2, 5, 12
Approval
cULus
