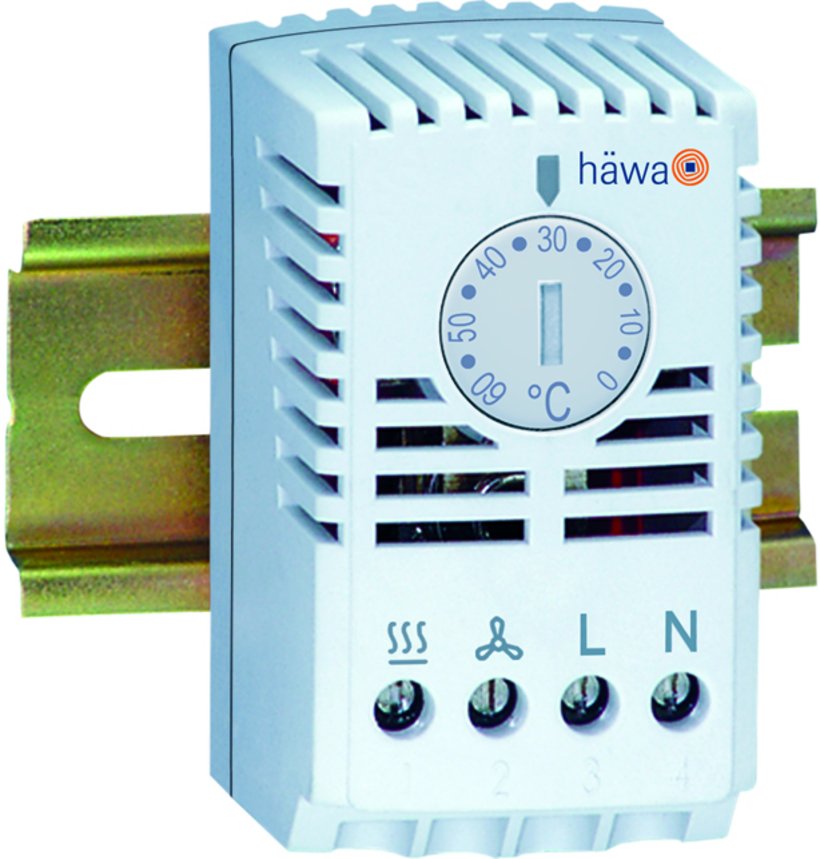

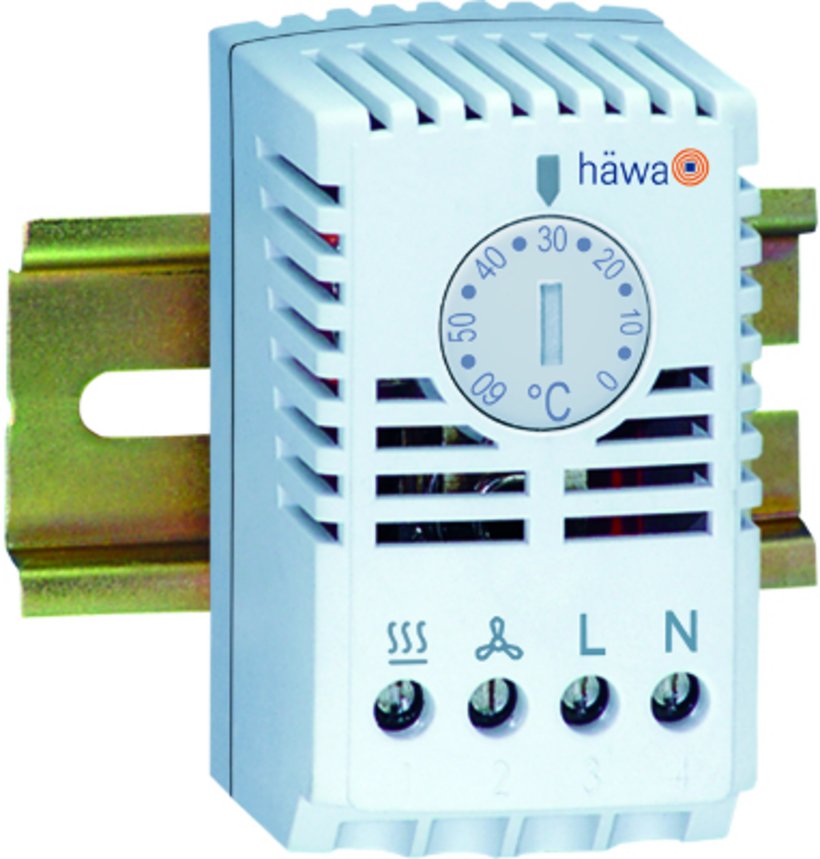

Product description
Temperature controller for controlling cabinet heaters, filter fans, slide-in fans, heat exchangers etc.
Locking adjusting knob, grey scala.
Standard thermal reduction.
Technical Data
-
Order No.: 3150-0060-02-30
-
Protection type: IP30
-
Protection class: 0, must be supplied by installation type
-
Electrical connection: screw teminals 0.5 ...2.5 mm2
-
Temperature range: from: 0 °C/0 °F to: +60 °C/+140 °F
-
Operating temperature: from : +0 °C to : +60 °C
-
LAGERTEMPERATUR: LAGERTEMPERATUR_VON : -40 °C LAGERTEMPERATUR_BIS : +80 °C
-
Switching current: (100-250 VAC): Heating (normally closed contact) 10 A (2) DC 30W; Cooling (normally open contact) 5 A (2) DC 30W
-
Switching hysteresis: approx. 5 K (withthermal reduction approx.1 K) +/-3K
-
Contact type: Change-over
-
Sensor element: Bimetal
-
Mounting: Clip for 35 mm DIN rail EN 60715
-
Weight: 50 g
-
Dimension: Width : 37 mm Height : 64 mm Depth : 46 mm
-
Surface: Plastic light grey UL94VO
- Temperature controller complete with snap on attachment
3114-0150-15-07

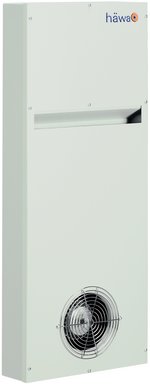

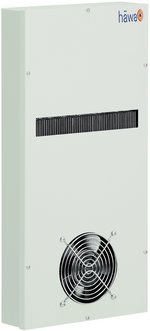

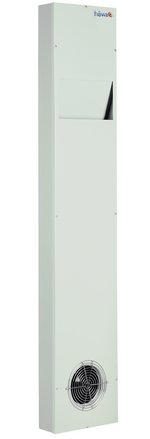

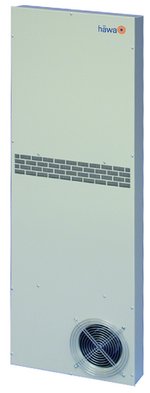

Air-To-Air Heat Exchangers
Typ
Kleinst-WT
Cooling capacity
6 W/K
Nominal voltage
230 V AC
Approval
CE
Mounting
partial mounting
3114-0220-16-07
Air-To-Air Heat Exchangers
Typ
Mini-Mini 220
Cooling capacity
8,8 W/K
Nominal voltage
230 V AC
Approval
CE
Mounting
external/internal installation
3114-0350-25-07
Air-To-Air Heat Exchangers
Typ
Kompakt superflach 350
Cooling capacity
14 W/K
Nominal voltage
230 V AC
Approval
CE
Mounting
external/internal installation
3114-0500-25-07
Air-To-Air Heat Exchangers
Typ
Kompakt 500
Cooling capacity
20 W/K
Nominal voltage
230 V AC
Approval
CE
Mounting
external/internal installation
3114-0750-31-07
Air-To-Air Heat Exchangers
Typ
Kompakt 750
Cooling capacity
30 W/K
Nominal voltage
230 V AC
Approval
CE
Mounting
external/internal installation
3114-1150-25-07
Air-To-Air Heat Exchangers
Typ
Standard 1150
Cooling capacity
46 W/K
Nominal voltage
230 V AC
Approval
CE
Mounting
external/internal installation
3114-2000-23-07
Air-To-Air Heat Exchangers
Typ
SH2000
Cooling capacity
80 W/K
Nominal voltage
230 V AC
Approval
CE
Mounting
external/internal installation
3114-3250-23-07
Air-To-Air Heat Exchangers
Typ
SH3250
Cooling capacity
130 W/K
Nominal voltage
230 V AC
Approval
CE
Mounting
external/internal installation
3115-1600-60-07
Roof-Mounted Air-To-Air Heat Exchanger
Typ
DW1600
Cooling capacity
64 W/K
Nominal voltage
230 V AC
Approval
CE
Mounting
roof-mounted
3116-0700-11-00-00
Air-To-Water Heat Exchanger
Typ
WW700
Nominal voltage
115 V AC
Approval
bei 50/60 Hz: CE
bei 60 Hz: cURus
bei 60 Hz: cURus
Mounting
external mounting
3116-0700-23-00-00
Air-To-Water Heat Exchanger
Typ
WW700
Cooling capacity
L35-W10/400l/h: 800 W / 200l/h: 700 W
Nominal voltage
230 V AC
Approval
bei 50/60 Hz: CE
bei 60 Hz: cURus
bei 60 Hz: cURus
Mounting
external mounting
3116-0700-23-02-00
Air-To-Water Heat Exchanger
Typ
WW700
Cooling capacity
700/800/- W
Nominal voltage
230 V AC
Approval
bei 50/60 Hz: CE
bei 60 Hz: cURus
bei 60 Hz: cURus
Mounting
external mounting
3116-1500-22-07
Air-To-Water Heat Exchanger
Typ
WW1500
Cooling capacity
1500 W (L35-W10/400 l/h) 1380 W (L35-W10/200 l/h)
Nominal voltage
230 V AC
Approval
CE
Mounting
external mounting
3116-2000-22-07
Air-To-Water Heat Exchanger
Typ
WW2000
Cooling capacity
2000 W (L35-W10 / 400 l/h) 1700 W (L35-W10 / 200 l/h)
Nominal voltage
230 V AC
Approval
CE
Mounting
external mounting
3116-3500-11-00-00
Air-To-Water Heat Exchanger
Typ
WW3500S
Cooling capacity
3200/3500/- W
Nominal voltage
115 V AC
Approval
bei 50/60 Hz: CE
bei 60 Hz: cURus
bei 60 Hz: cURus
Mounting
external mounting
3116-3500-23-00-00
Air-To-Water Heat Exchanger
Typ
WW3500S
Cooling capacity
3200/3500/- W
Nominal voltage
230 V AC
Approval
bei 50/60 Hz: CE
bei 60 Hz: cURus
bei 60 Hz: cURus
Mounting
external mounting
3116-4000-11-02-00
Air-To-Water Heat Exchanger
Typ
WW4000S
Cooling capacity
4300 W (L35-W10 / 400 l/h) 5000 W (L35-W10 / 800 l/h)
Nominal voltage
115 V AC
Approval
bei 50/60 Hz: CE
bei 60 Hz: cURus
bei 60 Hz: cURus
Mounting
external mounting
3116-4000-23-02-00
Air-To-Water Heat Exchanger
Typ
WW4000S
Cooling capacity
4300 W (L35-W10 / 400 l/h) 5000 W (L35-W10 / 800 l/h)
Nominal voltage
230 V AC
Approval
bei 50/60 Hz: CE
bei 60 Hz: cURus
bei 60 Hz: cURus
Mounting
external mounting
3148-0300-01-17
Roof-Mounted Ventilators
Nominal voltage
115 V AC
Protection class
IP43
Cut out dimension
249 x 249 mm
Approvals
Fan motor: EN 60335-1
Typ
Roof-mounted ventilator complete
3148-0300-02-27
Roof-Mounted Ventilators
Nominal voltage
230 V AC
Protection class
IP43
Cut out dimension
249 x 249 mm
Approvals
Fan motor: EN 60335-1
Typ
Roof-mounted ventilator complete
3149-0144-11-07-01
Super Flat Filter Fans
Nominal voltage
115 V AC
Protection class
IP42
Cut out dimension
122 x 122 mm
Typ
0144
3149-0144-23-07-01
Super Flat Filter Fans
Nominal voltage
230 V AC
Protection class
IP42
Cut out dimension
122 x 122 mm
Typ
0144
3149-0160-11-07-01
Super Flat Filter Fans
Nominal voltage
115 V AC
Protection class
IP42
Cut out dimension
138 x 138 mm
Typ
0160
3149-0160-23-07-01
Super Flat Filter Fans
Nominal voltage
230 V AC
Protection class
IP42
Cut out dimension
138 x 138 mm
Typ
0160
3149-0324-11-07
Super Flat Filter Fans
Nominal voltage
115 V AC
Protection class
IP42
Cut out dimension
292 x 292 mm
Typ
0324
3149-0324-23-07
Super Flat Filter Fans
Nominal voltage
230 V AC
Protection class
IP42
Cut out dimension
292 x 292 mm
Typ
0324
3156-0092-11-00
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 9005
Cut out dimension
92 x 92 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 35/35 m3/h
with exhaust filter at 50/60 Hz: 24/24 m3/h
with exhaust filter at 50/60 Hz: 24/24 m3/h
Approvals
CE; cURus; cULus
Typ
FC10
3156-0092-11-70
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 7035
Cut out dimension
92 x 92 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 35/35 m3/h
with exhaust filter at 50/60 Hz: 24/24 m3/h
with exhaust filter at 50/60 Hz: 24/24 m3/h
Approvals
CE; cURus; cULus
Typ
FC10
3156-0092-23-00
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 9005
Cut out dimension
92 x 92 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 35/35 m3/h
with exhaust filter at 50/60 Hz: 24/24 m3/h
with exhaust filter at 50/60 Hz: 24/24 m3/h
Approvals
CE; cURus; cULus
Typ
FC10
3156-0092-23-70
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 7035
Cut out dimension
92 x 92 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 35/35 m3/h
with exhaust filter at 50/60 Hz: 24/24 m3/h
with exhaust filter at 50/60 Hz: 24/24 m3/h
Approvals
CE; cURus; cULus
Typ
FC10
3156-0092-24-00
FixCool Filter Fan
Nominal voltage
24 V DC
Surface finish
RAL 9005
Cut out dimension
92 x 92 mm
Unimpeded air flow
unimpeded air flow: 50 m3/h
with exhaust filter: 32 m3/h
with exhaust filter: 32 m3/h
Approvals
CE; cURus; cULus
Typ
FC10
3156-0092-24-70
FixCool Filter Fan
Nominal voltage
24 V DC
Surface finish
RAL 7035
Cut out dimension
92 x 92 mm
Unimpeded air flow
unimpeded air flow: 50 m3/h
with exhaust filter: 32 m3/h
with exhaust filter: 32 m3/h
Approvals
CE; cURus; cULus
Typ
FC10
3156-0125-11-00
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 9005
Cut out dimension
125 x 125 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 67/69 m3/h
with exhaust filter at 50/60 Hz: 50/52 m3/h
with exhaust filter at 50/60 Hz: 50/52 m3/h
Approvals
CE; cURus; cULus
Typ
FC15
3156-0125-11-70
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 7035
Cut out dimension
125 x 125 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 67/69 m3/h
with exhaust filter at 50/60 Hz: 50/52 m3/h
with exhaust filter at 50/60 Hz: 50/52 m3/h
Approvals
CE; cURus; cULus
Typ
FC15
3156-0125-23-00
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 9005
Cut out dimension
125 x 125 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 67/69 m3/h
with exhaust filter at 50/60 Hz: 50/52 m3/h
with exhaust filter at 50/60 Hz: 50/52 m3/h
Approvals
CE; cURus; cULus
Typ
FC15
3156-0125-23-70
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 7035
Cut out dimension
125 x 125 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 67/69 m3/h
with exhaust filter at 50/60 Hz: 50/52 m3/h
with exhaust filter at 50/60 Hz: 50/52 m3/h
Approvals
CE; cURus; cULus
Typ
FC15
3156-0125-24-00
FixCool Filter Fan
Nominal voltage
24 V DC
Surface finish
RAL 9005
Cut out dimension
125 x 125 mm
Unimpeded air flow
unimpeded air flow: 67 m3/h
with exhaust filter: 50 m3/h
with exhaust filter: 50 m3/h
Approvals
CE; cURus; cULus
Typ
FC15
3156-0125-24-70
FixCool Filter Fan
Nominal voltage
24 V DC
Surface finish
RAL 7035
Cut out dimension
125 x 125 mm
Unimpeded air flow
unimpeded air flow: 67 m3/h
with exhaust filter: 50 m3/h
with exhaust filter: 50 m3/h
Approvals
CE; cURus; cULus
Typ
FC15
3156-0177-11-00
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 9005
Cut out dimension
177 x 177 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 108/114 m3/h
with exhaust filter at 50/60 Hz: 75/82 m3/h
with exhaust filter at 50/60 Hz: 75/82 m3/h
Approvals
CE; cURus; cULus
Typ
FC20
3156-0177-11-70
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 7035
Cut out dimension
177 x 177 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 108/114 m3/h
with exhaust filter at 50/60 Hz: 75/82 m3/h
with exhaust filter at 50/60 Hz: 75/82 m3/h
Approvals
CE; cURus; cULus
Typ
FC20
3156-0177-23-00
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 9005
Cut out dimension
177 x 177 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 108/114 m3/h
with exhaust filter at 50/60 Hz: 75/82 m3/h
with exhaust filter at 50/60 Hz: 75/82 m3/h
Approvals
CE; cURus; cULus
Typ
FC20
3156-0177-23-70
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 7035
Cut out dimension
177 x 177 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 108/114 m3/h
with exhaust filter at 50/60 Hz: 75/82 m3/h
with exhaust filter at 50/60 Hz: 75/82 m3/h
Approvals
CE; cURus; cULus
Typ
FC20
3156-0177-24-00
FixCool Filter Fan
Nominal voltage
24 V DC
Surface finish
RAL 9005
Cut out dimension
177 x 177 mm
Unimpeded air flow
unimpeded air flow: 108 m3/h
with exhaust filter: 75 m3/h
with exhaust filter: 75 m3/h
Approvals
CE; cURus; cULus
Typ
FC20
3156-0177-24-70
FixCool Filter Fan
Nominal voltage
24 V DC
Surface finish
RAL 7035
Cut out dimension
177 x 177 mm
Unimpeded air flow
unimpeded air flow: 108 m3/h
with exhaust filter: 75 m3/h
with exhaust filter: 75 m3/h
Approvals
CE; cURus; cULus
Typ
FC20
3156-0223-11-00
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 9005
Cut out dimension
223 x 223 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 190/198 m3/h
with exhaust filter at 50/60 Hz: 130/138 m3/h
with exhaust filter at 50/60 Hz: 130/138 m3/h
Approvals
CE; cURus; cULus
Typ
FC25
3156-0223-11-01
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 9005
Cut out dimension
223 x 223 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 270/280 m3/h
with exhaust filter at 50/60 Hz: 200/210 m3/h
with exhaust filter at 50/60 Hz: 200/210 m3/h
Approvals
CE; cURus; cULus
Typ
FC25
3156-0223-11-70
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 7035
Cut out dimension
223 x 223 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 190/198 m3/h
with exhaust filter at 50/60 Hz: 130/138 m3/h
with exhaust filter at 50/60 Hz: 130/138 m3/h
Approvals
CE; cURus; cULus
Typ
FC25
3156-0223-11-71
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 7035
Cut out dimension
223 x 223 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 270/280 m3/h
with exhaust filter at 50/60 Hz: 200/210 m3/h
with exhaust filter at 50/60 Hz: 200/210 m3/h
Approvals
CE; cURus; cULus
Typ
FC25
3156-0223-23-00
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 9005
Cut out dimension
223 x 223 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 190/198 m3/h
with exhaust filter at 50/60 Hz: 130/138 m3/h
with exhaust filter at 50/60 Hz: 130/138 m3/h
Approvals
CE; cURus; cULus
Typ
FC25
3156-0223-23-01
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 9005
Cut out dimension
223 x 223 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 270/280 m3/h
with exhaust filter at 50/60 Hz: 200/210 m3/h
with exhaust filter at 50/60 Hz: 200/210 m3/h
Approvals
CE; cURus; cULus
Typ
FC25
3156-0223-23-70
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 7035
Cut out dimension
223 x 223 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 190/198 m3/h
with exhaust filter at 50/60 Hz: 130/138 m3/h
with exhaust filter at 50/60 Hz: 130/138 m3/h
Approvals
CE; cURus; cULus
Typ
FC25
3156-0223-23-71
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 7035
Cut out dimension
223 x 223 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 270/280 m3/h
with exhaust filter at 50/60 Hz: 200/210 m3/h
with exhaust filter at 50/60 Hz: 200/210 m3/h
Approvals
CE; cURus; cULus
Typ
FC25
3156-0223-24-01
FixCool Filter Fan
Nominal voltage
24 V DC
Surface finish
RAL 9005
Cut out dimension
223 x 223 mm
Unimpeded air flow
unimpeded air flow: 230 m3/h
with exhaust filter: 190 m3/h
with exhaust filter: 190 m3/h
Approvals
CE; cURus; cULus
Typ
FC25
3156-0223-24-71
FixCool Filter Fan
Nominal voltage
24 V DC
Surface finish
RAL 7035
Cut out dimension
223 x 223 mm
Unimpeded air flow
unimpeded air flow: 230 m3/h
with exhaust filter: 190 m3/h
with exhaust filter: 190 m3/h
Approvals
CE; cURus; cULus
Typ
FC25
3156-0291-11-00
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 9005
Cut out dimension
291 x 291 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 500/525 m3/h
with exhaust filter at 50/60 Hz: 380/410 m3/h
with exhaust filter at 50/60 Hz: 380/410 m3/h
Approvals
CE; cURus; cULus
Typ
FC30
3156-0291-11-01
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 9005
Cut out dimension
291 x 291 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 700/630 m3/h
with exhaust filter at 50/60 Hz: 600/530 m3/h
with exhaust filter at 50/60 Hz: 600/530 m3/h
Approvals
CE; cURus; cULus
Typ
FC30
3156-0291-11-70
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 7035
Cut out dimension
291 x 291 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 500/525 m3/h
with exhaust filter at 50/60 Hz: 380/410 m3/h
with exhaust filter at 50/60 Hz: 380/410 m3/h
Approvals
CE; cURus; cULus
Typ
FC30
3156-0291-11-71
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 7035
Cut out dimension
291 x 291 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 700/630 m3/h
with exhaust filter at 50/60 Hz: 600/530 m3/h
with exhaust filter at 50/60 Hz: 600/530 m3/h
Approvals
CE; cURus; cULus
Typ
FC30
3156-0291-23-00
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 9005
Cut out dimension
291 x 291 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 500/525 m3/h
with exhaust filter at 50/60 Hz: 380/410 m3/h
with exhaust filter at 50/60 Hz: 380/410 m3/h
Approvals
CE; cURus; cULus
Typ
FC30
3156-0291-23-01
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 9005
Cut out dimension
291 x 291 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 700/630 m3/h
with exhaust filter at 50/60 Hz: 600/530 m3/h
with exhaust filter at 50/60 Hz: 600/530 m3/h
Approvals
CE; cURus; cULus
Typ
FC30
3156-0291-23-70
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 7035
Cut out dimension
291 x 291 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 500/525 m3/h
with exhaust filter at 50/60 Hz: 380/410 m3/h
with exhaust filter at 50/60 Hz: 380/410 m3/h
Approvals
CE; cURus; cULus
Typ
FC30
3156-0291-23-71
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 7035
Cut out dimension
291 x 291 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 700/630 m3/h
with exhaust filter at 50/60 Hz: 600/530 m3/h
with exhaust filter at 50/60 Hz: 600/530 m3/h
Approvals
CE; cURus; cULus
Typ
FC30
3156-0291-40-01
FixCool Filter Fan
Nominal voltage
400/460 V AC
Surface finish
RAL 9005
Cut out dimension
291 x 291 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 850/870 m3/h
with exhaust filter at 50/60 Hz: 620/640 m3/h
with exhaust filter at 50/60 Hz: 620/640 m3/h
Approvals
CE; cURus; cULus
Typ
FC30
3156-0291-40-71
FixCool Filter Fan
Nominal voltage
400/460 V AC
Surface finish
RAL 7035
Cut out dimension
291 x 291 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 850/870 m3/h
with exhaust filter at 50/60 Hz: 620/640 m3/h
with exhaust filter at 50/60 Hz: 620/640 m3/h
Approvals
CE; cURus; cULus
Typ
FC30
6319-3110-10-02
Hose-Proof Hood FC KIT
Nominal voltage
115 V AC
Protection type
IP56
Type
FC10
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 35/35 m3/h
Type
FixCool Filter Fan FC10
6319-3110-20-02
Hose-Proof Hood FC KIT
Nominal voltage
230 V AC
Protection type
IP56
Type
FC10
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 35/35 m3/h
Type
FixCool Filter Fan FC10
6319-3110-30-02
Hose-Proof Hood FC KIT
Nominal voltage
24 V DC
Protection type
IP56
Type
FC10
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 50 m³/h
Type
FixCool Filter Fan FC10
6319-3115-10-02
Hose-Proof Hood FC KIT
Nominal voltage
115 V AC
Protection type
IP56
Type
FC15
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 67/69 m³/h
Type
FixCool Filter Fan FC15
6319-3115-20-02
Hose-Proof Hood FC KIT
Nominal voltage
230 V AC
Protection type
IP56
Type
FC15
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 67/69 m³/h
Type
FixCool Filter Fan FC15
6319-3115-30-02
Hose-Proof Hood FC KIT
Nominal voltage
24 V DC
Protection type
IP56
Type
FC15
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 67 m³/h
Type
FixCool Filter Fan FC15
6319-3120-10-02
Hose-Proof Hood FC KIT
Nominal voltage
115 V AC
Protection type
IP56
Type
FC20
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 108/114 m3/h
Type
FixCool Filter Fan FC20
6319-3120-20-02
Hose-Proof Hood FC KIT
Nominal voltage
230 V AC
Protection type
IP56
Type
FC20
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 108/114 m3/h
Type
FixCool Filter Fan FC20
6319-3120-30-02
Hose-Proof Hood FC KIT
Nominal voltage
24 V DC
Protection type
IP56
Type
FC20
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 108 m3/h
Type
FixCool Filter Fan FC20
6319-3125-11-02
Hose-Proof Hood FC KIT
Nominal voltage
115 V AC
Protection type
IP56
Type
FC25
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 270/280 m3/h
Type
FixCool Filter Fan FC25
6319-3125-21-02
Hose-Proof Hood FC KIT
Nominal voltage
230 V AC
Protection type
IP56
Type
FC25
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 270/280 m3/h
Type
FixCool Filter Fan FC25
6319-3125-31-02
Hose-Proof Hood FC KIT
Nominal voltage
24 V DC
Protection type
IP56
Type
FC25
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 230 m3/h
Type
FixCool Filter Fan FC25
6319-3130-11-02
Hose-Proof Hood FC KIT
Nominal voltage
115 V AC
Protection type
IP56
Type
FC30
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 700/630 m3/h
Type
FixCool Filter Fan FC30
6319-3130-21-02
Hose-Proof Hood FC KIT
Nominal voltage
230 V AC
Protection type
IP56
Type
FC30
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 700/630 m3/h
Type
FixCool Filter Fan FC30
6319-5110-10-02
Hose-Proof Hood FC KIT
Nominal voltage
115 V AC
Protection type
IP56
Type
FC10
Material
Stainless steel no. 1.4301, PC/ABS
Unimpeded air flow
unimpeded air flow: 35/35 m3/h
Type
FixCool Filter Fan FC10
6319-5110-20-02
Hose-Proof Hood FC KIT
Nominal voltage
230 V AC
Protection type
IP56
Type
FC10
Material
Stainless steel no. 1.4301, PC/ABS
Unimpeded air flow
unimpeded air flow: 35/35 m3/h
Type
FixCool Filter Fan FC10
6319-5110-30-02
Hose-Proof Hood FC KIT
Nominal voltage
24 V DC
Protection type
IP56
Type
FC10
Material
Stainless steel no. 1.4301, PC/ABS
Unimpeded air flow
unimpeded air flow: 50 m³/h
Type
FixCool Filter Fan FC10
6319-5115-10-02
Hose-Proof Hood FC KIT
Nominal voltage
115 V AC
Protection type
IP56
Type
FC15
Material
Stainless steel no. 1.4301, PC/ABS
Unimpeded air flow
unimpeded air flow: 67/69 m³/h
Type
FixCool Filter Fan FC15
6319-5115-20-02
Hose-Proof Hood FC KIT
Nominal voltage
230 V AC
Protection type
IP56
Type
FC15
Material
Stainless steel no. 1.4301, PC/ABS
Unimpeded air flow
unimpeded air flow: 67/69 m³/h
Type
FixCool Filter Fan FC15
6319-5115-30-02
Hose-Proof Hood FC KIT
Nominal voltage
24 V DC
Protection type
IP56
Type
FC15
Material
Stainless steel no. 1.4301, PC/ABS
Unimpeded air flow
unimpeded air flow: 67 m³/h
Type
FixCool Filter Fan FC15
6319-5120-10-02
Hose-Proof Hood FC KIT
Nominal voltage
115 V AC
Protection type
IP56
Type
FC20
Material
Stainless steel no. 1.4301, PC/ABS
Unimpeded air flow
unimpeded air flow: 108/114 m3/h
Type
FixCool Filter Fan FC20
6319-5120-20-02
Hose-Proof Hood FC KIT
Nominal voltage
230 V AC
Protection type
IP56
Type
FC20
Material
Stainless steel no. 1.4301, PC/ABS
Unimpeded air flow
unimpeded air flow: 108/114 m3/h
Type
FixCool Filter Fan FC20
6319-5120-30-02
Hose-Proof Hood FC KIT
Nominal voltage
24 V DC
Protection type
IP56
Type
FC20
Material
Stainless steel no. 1.4301, PC/ABS
Unimpeded air flow
unimpeded air flow: 108 m3/h
Type
FixCool Filter Fan FC20
6319-5125-11-02
Hose-Proof Hood FC KIT
Nominal voltage
115 V AC
Protection type
IP56
Type
FC25
Material
Stainless steel no. 1.4301
Unimpeded air flow
unimpeded air flow: 270/280 m3/h
Type
FixCool Filter Fan FC25
6319-5125-21-02
Hose-Proof Hood FC KIT
Nominal voltage
230 V AC
Protection type
IP56
Type
FC25
Material
Stainless steel no. 1.4301, PC/ABS
Unimpeded air flow
unimpeded air flow: 270/280 m3/h
Type
FixCool Filter Fan FC25
6319-5125-31-02
Hose-Proof Hood FC KIT
Nominal voltage
24 V DC
Protection type
IP56
Type
FC25
Material
Stainless steel no. 1.4301, PC/ABS
Unimpeded air flow
unimpeded air flow: 230 m3/h
Type
FixCool Filter Fan FC25
6319-5130-11-02
Hose-Proof Hood FC KIT
Nominal voltage
115 V AC
Protection type
IP56
Type
FC30
Material
Stainless steel no. 1.4301, PC/ABS
Unimpeded air flow
unimpeded air flow: 700/630 m3/h
Type
FixCool Filter Fan FC30
6319-5130-21-02
Hose-Proof Hood FC KIT
Nominal voltage
230 V AC
Protection type
IP56
Type
FC30
Material
Stainless steel no. 1.4301, PC/ABS
Unimpeded air flow
unimpeded air flow: 700/630 m3/h
Type
FixCool Filter Fan FC30
3184-0150-02-12
Small Fan Heater Type HG with PTC-Resistor
Nominal voltage
115 V AC
Heater output
150 W
Approval
CE; cURus
3184-0150-02-23
Small Fan Heater Type HG with PTC-Resistor
Nominal voltage
230 V AC
Heater output
150 W
Approval
CE; cURus
3184-0250-02-12
Small Fan Heater Type HG with PTC-Resistor
Nominal voltage
115 V AC
Heater output
250 W
Approval
CE; cURus
3184-0250-02-23
Small Fan Heater Type HG with PTC-Resistor
Nominal voltage
230 V AC
Heater output
250 W
Approval
CE; cURus
3184-0400-02-12
Small Fan Heater Type HG with PTC-Resistor
Nominal voltage
115 V AC
Heater output
400 W
Approval
CE; cURus
3184-0400-02-23
Small Fan Heater Type HG with PTC-Resistor
Nominal voltage
230 V AC
Heater output
400 W
Approval
CE; cURus
3185-0010-02-00
Touch-Safe Small Heater Type CSK (Semi-Conductor) with PTC-Resistor
Nominal voltage
120 V up to 240 V AC/DC (min. 100 V, max. 265 V)
Heater output
10 W
Approval
CE; cURus
3185-0010-02-24
Touch-Safe Small Heater Type CSK (Semi-Conductor) with PTC-Resistor
Nominal voltage
24 V DC
Heater output
10 W
Approval
CE
3185-0020-02-00
Touch-Safe Small Heater Type CSK (Semi-Conductor) with PTC-Resistor
Nominal voltage
120 V up to 240 V AC/DC (min. 100 V, max. 265 V)
Heater output
20 W
Approval
CE; cURus
3185-0020-02-24
Touch-Safe Small Heater Type CSK (Semi-Conductor) with PTC-Resistor
Nominal voltage
24 V DC
Heater output
20 W
Approval
CE
3186-0050-02-00
Touch-Safe Small Heater Type CS (Semi-Conductor) with PTC-Resistor
Nominal voltage
from 120 V to 240 V AC/DC (min. 110 V, max. 265 V)
Heater output
50 W
Approval
CE; cURus
3186-0050-02-24
Touch-Safe Small Heater Type CS (Semi-Conductor) with PTC-Resistor
Nominal voltage
24 V DC
Heater output
50 W
Approval
CE
3186-0100-02-00
Touch-Safe Small Heater Type CS (Semi-Conductor) with PTC-Resistor
Nominal voltage
from 120 V to 240 V AC/DC (min. 110 V, max. 265 V)
Heater output
100 W
Approval
CE; cURus
3186-0100-02-24
Touch-Safe Small Heater Type CS (Semi-Conductor) with PTC-Resistor
Nominal voltage
24 V DC
Heater output
100 W
Approval
CE
3186-0150-02-00
Touch-Safe Small Heater Type CS (Semi-Conductor) with PTC-Resistor
Nominal voltage
from 120 V to 240 V AC/DC (min. 110 V, max. 265 V)
Heater output
150 W
Approval
CE; cURus
3186-0150-02-24
Touch-Safe Small Heater Type CS (Semi-Conductor) with PTC-Resistor
Nominal voltage
24 V DC
Heater output
150 W
Approval
CE
R:23885_871
Touch-Safe Small Heater Type CSK (Semi-Conductor) with PTC-Resistor
Nominal voltage
120 V up to 240 V AC/DC (min. 100 V, max. 265 V)
Heater output
10 W
Approval
CE; cURus
R:23885_872
Touch-Safe Small Heater Type CSK (Semi-Conductor) with PTC-Resistor
Nominal voltage
24 V DC
Heater output
10 W
Approval
CE
R:23885_873
Touch-Safe Small Heater Type CSK (Semi-Conductor) with PTC-Resistor
Nominal voltage
120 V up to 240 V AC/DC (min. 100 V, max. 265 V)
Heater output
20 W
Approval
CE; cURus
R:23885_874
Touch-Safe Small Heater Type CSK (Semi-Conductor) with PTC-Resistor
Nominal voltage
24 V DC
Heater output
20 W
Approval
CE
R:23890_875
Touch-Safe Small Heater Type CS (Semi-Conductor) with PTC-Resistor
Nominal voltage
from 120 V to 240 V AC/DC (min. 110 V, max. 265 V)
Heater output
50 W
Approval
CE; cURus
R:23890_876
Touch-Safe Small Heater Type CS (Semi-Conductor) with PTC-Resistor
Nominal voltage
24 V DC
Heater output
50 W
Approval
CE
R:23890_877
Touch-Safe Small Heater Type CS (Semi-Conductor) with PTC-Resistor
Nominal voltage
from 120 V to 240 V AC/DC (min. 110 V, max. 265 V)
Heater output
100 W
Approval
CE; cURus
R:23890_878
Touch-Safe Small Heater Type CS (Semi-Conductor) with PTC-Resistor
Nominal voltage
24 V DC
Heater output
100 W
Approval
CE
R:23890_879
Touch-Safe Small Heater Type CS (Semi-Conductor) with PTC-Resistor
Nominal voltage
from 120 V to 240 V AC/DC (min. 110 V, max. 265 V)
Heater output
150 W
Approval
CE; cURus
R:23890_880
Touch-Safe Small Heater Type CS (Semi-Conductor) with PTC-Resistor
Nominal voltage
24 V DC
Heater output
150 W
Approval
CE
R:23898_7396
Small Fan Heater Type HG with PTC-Resistor
Nominal voltage
230 V AC
Heater output
250 W
Approval
CE; cURus
R:23898_7397
Small Fan Heater Type HG with PTC-Resistor
Nominal voltage
115 V AC
Heater output
250 W
Approval
CE; cURus
R:23898_7398
Small Fan Heater Type HG with PTC-Resistor
Nominal voltage
230 V AC
Heater output
400 W
Approval
CE; cURus
R:23898_7399
Small Fan Heater Type HG with PTC-Resistor
Nominal voltage
115 V AC
Heater output
400 W
Approval
CE; cURus
R:23898_882
Small Fan Heater Type HG with PTC-Resistor
Nominal voltage
230 V AC
Heater output
150 W
Approval
CE; cURus
R:23898_883
Small Fan Heater Type HG with PTC-Resistor
Nominal voltage
115 V AC
Heater output
150 W
Approval
CE; cURus
R:23914_930
Super Flat Filter Fans
Nominal voltage
230 V AC
Protection class
IP42
Cut out dimension
122 x 122 mm
Typ
0144
R:23914_931
Super Flat Filter Fans
Nominal voltage
115 V AC
Protection class
IP42
Cut out dimension
122 x 122 mm
Typ
0144
R:23914_932
Super Flat Filter Fans
Nominal voltage
230 V AC
Protection class
IP42
Cut out dimension
138 x 138 mm
Typ
0160
R:23914_933
Super Flat Filter Fans
Nominal voltage
115 V AC
Protection class
IP42
Cut out dimension
138 x 138 mm
Typ
0160
R:23914_934
Super Flat Filter Fans
Nominal voltage
230 V AC
Protection class
IP42
Cut out dimension
292 x 292 mm
Typ
0324
R:23914_935
Super Flat Filter Fans
Nominal voltage
115 V AC
Protection class
IP42
Cut out dimension
292 x 292 mm
Typ
0324
R:23940_954
Roof-Mounted Ventilators
Nominal voltage
230 V AC
Protection class
IP43
Cut out dimension
249 x 249 mm
Approvals
Fan motor: EN 60335-1
Typ
Roof-mounted ventilator complete
R:23940_955
Roof-Mounted Ventilators
Nominal voltage
115 V AC
Protection class
IP43
Cut out dimension
249 x 249 mm
Approvals
Fan motor: EN 60335-1
Typ
Roof-mounted ventilator complete
R:23956_17529
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 9005
Cut out dimension
92 x 92 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 35/35 m3/h
with exhaust filter at 50/60 Hz: 24/24 m3/h
with exhaust filter at 50/60 Hz: 24/24 m3/h
Approvals
CE; cURus; cULus
Typ
FC10
R:23956_17530
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 7035
Cut out dimension
92 x 92 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 35/35 m3/h
with exhaust filter at 50/60 Hz: 24/24 m3/h
with exhaust filter at 50/60 Hz: 24/24 m3/h
Approvals
CE; cURus; cULus
Typ
FC10
R:23956_17531
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 9005
Cut out dimension
92 x 92 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 35/35 m3/h
with exhaust filter at 50/60 Hz: 24/24 m3/h
with exhaust filter at 50/60 Hz: 24/24 m3/h
Approvals
CE; cURus; cULus
Typ
FC10
R:23956_17532
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 7035
Cut out dimension
92 x 92 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 35/35 m3/h
with exhaust filter at 50/60 Hz: 24/24 m3/h
with exhaust filter at 50/60 Hz: 24/24 m3/h
Approvals
CE; cURus; cULus
Typ
FC10
R:23956_17533
FixCool Filter Fan
Nominal voltage
24 V DC
Surface finish
RAL 9005
Cut out dimension
92 x 92 mm
Unimpeded air flow
unimpeded air flow: 50 m3/h
with exhaust filter: 32 m3/h
with exhaust filter: 32 m3/h
Approvals
CE; cURus; cULus
Typ
FC10
R:23956_17534
FixCool Filter Fan
Nominal voltage
24 V DC
Surface finish
RAL 7035
Cut out dimension
92 x 92 mm
Unimpeded air flow
unimpeded air flow: 50 m3/h
with exhaust filter: 32 m3/h
with exhaust filter: 32 m3/h
Approvals
CE; cURus; cULus
Typ
FC10
R:23956_17535
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 9005
Cut out dimension
125 x 125 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 67/69 m3/h
with exhaust filter at 50/60 Hz: 50/52 m3/h
with exhaust filter at 50/60 Hz: 50/52 m3/h
Approvals
CE; cURus; cULus
Typ
FC15
R:23956_17536
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 7035
Cut out dimension
125 x 125 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 67/69 m3/h
with exhaust filter at 50/60 Hz: 50/52 m3/h
with exhaust filter at 50/60 Hz: 50/52 m3/h
Approvals
CE; cURus; cULus
Typ
FC15
R:23956_17537
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 9005
Cut out dimension
125 x 125 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 67/69 m3/h
with exhaust filter at 50/60 Hz: 50/52 m3/h
with exhaust filter at 50/60 Hz: 50/52 m3/h
Approvals
CE; cURus; cULus
Typ
FC15
R:23956_17538
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 7035
Cut out dimension
125 x 125 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 67/69 m3/h
with exhaust filter at 50/60 Hz: 50/52 m3/h
with exhaust filter at 50/60 Hz: 50/52 m3/h
Approvals
CE; cURus; cULus
Typ
FC15
R:23956_17539
FixCool Filter Fan
Nominal voltage
24 V DC
Surface finish
RAL 9005
Cut out dimension
125 x 125 mm
Unimpeded air flow
unimpeded air flow: 67 m3/h
with exhaust filter: 50 m3/h
with exhaust filter: 50 m3/h
Approvals
CE; cURus; cULus
Typ
FC15
R:23956_17540
FixCool Filter Fan
Nominal voltage
24 V DC
Surface finish
RAL 7035
Cut out dimension
125 x 125 mm
Unimpeded air flow
unimpeded air flow: 67 m3/h
with exhaust filter: 50 m3/h
with exhaust filter: 50 m3/h
Approvals
CE; cURus; cULus
Typ
FC15
R:23956_17541
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 9005
Cut out dimension
177 x 177 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 108/114 m3/h
with exhaust filter at 50/60 Hz: 75/82 m3/h
with exhaust filter at 50/60 Hz: 75/82 m3/h
Approvals
CE; cURus; cULus
Typ
FC20
R:23956_17542
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 7035
Cut out dimension
177 x 177 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 108/114 m3/h
with exhaust filter at 50/60 Hz: 75/82 m3/h
with exhaust filter at 50/60 Hz: 75/82 m3/h
Approvals
CE; cURus; cULus
Typ
FC20
R:23956_17543
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 9005
Cut out dimension
177 x 177 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 108/114 m3/h
with exhaust filter at 50/60 Hz: 75/82 m3/h
with exhaust filter at 50/60 Hz: 75/82 m3/h
Approvals
CE; cURus; cULus
Typ
FC20
R:23956_17544
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 7035
Cut out dimension
177 x 177 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 108/114 m3/h
with exhaust filter at 50/60 Hz: 75/82 m3/h
with exhaust filter at 50/60 Hz: 75/82 m3/h
Approvals
CE; cURus; cULus
Typ
FC20
R:23956_17545
FixCool Filter Fan
Nominal voltage
24 V DC
Surface finish
RAL 9005
Cut out dimension
177 x 177 mm
Unimpeded air flow
unimpeded air flow: 108 m3/h
with exhaust filter: 75 m3/h
with exhaust filter: 75 m3/h
Approvals
CE; cURus; cULus
Typ
FC20
R:23956_17546
FixCool Filter Fan
Nominal voltage
24 V DC
Surface finish
RAL 7035
Cut out dimension
177 x 177 mm
Unimpeded air flow
unimpeded air flow: 108 m3/h
with exhaust filter: 75 m3/h
with exhaust filter: 75 m3/h
Approvals
CE; cURus; cULus
Typ
FC20
R:23956_17547
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 9005
Cut out dimension
223 x 223 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 190/198 m3/h
with exhaust filter at 50/60 Hz: 130/138 m3/h
with exhaust filter at 50/60 Hz: 130/138 m3/h
Approvals
CE; cURus; cULus
Typ
FC25
R:23956_17548
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 7035
Cut out dimension
223 x 223 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 190/198 m3/h
with exhaust filter at 50/60 Hz: 130/138 m3/h
with exhaust filter at 50/60 Hz: 130/138 m3/h
Approvals
CE; cURus; cULus
Typ
FC25
R:23956_17549
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 9005
Cut out dimension
223 x 223 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 190/198 m3/h
with exhaust filter at 50/60 Hz: 130/138 m3/h
with exhaust filter at 50/60 Hz: 130/138 m3/h
Approvals
CE; cURus; cULus
Typ
FC25
R:23956_17550
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 7035
Cut out dimension
223 x 223 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 190/198 m3/h
with exhaust filter at 50/60 Hz: 130/138 m3/h
with exhaust filter at 50/60 Hz: 130/138 m3/h
Approvals
CE; cURus; cULus
Typ
FC25
R:23956_17551
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 9005
Cut out dimension
223 x 223 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 270/280 m3/h
with exhaust filter at 50/60 Hz: 200/210 m3/h
with exhaust filter at 50/60 Hz: 200/210 m3/h
Approvals
CE; cURus; cULus
Typ
FC25
R:23956_17552
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 7035
Cut out dimension
223 x 223 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 270/280 m3/h
with exhaust filter at 50/60 Hz: 200/210 m3/h
with exhaust filter at 50/60 Hz: 200/210 m3/h
Approvals
CE; cURus; cULus
Typ
FC25
R:23956_17553
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 9005
Cut out dimension
223 x 223 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 270/280 m3/h
with exhaust filter at 50/60 Hz: 200/210 m3/h
with exhaust filter at 50/60 Hz: 200/210 m3/h
Approvals
CE; cURus; cULus
Typ
FC25
R:23956_17554
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 7035
Cut out dimension
223 x 223 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 270/280 m3/h
with exhaust filter at 50/60 Hz: 200/210 m3/h
with exhaust filter at 50/60 Hz: 200/210 m3/h
Approvals
CE; cURus; cULus
Typ
FC25
R:23956_17555
FixCool Filter Fan
Nominal voltage
24 V DC
Surface finish
RAL 9005
Cut out dimension
223 x 223 mm
Unimpeded air flow
unimpeded air flow: 230 m3/h
with exhaust filter: 190 m3/h
with exhaust filter: 190 m3/h
Approvals
CE; cURus; cULus
Typ
FC25
R:23956_17556
FixCool Filter Fan
Nominal voltage
24 V DC
Surface finish
RAL 7035
Cut out dimension
223 x 223 mm
Unimpeded air flow
unimpeded air flow: 230 m3/h
with exhaust filter: 190 m3/h
with exhaust filter: 190 m3/h
Approvals
CE; cURus; cULus
Typ
FC25
R:23956_17557
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 9005
Cut out dimension
291 x 291 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 500/525 m3/h
with exhaust filter at 50/60 Hz: 380/410 m3/h
with exhaust filter at 50/60 Hz: 380/410 m3/h
Approvals
CE; cURus; cULus
Typ
FC30
R:23956_17558
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 7035
Cut out dimension
291 x 291 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 500/525 m3/h
with exhaust filter at 50/60 Hz: 380/410 m3/h
with exhaust filter at 50/60 Hz: 380/410 m3/h
Approvals
CE; cURus; cULus
Typ
FC30
R:23956_17559
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 9005
Cut out dimension
291 x 291 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 500/525 m3/h
with exhaust filter at 50/60 Hz: 380/410 m3/h
with exhaust filter at 50/60 Hz: 380/410 m3/h
Approvals
CE; cURus; cULus
Typ
FC30
R:23956_17560
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 7035
Cut out dimension
291 x 291 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 500/525 m3/h
with exhaust filter at 50/60 Hz: 380/410 m3/h
with exhaust filter at 50/60 Hz: 380/410 m3/h
Approvals
CE; cURus; cULus
Typ
FC30
R:23956_17561
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 9005
Cut out dimension
291 x 291 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 700/630 m3/h
with exhaust filter at 50/60 Hz: 600/530 m3/h
with exhaust filter at 50/60 Hz: 600/530 m3/h
Approvals
CE; cURus; cULus
Typ
FC30
R:23956_17562
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 7035
Cut out dimension
291 x 291 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 700/630 m3/h
with exhaust filter at 50/60 Hz: 600/530 m3/h
with exhaust filter at 50/60 Hz: 600/530 m3/h
Approvals
CE; cURus; cULus
Typ
FC30
R:23956_17563
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 9005
Cut out dimension
291 x 291 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 700/630 m3/h
with exhaust filter at 50/60 Hz: 600/530 m3/h
with exhaust filter at 50/60 Hz: 600/530 m3/h
Approvals
CE; cURus; cULus
Typ
FC30
R:23956_17564
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 7035
Cut out dimension
291 x 291 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 700/630 m3/h
with exhaust filter at 50/60 Hz: 600/530 m3/h
with exhaust filter at 50/60 Hz: 600/530 m3/h
Approvals
CE; cURus; cULus
Typ
FC30
R:23956_17565
FixCool Filter Fan
Nominal voltage
400/460 V AC
Surface finish
RAL 9005
Cut out dimension
291 x 291 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 850/870 m3/h
with exhaust filter at 50/60 Hz: 620/640 m3/h
with exhaust filter at 50/60 Hz: 620/640 m3/h
Approvals
CE; cURus; cULus
Typ
FC30
R:23956_17566
FixCool Filter Fan
Nominal voltage
400/460 V AC
Surface finish
RAL 7035
Cut out dimension
291 x 291 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 850/870 m3/h
with exhaust filter at 50/60 Hz: 620/640 m3/h
with exhaust filter at 50/60 Hz: 620/640 m3/h
Approvals
CE; cURus; cULus
Typ
FC30
R:24017_17920
Hose-Proof Hood FC KIT
Nominal voltage
24 V DC
Protection type
IP56
Type
FC10
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 50 m³/h
Type
FixCool Filter Fan FC10
R:24017_17921
Hose-Proof Hood FC KIT
Nominal voltage
24 V DC
Protection type
IP56
Type
FC15
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 67 m³/h
Type
FixCool Filter Fan FC15
R:24017_17922
Hose-Proof Hood FC KIT
Nominal voltage
24 V DC
Protection type
IP56
Type
FC20
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 108 m3/h
Type
FixCool Filter Fan FC20
R:24017_17923
Hose-Proof Hood FC KIT
Nominal voltage
24 V DC
Protection type
IP56
Type
FC25
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 230 m3/h
Type
FixCool Filter Fan FC25
R:24017_17924
Hose-Proof Hood FC KIT
Nominal voltage
24 V DC
Protection type
IP56
Type
FC10
Material
Stainless steel no. 1.4301, PC/ABS
Unimpeded air flow
unimpeded air flow: 50 m³/h
Type
FixCool Filter Fan FC10
R:24017_17925
Hose-Proof Hood FC KIT
Nominal voltage
24 V DC
Protection type
IP56
Type
FC15
Material
Stainless steel no. 1.4301, PC/ABS
Unimpeded air flow
unimpeded air flow: 67 m³/h
Type
FixCool Filter Fan FC15
R:24017_17926
Hose-Proof Hood FC KIT
Nominal voltage
24 V DC
Protection type
IP56
Type
FC20
Material
Stainless steel no. 1.4301, PC/ABS
Unimpeded air flow
unimpeded air flow: 108 m3/h
Type
FixCool Filter Fan FC20
R:24017_17927
Hose-Proof Hood FC KIT
Nominal voltage
24 V DC
Protection type
IP56
Type
FC25
Material
Stainless steel no. 1.4301, PC/ABS
Unimpeded air flow
unimpeded air flow: 230 m3/h
Type
FixCool Filter Fan FC25
R:24017_17928
Hose-Proof Hood FC KIT
Nominal voltage
115 V AC
Protection type
IP56
Type
FC10
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 35/35 m3/h
Type
FixCool Filter Fan FC10
R:24017_17929
Hose-Proof Hood FC KIT
Nominal voltage
115 V AC
Protection type
IP56
Type
FC15
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 67/69 m³/h
Type
FixCool Filter Fan FC15
R:24017_17930
Hose-Proof Hood FC KIT
Nominal voltage
115 V AC
Protection type
IP56
Type
FC20
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 108/114 m3/h
Type
FixCool Filter Fan FC20
R:24017_17931
Hose-Proof Hood FC KIT
Nominal voltage
115 V AC
Protection type
IP56
Type
FC25
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 270/280 m3/h
Type
FixCool Filter Fan FC25
R:24017_17932
Hose-Proof Hood FC KIT
Nominal voltage
115 V AC
Protection type
IP56
Type
FC30
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 700/630 m3/h
Type
FixCool Filter Fan FC30
R:24017_17933
Hose-Proof Hood FC KIT
Nominal voltage
115 V AC
Protection type
IP56
Type
FC10
Material
Stainless steel no. 1.4301, PC/ABS
Unimpeded air flow
unimpeded air flow: 35/35 m3/h
Type
FixCool Filter Fan FC10
R:24017_17934
Hose-Proof Hood FC KIT
Nominal voltage
115 V AC
Protection type
IP56
Type
FC15
Material
Stainless steel no. 1.4301, PC/ABS
Unimpeded air flow
unimpeded air flow: 67/69 m³/h
Type
FixCool Filter Fan FC15
R:24017_17935
Hose-Proof Hood FC KIT
Nominal voltage
115 V AC
Protection type
IP56
Type
FC20
Material
Stainless steel no. 1.4301, PC/ABS
Unimpeded air flow
unimpeded air flow: 108/114 m3/h
Type
FixCool Filter Fan FC20
R:24017_17936
Hose-Proof Hood FC KIT
Nominal voltage
115 V AC
Protection type
IP56
Type
FC25
Material
Stainless steel no. 1.4301
Unimpeded air flow
unimpeded air flow: 270/280 m3/h
Type
FixCool Filter Fan FC25
R:24017_17937
Hose-Proof Hood FC KIT
Nominal voltage
115 V AC
Protection type
IP56
Type
FC30
Material
Stainless steel no. 1.4301, PC/ABS
Unimpeded air flow
unimpeded air flow: 700/630 m3/h
Type
FixCool Filter Fan FC30
R:24017_17938
Hose-Proof Hood FC KIT
Nominal voltage
230 V AC
Protection type
IP56
Type
FC10
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 35/35 m3/h
Type
FixCool Filter Fan FC10
R:24017_17939
Hose-Proof Hood FC KIT
Nominal voltage
230 V AC
Protection type
IP56
Type
FC15
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 67/69 m³/h
Type
FixCool Filter Fan FC15
R:24017_17940
Hose-Proof Hood FC KIT
Nominal voltage
230 V AC
Protection type
IP56
Type
FC20
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 108/114 m3/h
Type
FixCool Filter Fan FC20
R:24017_17941
Hose-Proof Hood FC KIT
Nominal voltage
230 V AC
Protection type
IP56
Type
FC25
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 270/280 m3/h
Type
FixCool Filter Fan FC25
R:24017_17942
Hose-Proof Hood FC KIT
Nominal voltage
230 V AC
Protection type
IP56
Type
FC30
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 700/630 m3/h
Type
FixCool Filter Fan FC30
R:24017_17943
Hose-Proof Hood FC KIT
Nominal voltage
230 V AC
Protection type
IP56
Type
FC10
Material
Stainless steel no. 1.4301, PC/ABS
Unimpeded air flow
unimpeded air flow: 35/35 m3/h
Type
FixCool Filter Fan FC10
R:24017_17944
Hose-Proof Hood FC KIT
Nominal voltage
230 V AC
Protection type
IP56
Type
FC15
Material
Stainless steel no. 1.4301, PC/ABS
Unimpeded air flow
unimpeded air flow: 67/69 m³/h
Type
FixCool Filter Fan FC15
R:24017_17945
Hose-Proof Hood FC KIT
Nominal voltage
230 V AC
Protection type
IP56
Type
FC20
Material
Stainless steel no. 1.4301, PC/ABS
Unimpeded air flow
unimpeded air flow: 108/114 m3/h
Type
FixCool Filter Fan FC20
R:24017_17946
Hose-Proof Hood FC KIT
Nominal voltage
230 V AC
Protection type
IP56
Type
FC25
Material
Stainless steel no. 1.4301, PC/ABS
Unimpeded air flow
unimpeded air flow: 270/280 m3/h
Type
FixCool Filter Fan FC25
R:24017_17947
Hose-Proof Hood FC KIT
Nominal voltage
230 V AC
Protection type
IP56
Type
FC30
Material
Stainless steel no. 1.4301, PC/ABS
Unimpeded air flow
unimpeded air flow: 700/630 m3/h
Type
FixCool Filter Fan FC30
R:24046_961
Air-To-Air Heat Exchangers
Typ
Kleinst-WT
Cooling capacity
6 W/K
Nominal voltage
230 V AC
Approval
CE
Mounting
partial mounting
R:24046_963
Air-To-Air Heat Exchangers
Typ
Mini-Mini 220
Cooling capacity
8,8 W/K
Nominal voltage
230 V AC
Approval
CE
Mounting
external/internal installation
R:24046_964
Air-To-Air Heat Exchangers
Typ
Kompakt superflach 350
Cooling capacity
14 W/K
Nominal voltage
230 V AC
Approval
CE
Mounting
external/internal installation
R:24046_965
Air-To-Air Heat Exchangers
Typ
Kompakt 500
Cooling capacity
20 W/K
Nominal voltage
230 V AC
Approval
CE
Mounting
external/internal installation
R:24046_966
Air-To-Air Heat Exchangers
Typ
Kompakt 750
Cooling capacity
30 W/K
Nominal voltage
230 V AC
Approval
CE
Mounting
external/internal installation
R:24046_967
Air-To-Air Heat Exchangers
Typ
Standard 1150
Cooling capacity
46 W/K
Nominal voltage
230 V AC
Approval
CE
Mounting
external/internal installation
R:24046_968
Air-To-Air Heat Exchangers
Typ
SH2000
Cooling capacity
80 W/K
Nominal voltage
230 V AC
Approval
CE
Mounting
external/internal installation
R:24046_969
Air-To-Air Heat Exchangers
Typ
SH3250
Cooling capacity
130 W/K
Nominal voltage
230 V AC
Approval
CE
Mounting
external/internal installation
R:24055_970
Roof-Mounted Air-To-Air Heat Exchanger
Typ
DW1600
Cooling capacity
64 W/K
Nominal voltage
230 V AC
Approval
CE
Mounting
roof-mounted
R:24057_971
Air-To-Water Heat Exchanger
Typ
WW700
Cooling capacity
L35-W10/400l/h: 800 W / 200l/h: 700 W
Nominal voltage
230 V AC
Approval
bei 50/60 Hz: CE
bei 60 Hz: cURus
bei 60 Hz: cURus
Mounting
external mounting
R:24057_972
Air-To-Water Heat Exchanger
Typ
WW700
Nominal voltage
115 V AC
Approval
bei 50/60 Hz: CE
bei 60 Hz: cURus
bei 60 Hz: cURus
Mounting
external mounting
R:24057_973
Air-To-Water Heat Exchanger
Typ
WW700
Cooling capacity
700/800/- W
Nominal voltage
230 V AC
Approval
bei 50/60 Hz: CE
bei 60 Hz: cURus
bei 60 Hz: cURus
Mounting
external mounting
R:24057_974
Air-To-Water Heat Exchanger
Typ
WW1500
Cooling capacity
1500 W (L35-W10/400 l/h) 1380 W (L35-W10/200 l/h)
Nominal voltage
230 V AC
Approval
CE
Mounting
external mounting
R:24057_975
Air-To-Water Heat Exchanger
Typ
WW2000
Cooling capacity
2000 W (L35-W10 / 400 l/h) 1700 W (L35-W10 / 200 l/h)
Nominal voltage
230 V AC
Approval
CE
Mounting
external mounting
R:24057_976
Air-To-Water Heat Exchanger
Typ
WW3500S
Cooling capacity
3200/3500/- W
Nominal voltage
230 V AC
Approval
bei 50/60 Hz: CE
bei 60 Hz: cURus
bei 60 Hz: cURus
Mounting
external mounting
R:24057_977
Air-To-Water Heat Exchanger
Typ
WW3500S
Cooling capacity
3200/3500/- W
Nominal voltage
115 V AC
Approval
bei 50/60 Hz: CE
bei 60 Hz: cURus
bei 60 Hz: cURus
Mounting
external mounting
R:24057_978
Air-To-Water Heat Exchanger
Typ
WW4000S
Cooling capacity
4300 W (L35-W10 / 400 l/h) 5000 W (L35-W10 / 800 l/h)
Nominal voltage
230 V AC
Approval
bei 50/60 Hz: CE
bei 60 Hz: cURus
bei 60 Hz: cURus
Mounting
external mounting
R:24057_979
Air-To-Water Heat Exchanger
Typ
WW4000S
Cooling capacity
4300 W (L35-W10 / 400 l/h) 5000 W (L35-W10 / 800 l/h)
Nominal voltage
115 V AC
Approval
bei 50/60 Hz: CE
bei 60 Hz: cURus
bei 60 Hz: cURus
Mounting
external mounting
Assembly instructions:
CAD data and other file formats:
We need your consent
This content is provided by WSCAD GmbH. If you activate the content, personal data may be processed and cookies may be set.
Contact for products
Find your personal point of contact
We are happy to help you.
The best switch cabinets and casings are not produced on an assembly line, but rather designed in close cooperation with our customers. Are you ready to begin? Then contact your personal häwa consultant.
