Filter Fans IP 55 Protected Against Water Jets

3142-0148-02-27

Filter Fans IP 55 Protected Against Water Jets

  • Protection class IP 55
  • Maximum air flow with minimum size due to slanted filter pad position

Product description

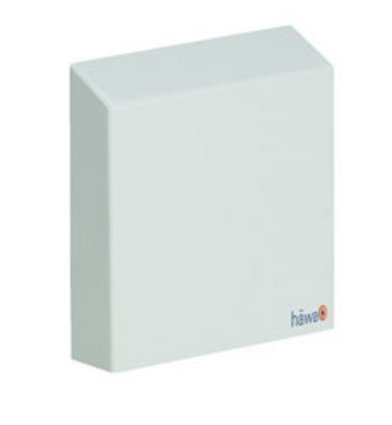

Protection cover either of powder coated sheet steel or externally brushed stainless steel.

For top mounting: protection class IP52. Depending on the mounting type, the air outlet can be adjusted to the front, sides or back.

Technical data

  • Article number: 3142-0148-02-27
  • Frequency: 50 Hz/60 Hz
  • Protection class: IP55
  • Type Rating: Type 12
  • Temperature range: from : -10 °C  to : +55 °C
  • type: 0148
  • Nominal voltage: 230 V AC
  • Material: Sheet steel
  • Motor connection: Plug connection 2.8 x 0.5 mm
  • LEISTUNGSAUFNAHME: at 50 Hz: 15 W
    at 60 Hz: 14 W
  • Authorization: CE; cURus
  • Weight: 1.1 kg
  • Dimensions: Width : 148 mm  Height : 160 mm  Depth : 40 mm
  • Noise level: at 50 Hz: 49 dB(A)
    at 60 Hz: 49 dB(A)
  • Surface: RAL 7035

Notice

  • Specified air flow data are valid for filter fans and inlet filters of the same dimensions and used with the same filter pad G4. Other motor connections or EMI/RFI-shielded versions available upon request.

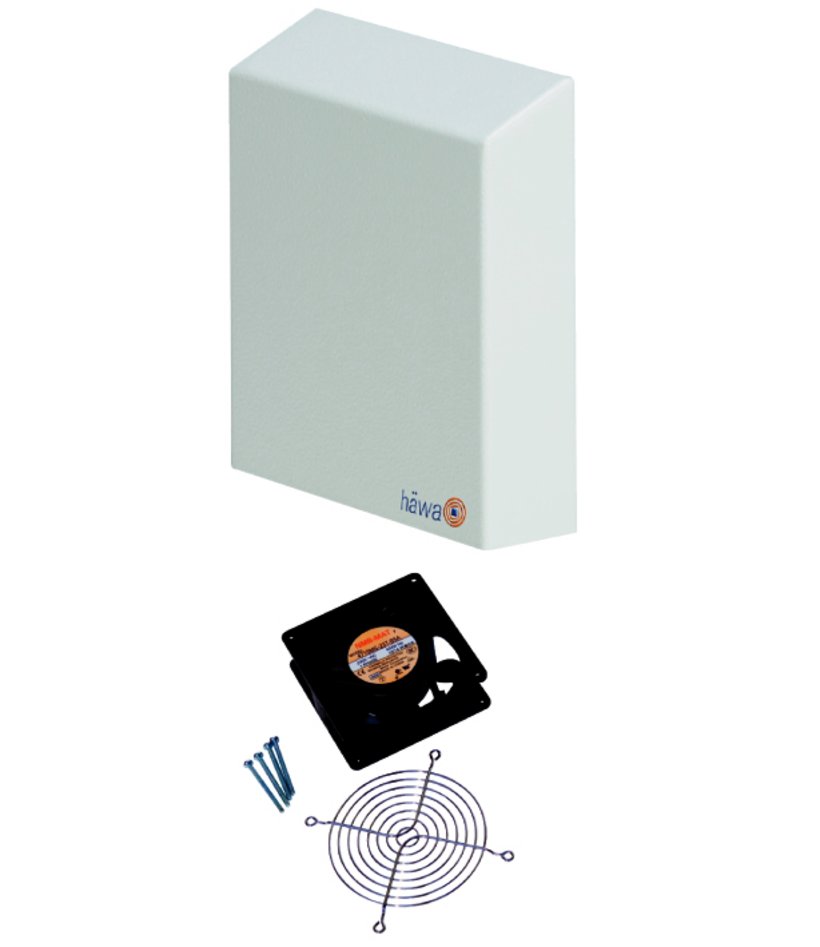

  • Filter fan: 1 ventilator, 1 contact protection guard, filter protection cover with foamed sealing, filter pad G4 and mounting hardware
Inlet Filters for IP 55 Protected Against Water Jets
3142-0148-00-07
Inlet Filters for IP 55 Protected Against Water Jets
Protection type
IP55
Approval
cURus
Type
0148
Small Compact Thermostat with Thumbwheel Setting Dial
3150-2060-02U30
Small Compact Thermostat with Thumbwheel Setting Dial
Control system
Closed con. (cooling)
Contact type
Snap-action contact
3150-0060-02-30
Contact type
Change-over
Temperature range
from: 0 °C/0 °F to: +60 °C/+140 °F
Filter Fans IP 55 Protected Against Water Jets
Filter Fans IP 55 Protected Against Water Jets
For top mounting: protection class IP52. Depending on the mounting type, the air outlet can be adjusted to the front, sides or back.

Remember
0148
Sheet steel
0148
Stainless steel
0148
Sheet steel
0148
Stainless steel
0148
Sheet steel
0148
Stainless steel
0276
Sheet steel
0276
Stainless steel
1276
Sheet steel
1276
Stainless steel
0276
Sheet steel
0276
Stainless steel
1276
Sheet steel
1276
Stainless steel
0276
Sheet steel
0276
Stainless steel
1276
Sheet steel
1276
Stainless steel
