3148-0300-02-27

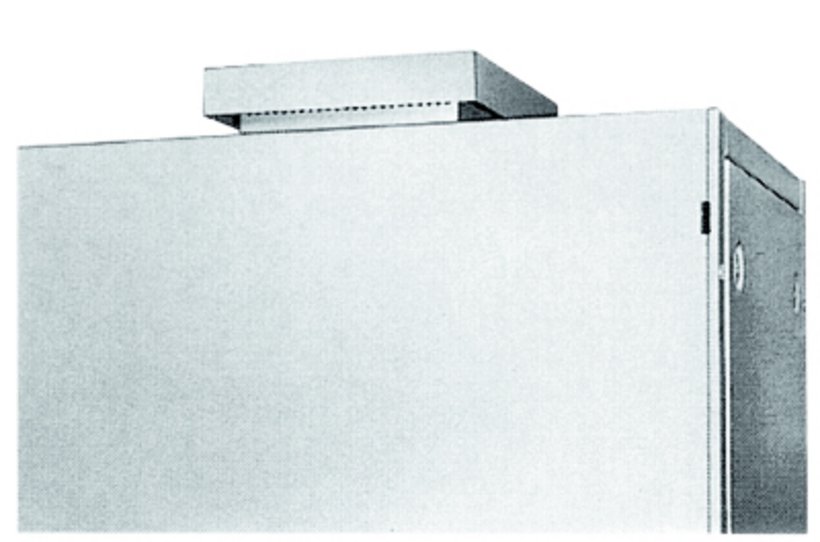

Roof-Mounted Ventilators
- Air exhaust to all 4 sides
- Space-saving design
Product description
For heat removal through top of cabinet.
Technical Data
-
Order No.: 3148-0300-02-27
-
Frequency: 50 Hz/60 Hz
-
Protection type: IP43
-
Cut-out Filter fan: 249x249 mm
-
Temperature range: from : -25 °C to : +40 °C
-
Type: Roof-mounted ventilator complete
-
Nominal voltage: 230 V AC
-
Material: housing: 1 mm sheet steel
-
Motor connection: plug-in terminal
-
Power consumption: at 50 Hz: 53 W
at 60 Hz: 51 W -
Approval: Fan motor: EN 60335-1
-
Weight: 3.6 kg
-
Dimension: Width : 330 mm Height : 77 mm Depth : 330 mm
-
Noise level: at 50 Hz: 55 dB(A)
at 60 Hz: 55 dB(A) -
Surface: housing: powder coated RAL 7035, texture finish
Notice

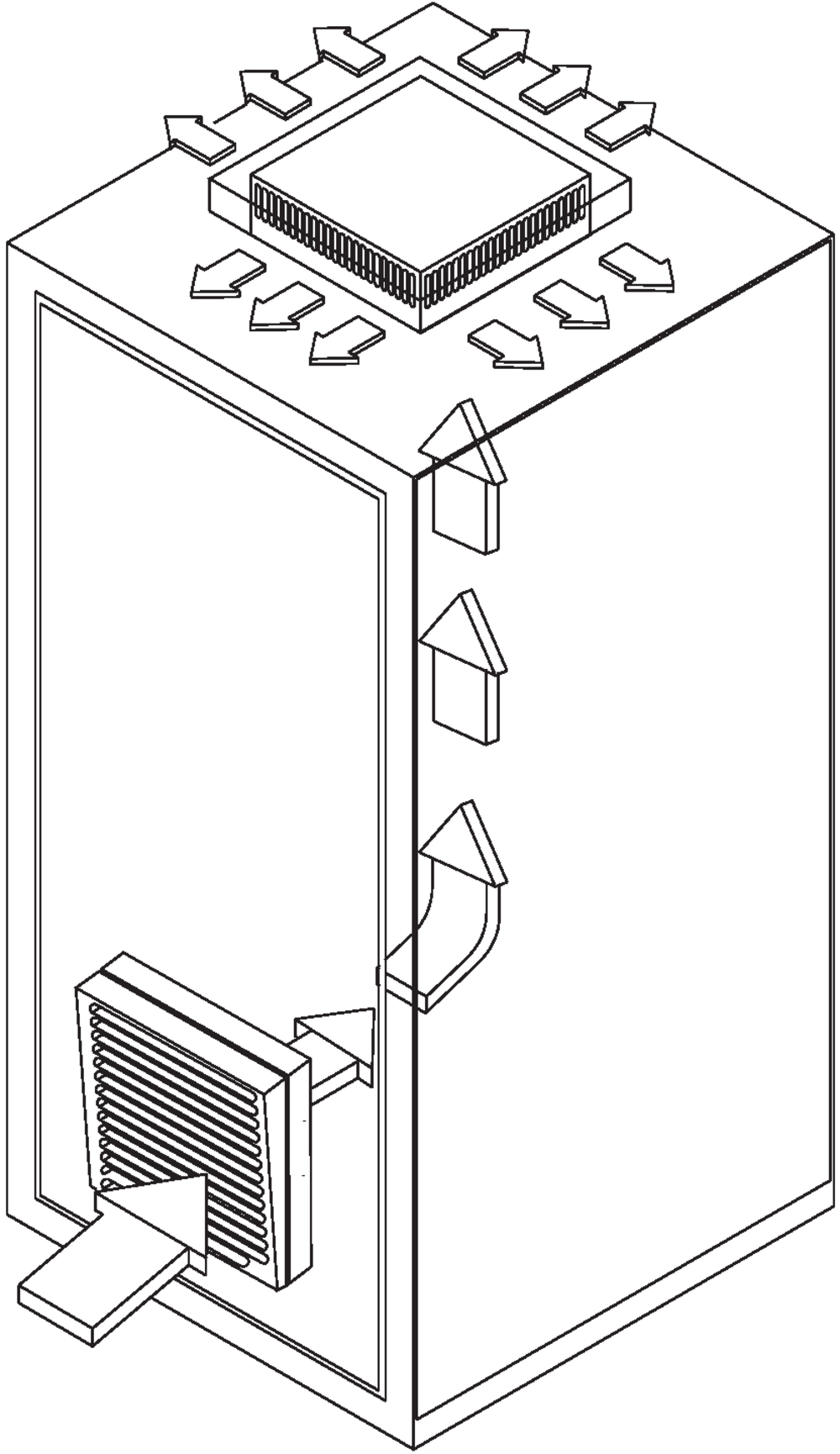

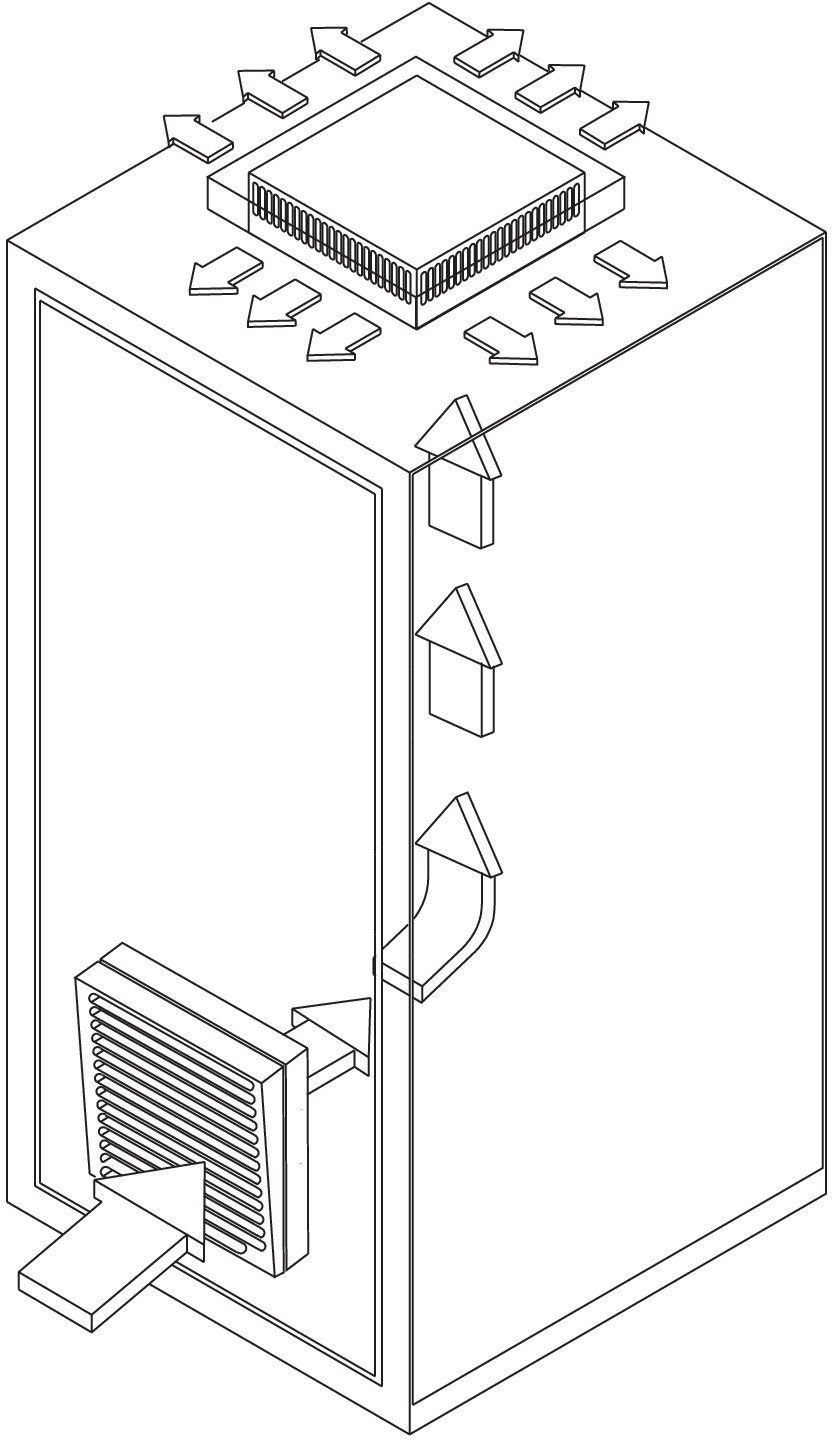

- For an air inlet, we recommend to mount an exhaust filter type 3156-0291-00-70-00 with filter pad G3 at the bottom of the cabinet.Specified air flow data are valid in combination with inlet filters size 3 and filter pad G3.Versions with special voltages are available upon request.
- Roof-mounted ventilator complete with mounting hardware or roof-mounted cover without ventilator with mounting hardware
