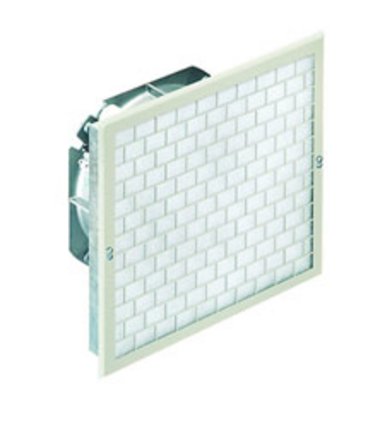

Super Flat Filter Fans

3149-0144-23-07-01

Super Flat Filter Fans

  • Super flat version, external thickness of front grid only 5 mm (0.20“)
  • Front grid removable without tools
  • Safe snap-in mounting

Product description

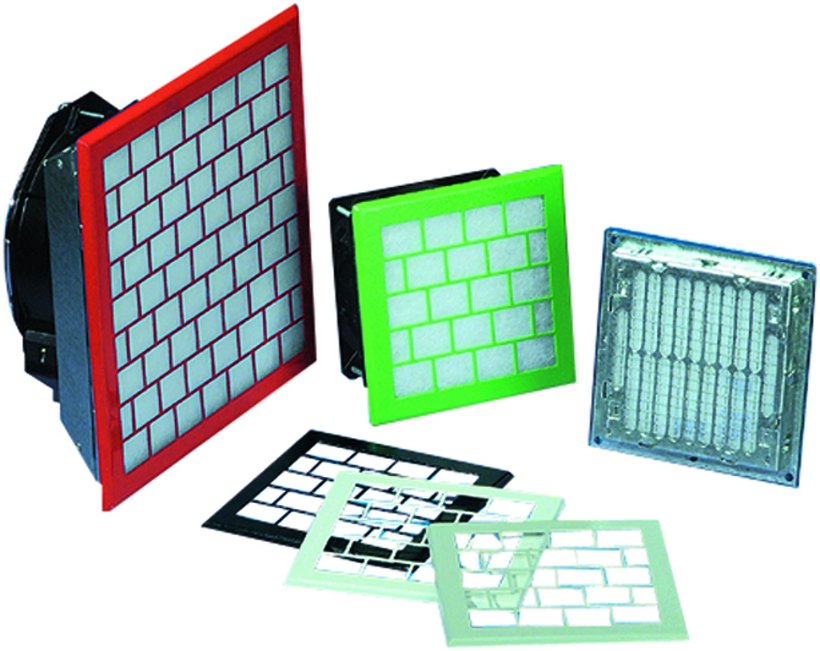

The front grid can be overpainted to match your color.

Large front grid cut-outs optimize maximum air flow, minimum noise level and visual filter status indication.

häwa’s super flat filter design makes size variations for specific applications economically feasible.

Environment-friendly, since all parts are made of galvanized sheet steel which can be easily recycled.

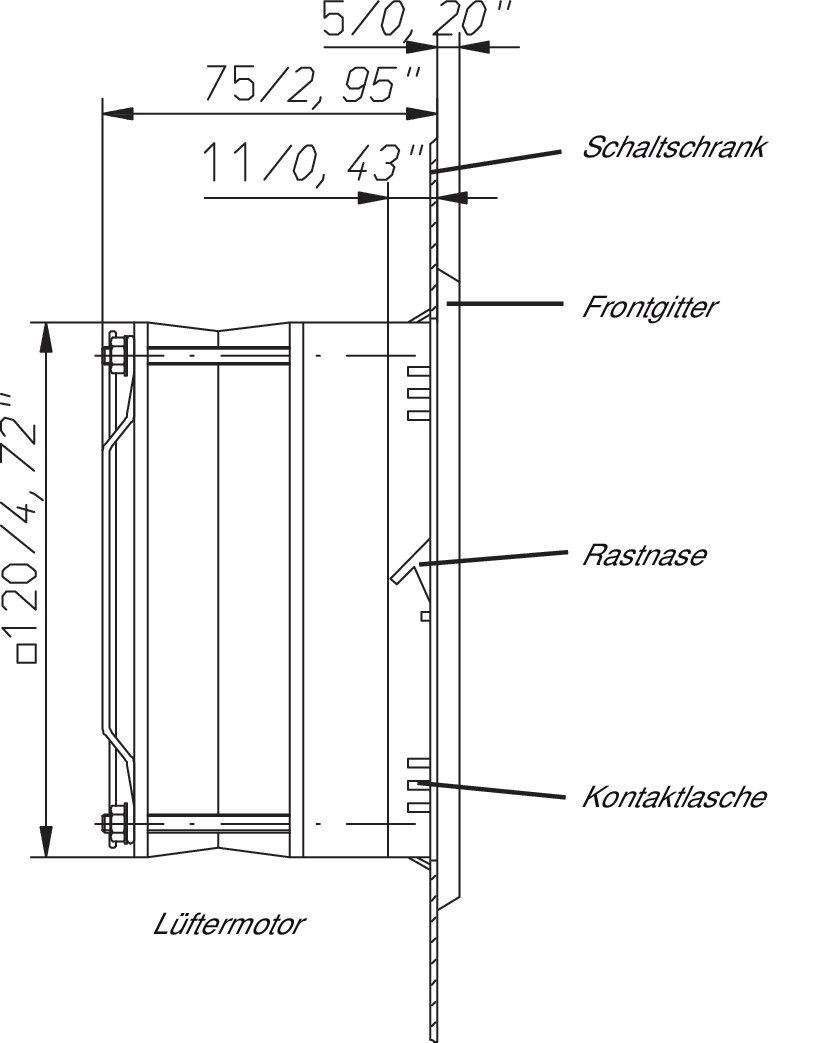

Snap-in mounting achieved with catches integrated in the filter frame.

Additional attachment is possible by using sheet metal screws.

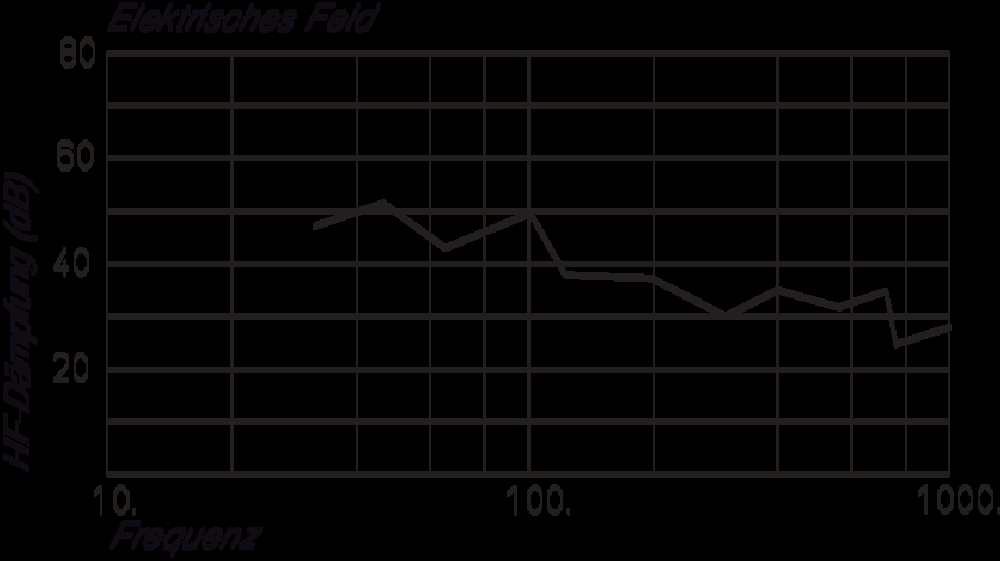

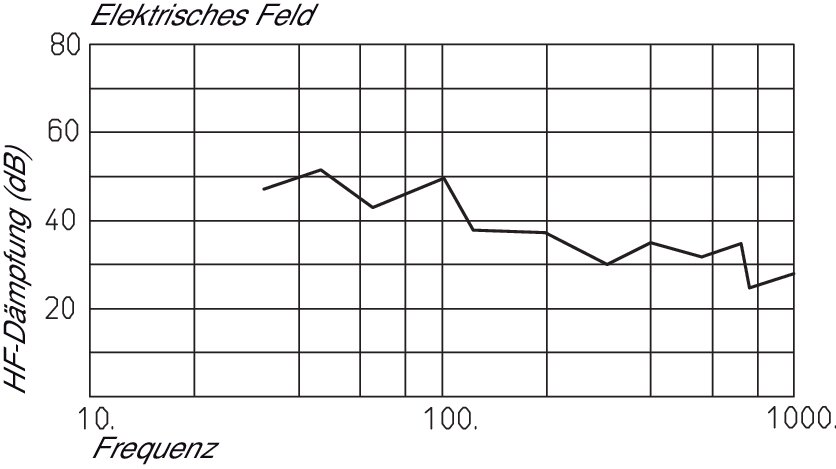

Construction of filter frame using galvanized sheet steel with integrated wire grid, catches, contact brackets assure a high degree of EMI/RFI-shielding.

Technical data

  • Article number: 3149-0144-23-07-01
  • Frequency: 50 Hz/60 Hz
  • Protection class: IP42
  • Type Rating: Type 1
  • Filter fan cut-out size: 122x122 mm/4,80x4,80"
  • Temperature range: from : -10 °C  to : +55 °C
  • type: 0144
  • Nominal voltage: 230 V AC
  • Motor connection: Plug connection 2.8 x 0.5 mm
  • LEISTUNGSAUFNAHME: at 50 Hz: 15 W
    at 60 Hz: 14 W
  • Authorization: CE; cURus
  • Weight: 0.93 kg

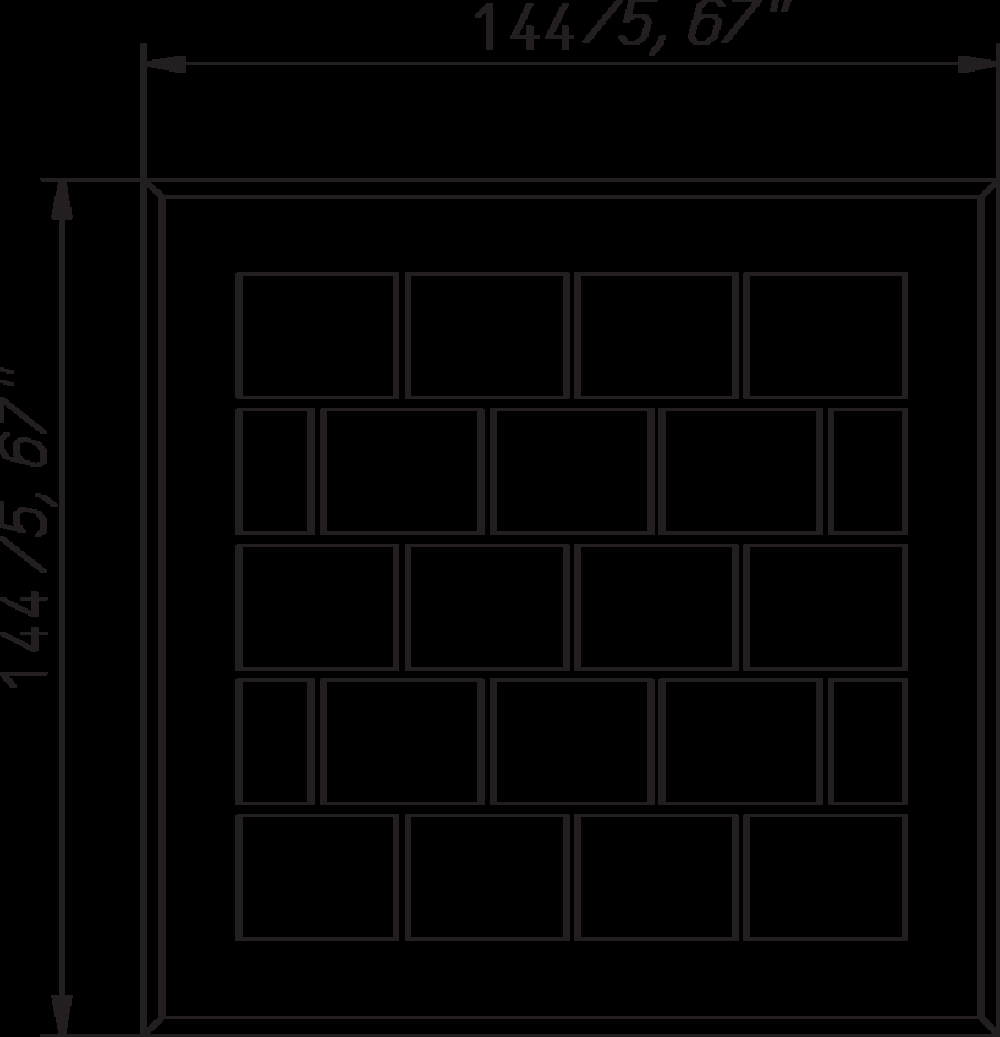

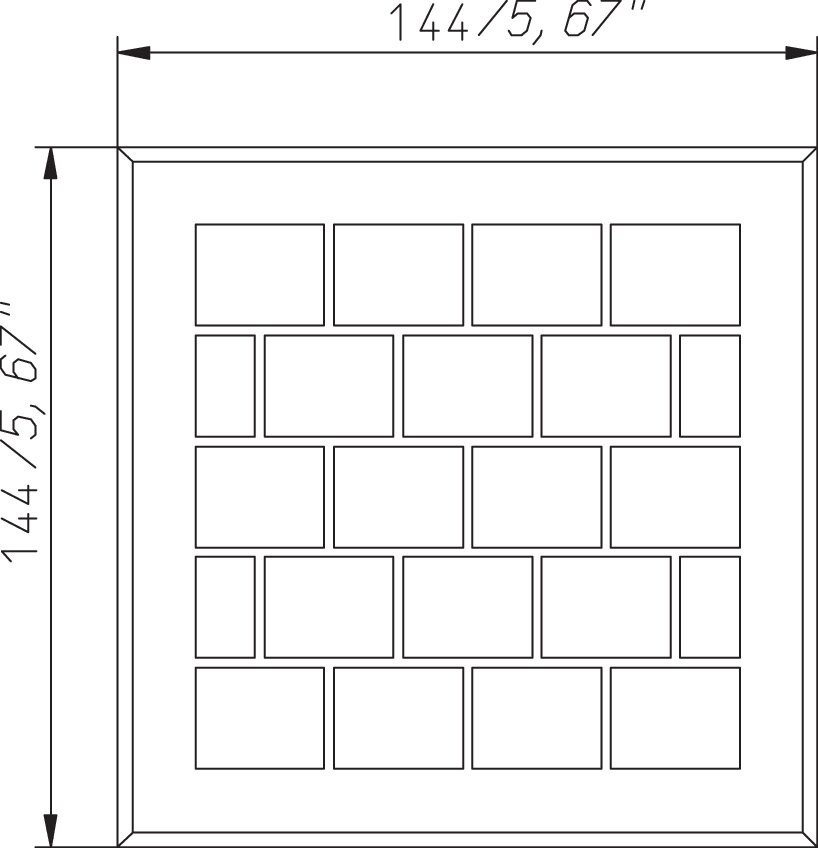

  • Dimensions: Width : 144 mm  Height : 144 mm  Depth : 80 mm
  • Noise level: at 50 Hz: 46 dB(A)
    at 60 Hz: 46 dB(A)
  • Surface: housing: galvanized, front grid: powder coated, RAL 7035

Notice

  • Specified air flow data are valid for filter fans and exhaust filters of the same dimensions and used with the same filter pad G3.
  • Other motor connections available upon request.
  • 1 super flat filter fan
  • Filter pad G3
