Product description

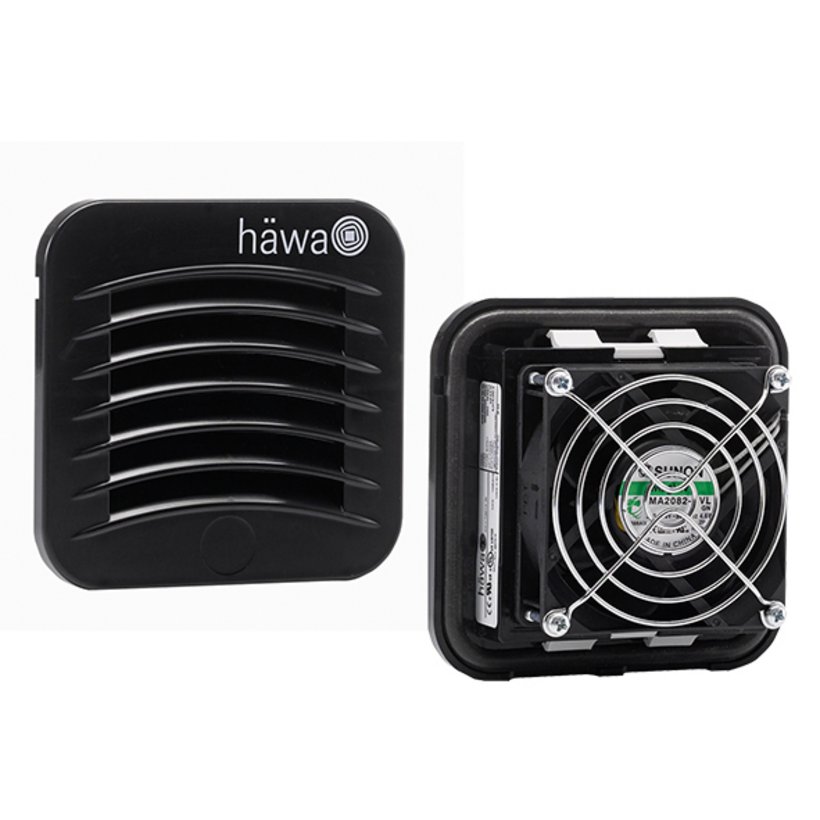

FixCool filter fan with standard filter mat and IP54 type rating in an innovative design for economical control cabinet cooling.
The front grid is made of robust, self-extinguishing plastic with seamless foamed-in seal.
Sturdy plastic clips allow quick installation and ensure a secure fit.
The electrical connection is made via spring terminals (except type FC10: strands).
Two lateral auxiliary grooves facilitate the opening of the front grid, which is simply opened to the front to change the filter pad.
Technical Data
-
Order No.: 3156-0092-23-00
-
Frequency: 50 Hz/60 Hz
-
Protection type: IP54
-
Type Rating: Type 12
-
Cut-out Filter fan: 92 x 92 mm
-
Temperature range: from : -10 °C to : +55 °C
-
Type: FC10
-
Unimpeded air flow: unimpeded air flow at 50/60 Hz: 35/35 m3/h
with exhaust filter at 50/60 Hz: 24/24 m3/h -
Nominal voltage: 230 V AC
-
Material: plastic housing:PC/ABS
-
Motor connection: Braid
-
Power consumption: at 50 Hz: 3,6 W
at 60 Hz: 3,9 W -
Approval: CE; cURus; cULus
-
Dimension: Width : 119 mm Height : 119 mm Depth : 57.5 mm
-
Noise level: 33 dB(A)
-
Surface: RAL 9005
Notice
- For wall thicknesses from 3 mm (for type FC10 / AC10 from 2 mm), use the mounting hardware included in the scope of delivery as specified in the operating instructions.
- The air output can be increased by using several or larger exhaust filters
- Other options available on request
- 1 pc. FixCool filter fan
- Filter pad G3
3156-9003-10-00-00
Replacement Filter Pads for filter fans 3156
Suitable for
Filter fan FC10 / Exhaust filter AC10
Width
85 mm
Height
76 mm
3150-2060-02U30
Small Compact Thermostat with Thumbwheel Setting Dial
Control system
Closed con. (cooling)
Contact type
Snap-action contact
3150-0060-02-30
Temperature Controller
Contact type
Change-over
Temperature range
from: 0 °C/0 °F to: +60 °C/+140 °F
3156-0092-00-00
FixCool exhaust filter
Protection class
IP54
Cut out dimension
92 x 92 mm
Approvals
cURus; cULus
Typ
AC10
