0396-4000-40-03

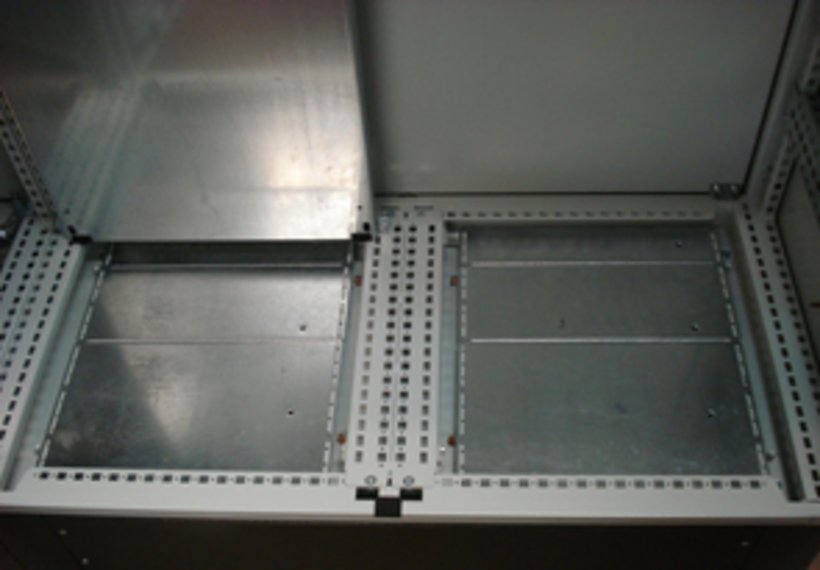

Bottom cable entry plates
- Separation of cabinet floor plate (H390/H395)
Technical Data
-
Order No.: 0396-4000-40-03
-
Dimension: Suitabel for width : 800 mm Suitable for depth : 400 mm
-
Surface: Galvanized
-
Material: Sheet steel
-
Protective ground connection: according to DIN EN 61439-1
-
Sheet thickness: 1,5 mm
Notice
- For 1000 mm wide cabinets 1 set each of 0396-4000-xx-03 and 0396-6000-xx-03 have to be combined.
- Can only be used together with center rail.
- 1 set = 3 plates with mounting hardware and gasket
0390-8016-40-07
Free-Standing cabinets Sheet steel H390, single door
Width
800 mm
Height
1600 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0390-8016-40-17
Free-Standing cabinets Sheet steel H390, single door
Width
800 mm
Height
1600 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0390-8018-40-07
Free-Standing cabinets Sheet steel H390, single door
Width
800 mm
Height
1800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0390-8018-40-17
Free-Standing cabinets Sheet steel H390, single door
Width
800 mm
Height
1800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0390-8020-40-07
Free-Standing cabinets Sheet steel H390, single door
Width
800 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0390-8020-40-17
Free-Standing cabinets Sheet steel H390, single door
Width
800 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8016-40-07
Modular cabinets Sheet steel H395, single door
Width
800 mm
Height
1600 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8016-40-17
Modular cabinets Sheet steel H395, single door
Width
800 mm
Height
1600 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8018-40-07
Modular cabinets Sheet steel H395, single door
Width
800 mm
Height
1800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8018-40-17
Modular cabinets Sheet steel H395, single door
Width
800 mm
Height
1800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8020-40-07
Modular cabinets Sheet steel H395, single door
Width
800 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8020-40-17
Modular cabinets Sheet steel H395, single door
Width
800 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
