2621-0711-10-00

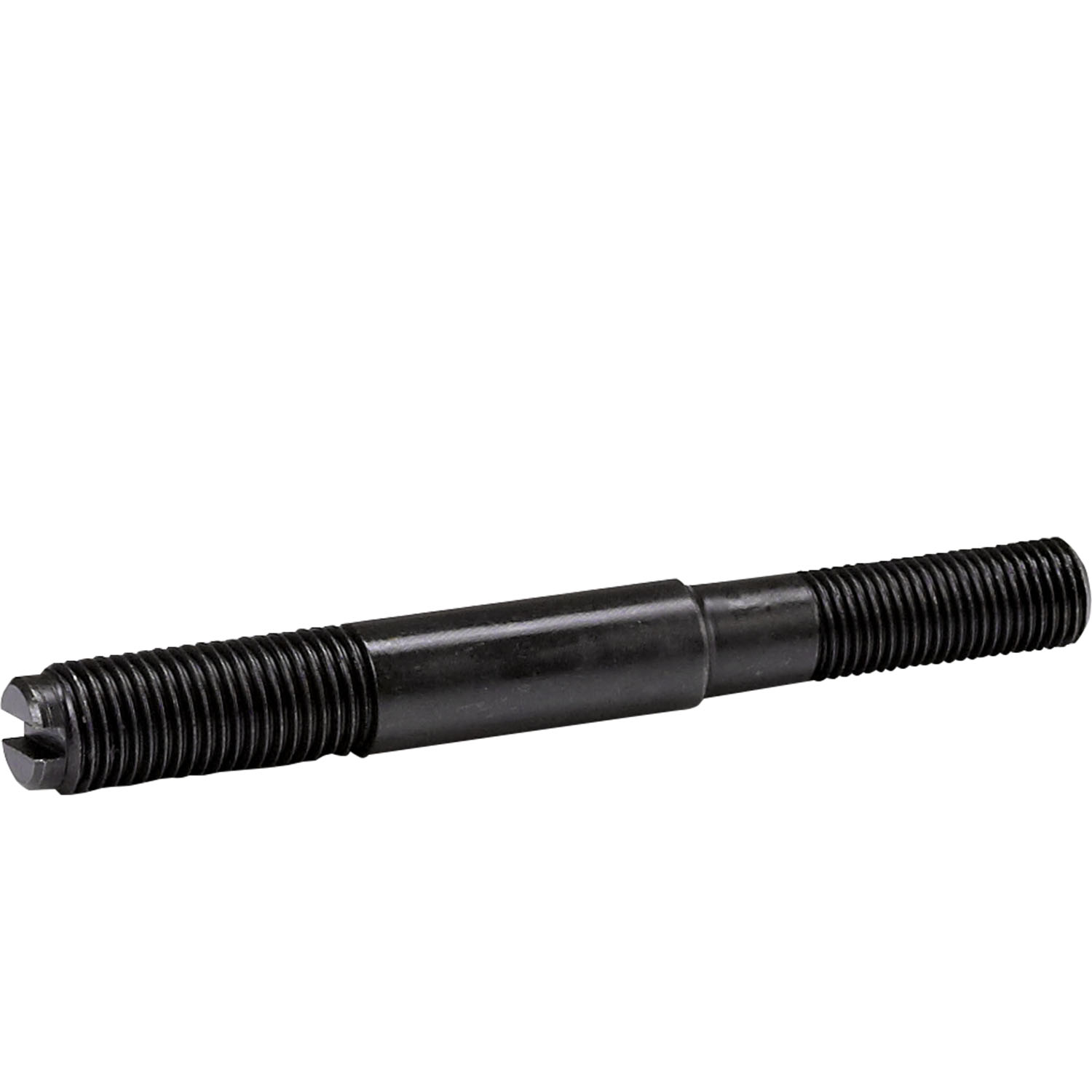

Draw Studs for Round Punches
Product description
To be used with round punches for punching cut-outs in sheet metals.
Technical Data
-
Order No.: 2621-0711-10-00
-
PRODUKTFAMILIE: for mobile devices
-
Draw stud: Ø 11,1/9,5 mm/7/16"/3/8"
-
Screw length: 95 mm
-
Pilot hole Ø: 12 mm
Notice
- You need a punching pump with a 9.5 mm /3/8” threaded screw holder.
- Also suitable for Powerman Kompakt - 2621-7100-xx-xx.
- 1 draw stud
2631-0200-15-42
Sheet Metal Shell Drill Bits
Product range
for mobile devices
Size ø
8 - 20 mm/0,31 - 0,79"
Max. sheet metal thickness
0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
Material
HSS
2631-0305-15-43
Sheet Metal Shell Drill Bits
Product range
for mobile devices
Size ø
4 - 30,5 mm/0,16 - 1,2"
Max. sheet metal thickness
0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
Material
HSS
2631-0200-35-42
Coated Sheet Metal Shell Drill Bits
Product range
for mobile devices
Size ø
8 - 20 mm/0,31 - 0,79"
Max. sheet metal thickness
0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
Material
HSS-TiAlN
2631-0350-35-43
Coated Sheet Metal Shell Drill Bits
Product range
for mobile devices
Size ø
4 - 30,5 mm/0,16 - 1,2"
Max. sheet metal thickness
0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
Material
HSS-TiAlN
2631-7800-15-45
Sheet Metal Shell Drill Bit Set
Product range
for mobile devices
Size ø
3-14 mm, 8-20 mm, 16-30,5 mm
Max. sheet metal thickness
0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
Material
HSS
2611-7600-02-00
Hydraulic Cylinder Power 25
Suitable for
Round punches up to ø 185 mm; 7.28“ / square punches 140 mm; 5.51“ / rectangular punches up to a diagonal size of 195 mm; 7.68“
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Screw receptacle
Thread M25 x 1,5
Cylinder stroke
40 mm
2621-7600-01-00
Hydraulic Cylinder 9,5/ 3/8"
Suitable for
round punches up to ø 60 mm; 2.36" / square punches 46 mm; 1.81" / rectangular punches up to 65 mm; 2.56" diagonal
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Screw receptacle
9.5 mm (3/8”) draw stud
Cylinder stroke
20 mm
2622-7200-02-00
Powerman Junior
Type
without round punches
Suitable for
round punches up to ø 50.5 mm; 1.99" / square punches up to 25.4 mm; 1" / rectangular punches up to 37.5 mm; 1.48" diagonal
Material thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Threaded for
9.5 mm (3/8”) draw stud
2622-7204-02-01
Powerman Junior
Type
with metric round punch kit
Suitable for
round punches up to ø 50.5 mm; 1.99" / square punches up to 25.4 mm; 1" / rectangular punches up to 37.5 mm; 1.48" diagonal
Material thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Threaded for
9.5 mm (3/8”) draw stud
