Product description

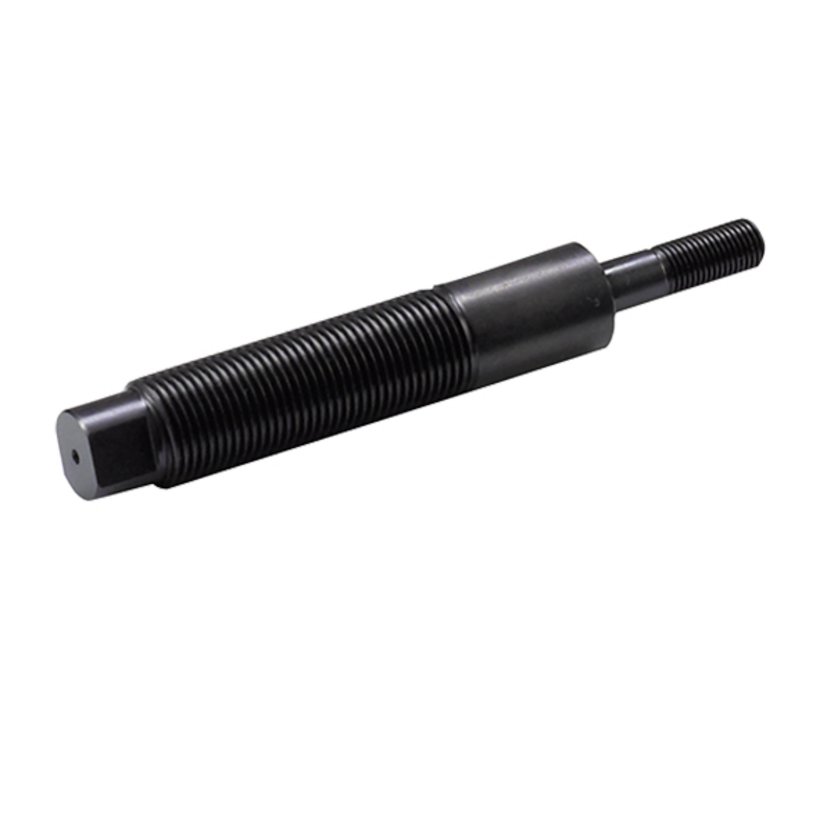

To be used with round punches for punching cut-outs in sheet metals.
Technical Data
-
Order No.: 2623-0719-00-00
-
Product range: for mobile devices
-
Draw stud: Ø 19/9,5 mm
-
Screw length: 130 mm
-
Pilot hole Ø: 20 mm
Notice
- You need a punching pump with a 9.5 mm threaded screw holder.
- Also suitable for Powerman Kompakt - 2621-7100-xx-xx.
- 1 draw stud
2631-0200-15-42
Sheet Metal Shell Drill Bits
Product range
for mobile devices
Size ø
8 - 20 mm
Max. sheet metal thickness
0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
Material
HSS
2631-0305-15-43
Sheet Metal Shell Drill Bits
Product range
for mobile devices
Size ø
4 - 30,5 mm
Max. sheet metal thickness
0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
Material
HSS
2631-0200-35-42
Coated Sheet Metal Shell Drill Bits
Product range
for mobile devices
Size ø
8 - 20 mm
Max. sheet metal thickness
0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
Material
HSS-TiAlN
2631-0350-35-43
Coated Sheet Metal Shell Drill Bits
Product range
for mobile devices
Size ø
4 - 30,5 mm
Max. sheet metal thickness
0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
Material
HSS-TiAlN
2631-7800-15-45
Sheet Metal Shell Drill Bit Set
Product range
for mobile devices
Size ø
3-14 mm, 8-20 mm, 16-30,5 mm
Max. sheet metal thickness
0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
Material
HSS
2621-7600-01-00
Hydraulic Cylinder 9,5/ 3/8"
Suitable for
round punches up to ø 60 mm / square punches 46 mm / rectangular punches up to 65 mm diagonal
Max. sheet metal thickness
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 4 mm
Screw receptacle
9.5 mm draw stud
Cylinder stroke
20 mm
