2683-0719-00-00

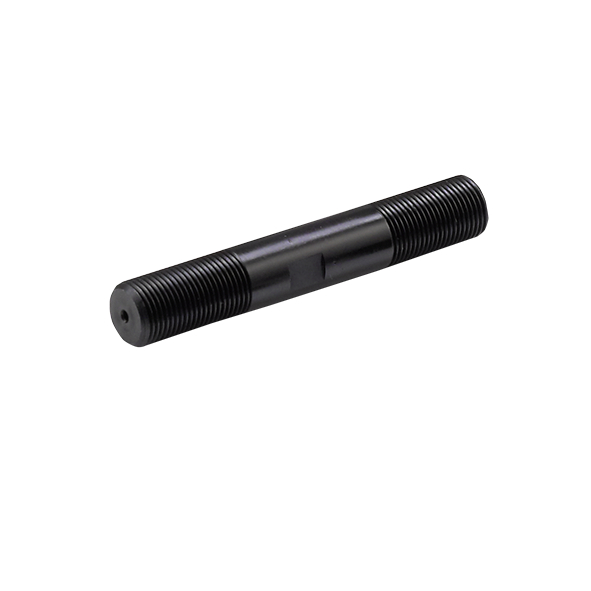

Draw Studs for Round Punches
Product description
To be used with round punches for punching cut-outs in sheet metals.
Technical Data
-
Order No.: 2683-0719-00-00
-
PRODUKTFAMILIE: for mobile devices
-
Draw stud: Ø 19/19 mm/3/4"/3/4"
-
Screw length: 135 mm
-
Pilot hole Ø: 20 mm
Notice
- You require a pump threaded for 19 mm; 3/4” draw studs to operate the punch.
- Draw stud with 9.5 mm/3/8” internal thread on one side.
- 1 draw stud
2631-0200-15-42
Sheet Metal Shell Drill Bits
Product range
for mobile devices
Size ø
8 - 20 mm/0,31 - 0,79"
Max. sheet metal thickness
0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
Material
HSS
2631-0305-15-43
Sheet Metal Shell Drill Bits
Product range
for mobile devices
Size ø
4 - 30,5 mm/0,16 - 1,2"
Max. sheet metal thickness
0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
Material
HSS
2631-0200-35-42
Coated Sheet Metal Shell Drill Bits
Product range
for mobile devices
Size ø
8 - 20 mm/0,31 - 0,79"
Max. sheet metal thickness
0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
Material
HSS-TiAlN
2631-0350-35-43
Coated Sheet Metal Shell Drill Bits
Product range
for mobile devices
Size ø
4 - 30,5 mm/0,16 - 1,2"
Max. sheet metal thickness
0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
Material
HSS-TiAlN
2631-7800-15-45
Sheet Metal Shell Drill Bit Set
Product range
for mobile devices
Size ø
3-14 mm, 8-20 mm, 16-30,5 mm
Max. sheet metal thickness
0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
Material
HSS
2684-7100-01-01
Powerman
Suitable for
round punches up to ø 120 mm; 4.72" / square punches 92 mm; 3.62" / rectangular punches up to 138 mm; 5.43" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Threaded for
19 mm (3/4”) draw studs
2684-7600-01-00
Hydraulic Cylinder 19 (3/4”)
Suitable for
round punches up to ø 120 mm; 4.72" / square punches 92 mm; 3.62" / rectangular punches up to 138 mm; 5.43" diagonal
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Screw receptacle
19 mm (3/4”) draw studs
Cylinder stroke
28 mm
