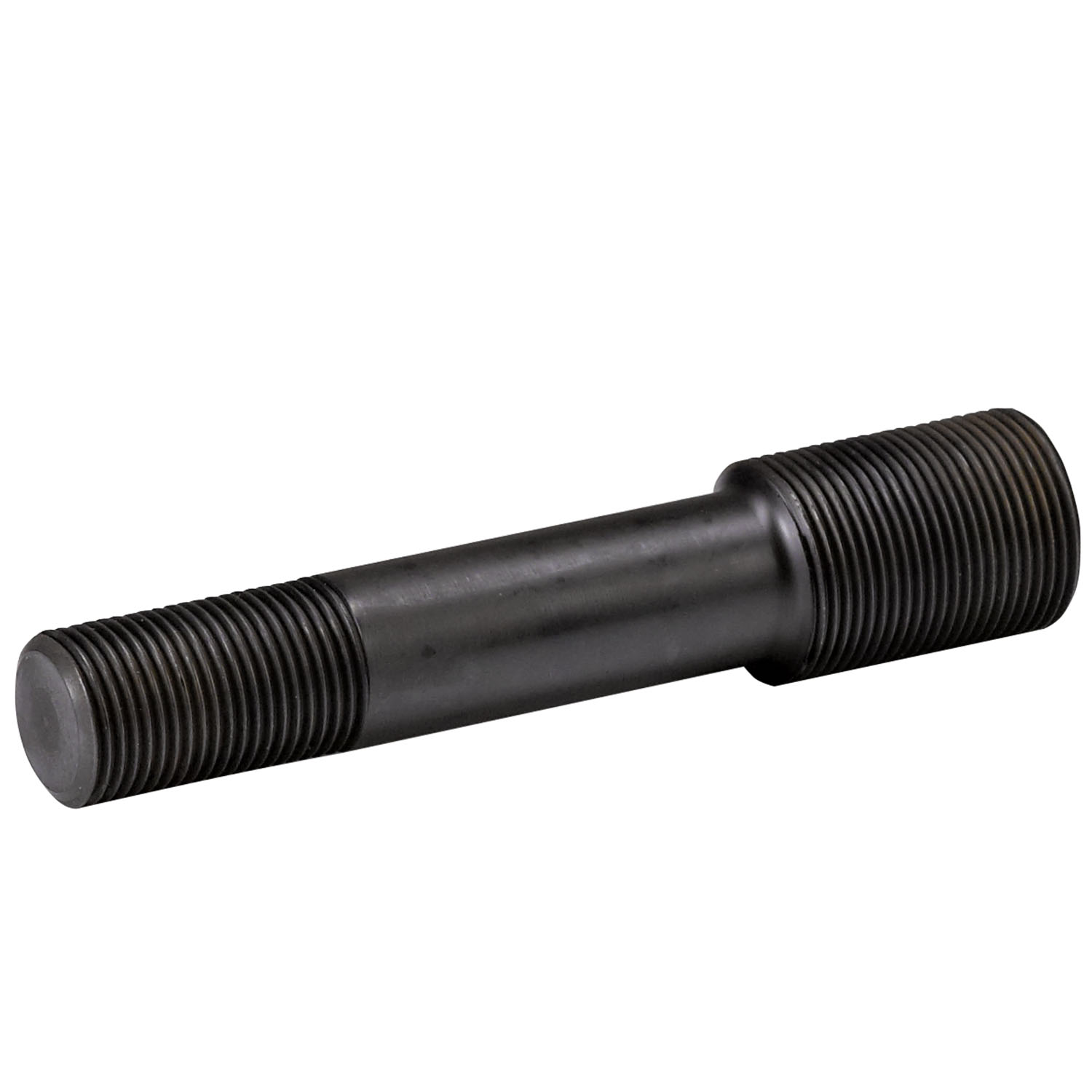

Product description
To be used with round punches for punching cut-outs in sheet metals.
Technical Data
-
Order No.: 2683-0725-19-00
-
Product range: for mobile devices
-
Draw stud: Ø 25/19 mm
-
Screw length: 120 mm
-
Pilot hole Ø: 20 mm
Notice
- Suitable for the discontinued 15.8 mm square hole.
- 1 draw stud
2631-0200-15-42
Sheet Metal Shell Drill Bits
Product range
for mobile devices
Size ø
8 - 20 mm
Max. sheet metal thickness
0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
Material
HSS
2631-0305-15-43
Sheet Metal Shell Drill Bits
Product range
for mobile devices
Size ø
4 - 30,5 mm
Max. sheet metal thickness
0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
Material
HSS
2631-0200-35-42
Coated Sheet Metal Shell Drill Bits
Product range
for mobile devices
Size ø
8 - 20 mm
Max. sheet metal thickness
0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
Material
HSS-TiAlN
2631-0350-35-43
Coated Sheet Metal Shell Drill Bits
Product range
for mobile devices
Size ø
4 - 30,5 mm
Max. sheet metal thickness
0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
Material
HSS-TiAlN
2631-7800-15-45
Sheet Metal Shell Drill Bit Set
Product range
for mobile devices
Size ø
3-14 mm, 8-20 mm, 16-30,5 mm
Max. sheet metal thickness
0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
Material
HSS
2611-7600-02-00
Hydraulic Cylinder Power 25
Suitable for
Round punches up to ø 185 mm / square punches 140 mm / rectangular punches up to a diagonal size of 195 mm
Max. sheet metal thickness
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 4 mm
Screw receptacle
Thread M25 x 1,5
Cylinder stroke
40 mm
