2631-0200-35-42

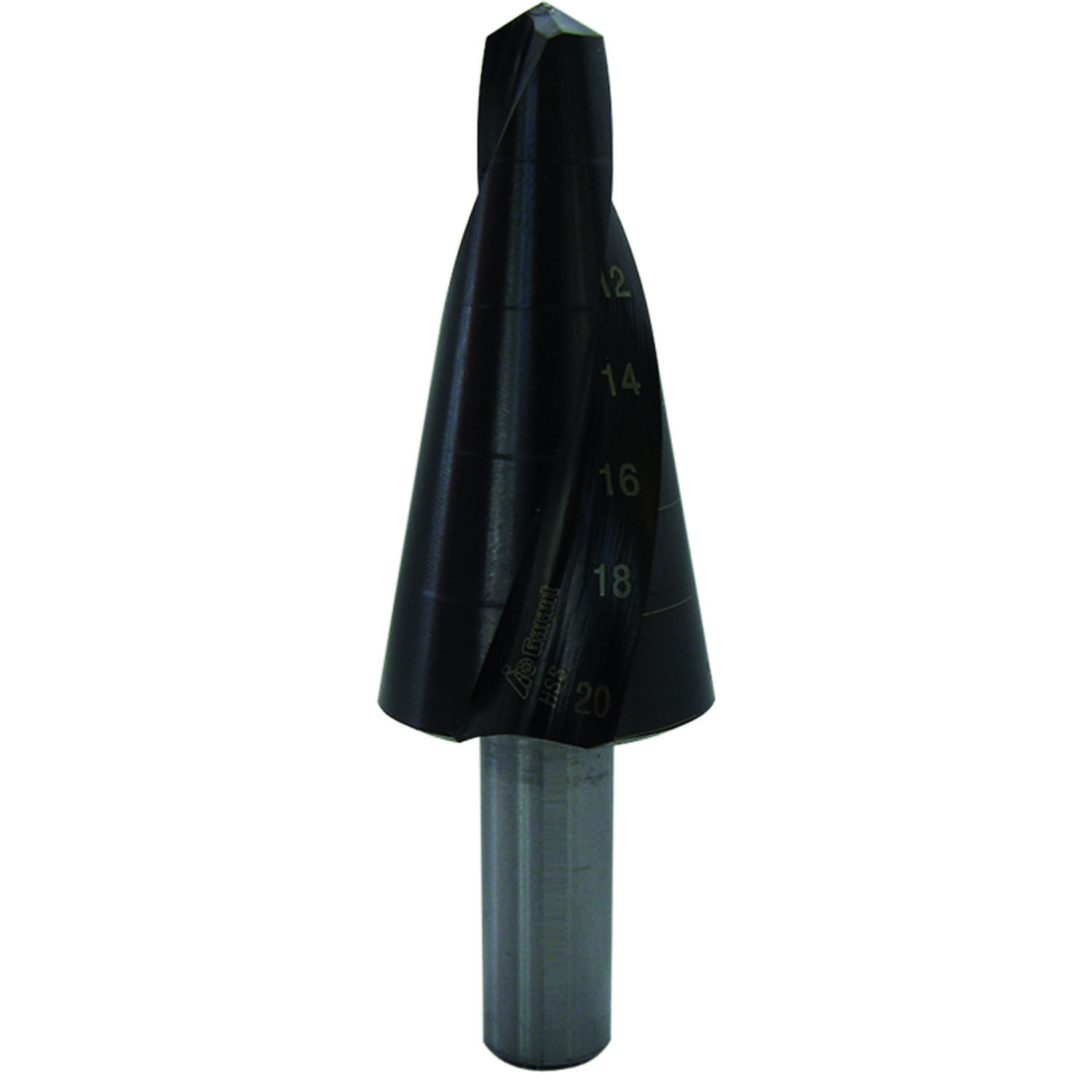

Coated Sheet Metal Shell Drill Bits
Product description
For burr-free and chatter mark-free drilling.
No pre-drilling required due to sharp drill tip.
Spiral grooved for safe chip disposal.
Diameter dimensions are specified in the groove.
Shaft with three surfaces.
Prolonged lifetime compared to non-coated versions! Higher cutting speed due to coating.
Technical Data
-
Order No.: 2631-0200-35-42
-
Max. sheet metal thickness: 0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
-
PRODUKTFAMILIE: for mobile devices
-
Material: HSS-TiAlN
-
Size: 8 - 20 mm/0,31 - 0,79"
Notice
- Drill with TiAIN-coating MUST NOT be lubricated!
- 1 sheet metal shell drill bit
2621-0711-10-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 11,1/9,5 mm/7/16"/3/8"
Screw length
95 mm
2622-0719-02-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 19/9,5 mm/3/4"/3/8"
Screw length
130 mm
2623-0706-30-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 6,3/9,5 mm/3/8"/3/8"
Screw length
82 mm
2623-0710-00-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 9,5/9,5 mm/3/8"/3/8"
Screw length
100 mm
2623-0719-00-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 19/9,5 mm/3/4"/3/8"
Screw length
130 mm
2624-0710-00-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 9,5/9,5 mm/3/8"/3/8"
Screw length
87 mm
2624-0711-19-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 11,1/19 mm/7/16"/3/4"
Screw length
100 mm
2624-0719-00-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 19/19 mm/3/4"/3/4"
Screw length
120 mm
2683-0710-00-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 9,5/9,5 mm/3/8"/3/8"
Screw length
72 mm
2683-0719-00-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 19/19 mm/3/4"/3/4"
Screw length
135 mm
2683-0725-19-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 25/19 mm/M25/3/4"
Screw length
120 mm
2684-0711-19-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 11,1/19 mm/7/16"/3/4"
Screw length
112 mm
2683-1710-62-00
Draw Stud for Manual Operation
Product range
for mobile devices
Type
with ball bearing
Size
9,5 x 53 mm/0,37 x 2,09"
Wrench Size
17 mm
2683-1711-50-00
Draw Stud for Manual Operation
Product range
for mobile devices
Type
with ball bearing
Size
11,1 x 50
Wrench Size
17 mm
2683-1719-75-00
Draw Stud for Manual Operation
Product range
for mobile devices
Type
with ball bearing
Size
19 x 75 mm
Wrench Size
27 mm
Assembly instructions:
