2624-0710-00-00

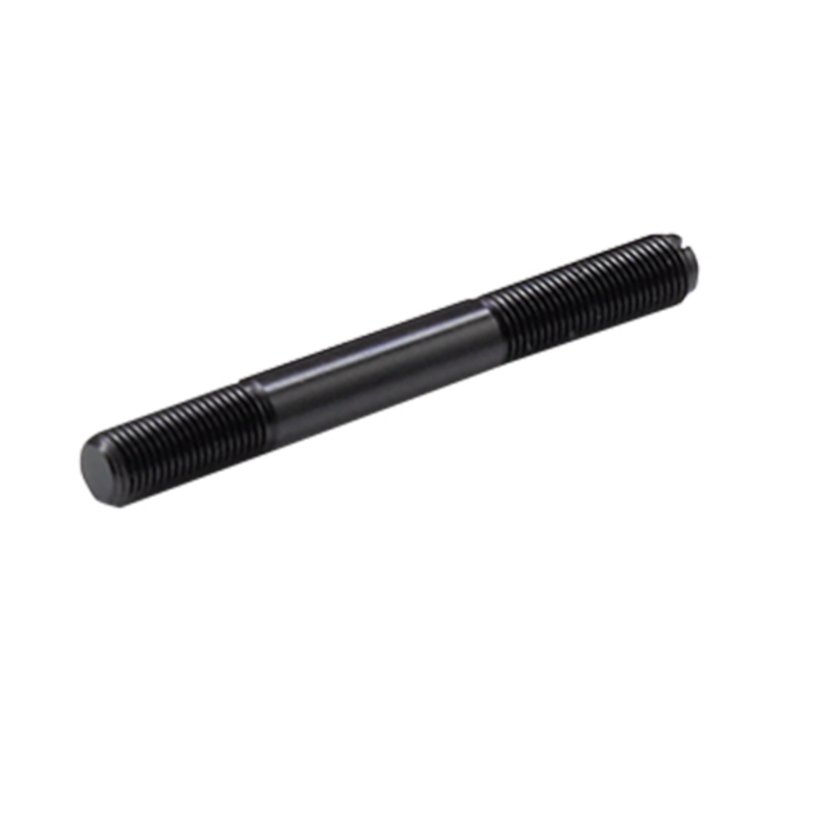

Draw Studs for Round Punches
Product description
To be used with round punches for punching cut-outs in sheet metals.
Technical Data
-
Order No.: 2624-0710-00-00
-
PRODUKTFAMILIE: for mobile devices
-
Draw stud: Ø 9,5/9,5 mm
-
Screw length: 87 mm
-
Pilot hole Ø: 10.5 mm
Notice
- You need a punching pump with 9.5 mm threaded screw holder.
- 1 draw stud
2631-0200-15-42
Sheet Metal Shell Drill Bits
Product range
for mobile devices
Size ø
8 - 20 mm
Max. sheet metal thickness
0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
Material
HSS
2631-0305-15-43
Sheet Metal Shell Drill Bits
Product range
for mobile devices
Size ø
4 - 30,5 mm
Max. sheet metal thickness
0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
Material
HSS
2631-0200-35-42
Coated Sheet Metal Shell Drill Bits
Product range
for mobile devices
Size ø
8 - 20 mm
Max. sheet metal thickness
0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
Material
HSS-TiAlN
2631-0350-35-43
Coated Sheet Metal Shell Drill Bits
Product range
for mobile devices
Size ø
4 - 30,5 mm
Max. sheet metal thickness
0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
Material
HSS-TiAlN
2631-7800-15-45
Sheet Metal Shell Drill Bit Set
Product range
for mobile devices
Size ø
3-14 mm, 8-20 mm, 16-30,5 mm
Max. sheet metal thickness
0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
Material
HSS
2611-7600-01-00
Hydraulic Cylinder Power 19
Suitable for
Round punches up to ø 135 mm / square punches 103 mm / rectangular punches up to a diagonal size of 145 mm
Max. sheet metal thickness
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 4 mm
Screw receptacle
19 mm draw studs
Cylinder stroke
40 mm
2611-7600-02-00
Hydraulic Cylinder Power 25
Suitable for
Round punches up to ø 185 mm / square punches 140 mm / rectangular punches up to a diagonal size of 195 mm
Max. sheet metal thickness
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 4 mm
Screw receptacle
Thread M25 x 1,5
Cylinder stroke
40 mm
2626-7200-01-00
Powerman Vario
Type
without punching tools in sheet metal case
Suitable for
round punches up to ø 80 mm / square punches up to 60 mm / rectangular punches up to 85 mm diagonal
Material thickness
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 4 mm
Threaded for
19 mm draw studs
2626-7206-01-00
Powerman Vario
Type
PG1 with round punches from PG9 to PG21 in plastic case
Suitable for
round punches up to ø 80 mm / square punches up to 60 mm / rectangular punches up to 85 mm diagonal
Material thickness
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 4 mm
Threaded for
19 mm draw studs
2626-7206-02-00
Powerman Vario
Type
PG2 with round punches from PG9 to PG29 in plastic case
Suitable for
round punches up to ø 80 mm / square punches up to 60 mm / rectangular punches up to 85 mm diagonal
Material thickness
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 4 mm
Threaded for
19 mm draw studs
2626-7207-01-01
Powerman Vario
Type
with metric round punches from M12 to M50 in plastic case
Suitable for
round punches up to ø 80 mm / square punches up to 60 mm / rectangular punches up to 85 mm diagonal
Material thickness
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 4 mm
Threaded for
19 mm draw studs
2629-7400-00-00
Powerlec Vario Plus
Type
Without punching tool
Suitable for
round punches up to ø 120 mm
Square punches 125 mm
Rectangular punches up to 175 mm; 6.89" diagonal
Square punches 125 mm
Rectangular punches up to 175 mm; 6.89" diagonal
Material thickness
Sheet steel up to 2 mm
Stainless steel up to 1,5 mm
Stainless steel up to 1,5 mm
Threaded for
19 mm draw studs
2629-7400-01-00
Powerlec Vario Plus
Type
with metric round punch kit
Suitable for
round punches up to ø 120 mm
Square punches 125 mm
Rectangular punches up to 175 mm; 6.89" diagonal
Square punches 125 mm
Rectangular punches up to 175 mm; 6.89" diagonal
Material thickness
Sheet steel up to 2 mm
Stainless steel up to 1,5 mm
Stainless steel up to 1,5 mm
Threaded for
19 mm draw studs
2629-7401-00-00
Powerlec Vario Plus
Suitable for
round punches up to ø 120 mm
Square punches 125 mm
Rectangular punches up to 175 mm; 6.89" diagonal
Square punches 125 mm
Rectangular punches up to 175 mm; 6.89" diagonal
Material thickness
Sheet steel up to 2 mm
Stainless steel up to 1,5 mm
Stainless steel up to 1,5 mm
Threaded for
19 mm draw studs
2629-7402-00-00
Powerlec Vario Plus
Suitable for
round punches up to ø 120 mm
Square punches 125 mm
Rectangular punches up to 175 mm; 6.89" diagonal
Square punches 125 mm
Rectangular punches up to 175 mm; 6.89" diagonal
Material thickness
Sheet steel up to 2 mm
Stainless steel up to 1,5 mm
Stainless steel up to 1,5 mm
Threaded for
19 mm draw studs
2685-7200-01-01
Powerman Step
Suitable for
round punches up to ø 120 mm / square punches 92 mm / rectangular punches up to 138 mm diagonal
Material thickness
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 4 mm
Threaded for
19 mm draw studs
