2621-7600-01-00

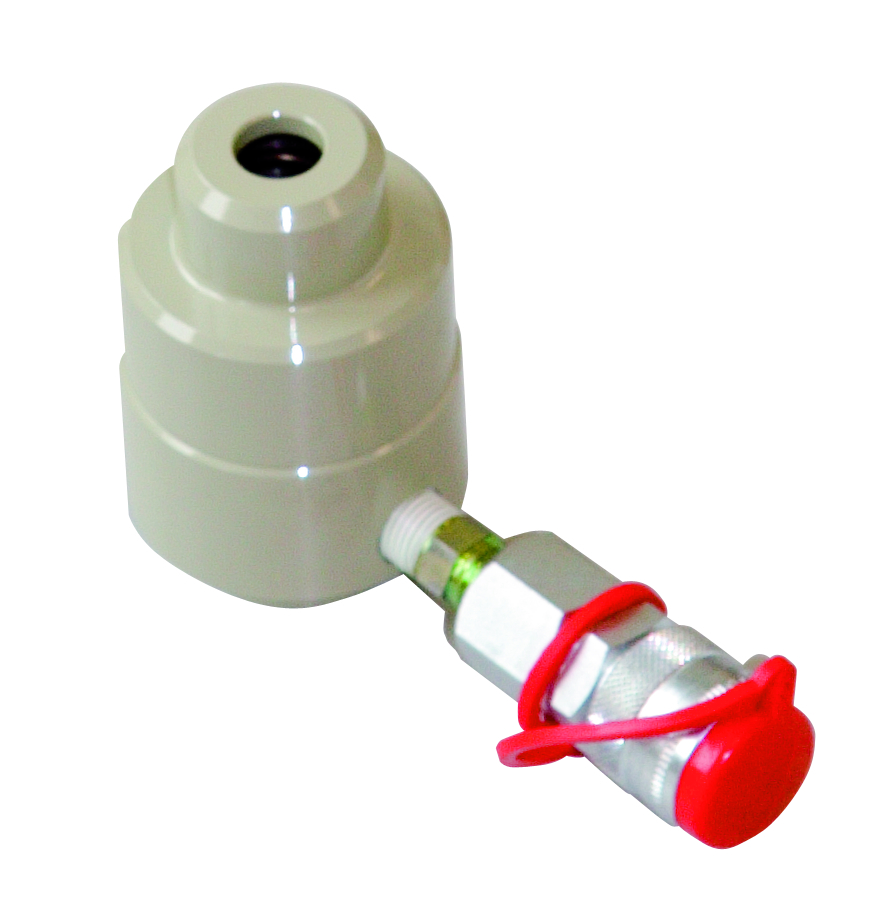

Hydraulic Cylinder 9,5/ 3/8"
Technical Data
-
PRODUCT NUMBER: 2621-7600-01-00
-
Dimension: Punching cylinder: ø 58 x 94 mm/ ø 2.28 x 3.7"
-
Suitable for: round punches up to ø 60 mm; 2.36" / square punches 46 mm; 1.81" / rectangular punches up to 65 mm; 2.56" diagonal
-
Max. sheet metal thickness: Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
-
PRODUKTFAMILIE: for mobile devices
-
Threaded for: 9.5 mm (3/8”) draw stud
-
Operating pressure: 450 bar
-
Weight: 1.5 kg
-
Piston stroke: 20 mm
Notice
- If the screw coupling on the hose of the punching pump is replaced by a barbed fitting, this cylinder can also be operated with hand or foot-operated punching pumps.
