Product description
For burr-free and chatter mark-free drilling.
No pre-drilling required due to sharp drill tip.
Diameter dimensions are specified in the groove.
Shaft with three surfaces.

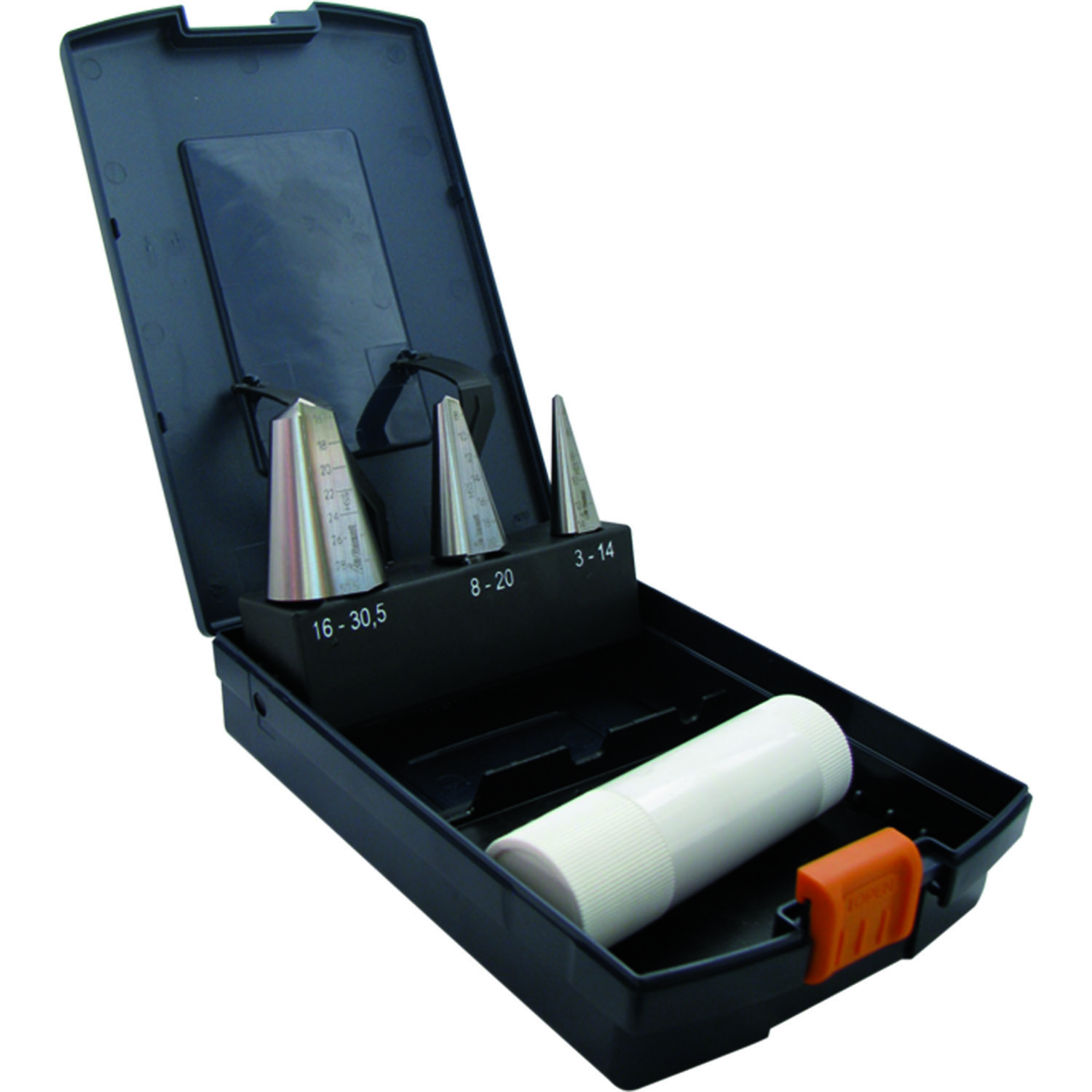

3-piece sheet metal shell drill bit set and drilling paste in case.
Technical Data
-
Order No.: 2631-7800-15-45
-
Max. sheet metal thickness: 0.1-2 mm sheet steel / 0.1-1 mm stainless steel / 0.1-5 mm aluminum / up 10 mm plastic
-
PRODUKTFAMILIE: for mobile devices
-
Material: HSS
-
Size: 3-14 mm, 8-20 mm, 16-30,5 mm
Notice
- Lubricating and cooling the drill bits without coating prolongs their service life.
- 3-piece sheet metal shell drill bit set, 1 drilling paste, 1 case
2621-0711-10-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 11,1/9,5 mm
Screw length
95 mm
2622-0719-02-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 19/9,5 mm
Screw length
130 mm
2623-0706-30-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 6,3/9,5 mm
Screw length
82 mm
2623-0710-00-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 9,5/9,5 mm
Screw length
100 mm
2623-0719-00-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 19/9,5 mm
Screw length
130 mm
2624-0710-00-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 9,5/9,5 mm
Screw length
87 mm
2624-0711-19-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 11,1/19 mm
Screw length
100 mm
2624-0719-00-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 19/19 mm
Screw length
120 mm
2683-0710-00-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 9,5/9,5 mm
Screw length
72 mm
2683-0719-00-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 19/19 mm
Screw length
135 mm
2683-0725-19-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 25/19 mm
Screw length
120 mm
2684-0711-19-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 11,1/19 mm
Screw length
112 mm
2683-1710-62-00
Draw Stud for Manual Operation
Product range
for mobile devices
Type
with ball bearing
Size
9,5 x 53 mm
Wrench Size
17 mm
2683-1711-50-00
Draw Stud for Manual Operation
Product range
for mobile devices
Type
with ball bearing
Size
11,1 x 60 mm
Wrench Size
17 mm
2683-1719-75-00
Draw Stud for Manual Operation
Product range
for mobile devices
Type
with ball bearing
Size
19 x 75 mm
Wrench Size
27 mm
