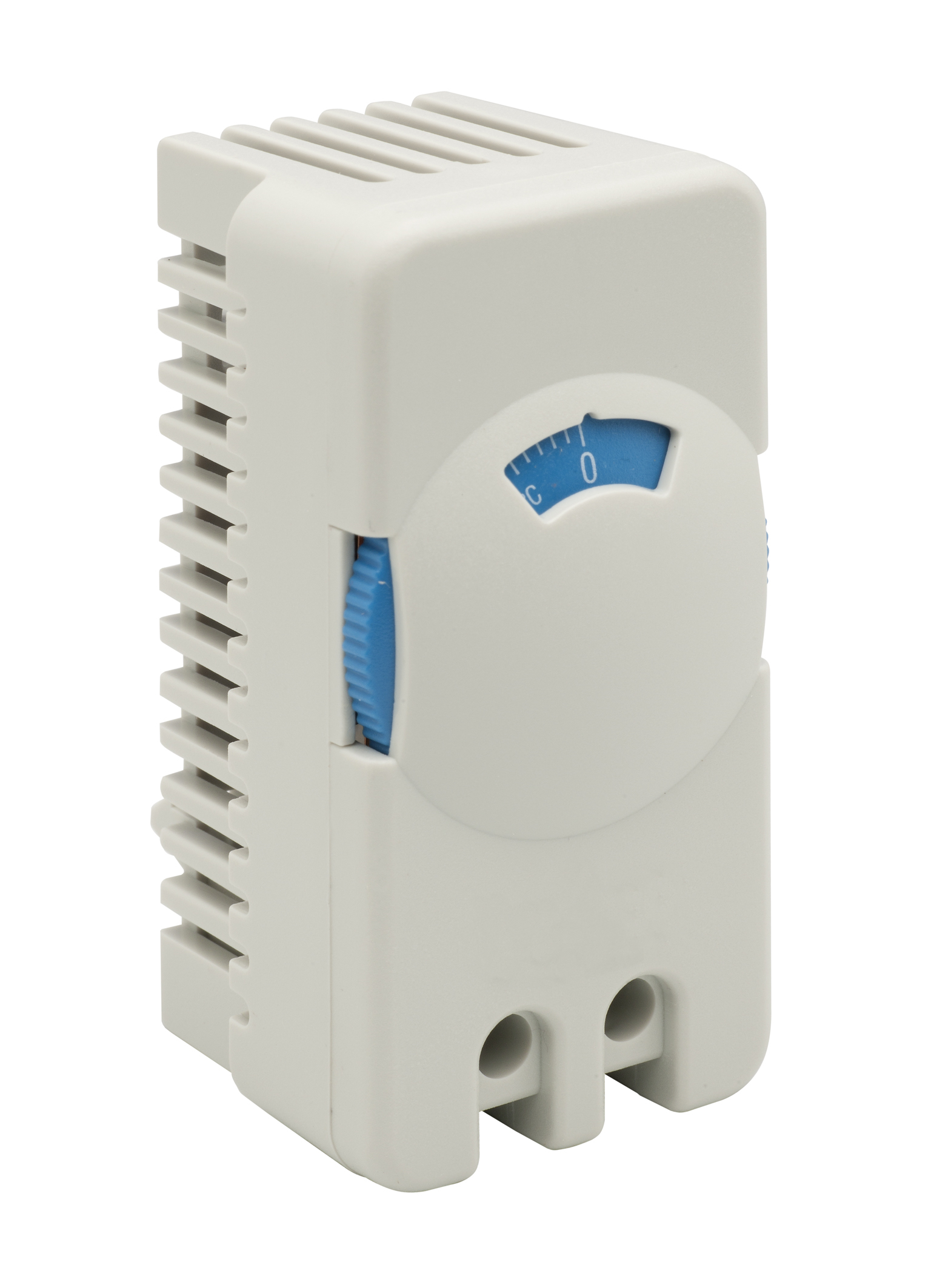

Product description
These mechanical thermostats are two state regulators with small hysteresis. The setting wheel of the normally open contact version has an anti-frost assurance. The enclosure ensures an optimized air circulation around the bimetal.
Thermostat-NC STO 011 contact breaker for controlling heaters. The contact opens when temperature is rising.

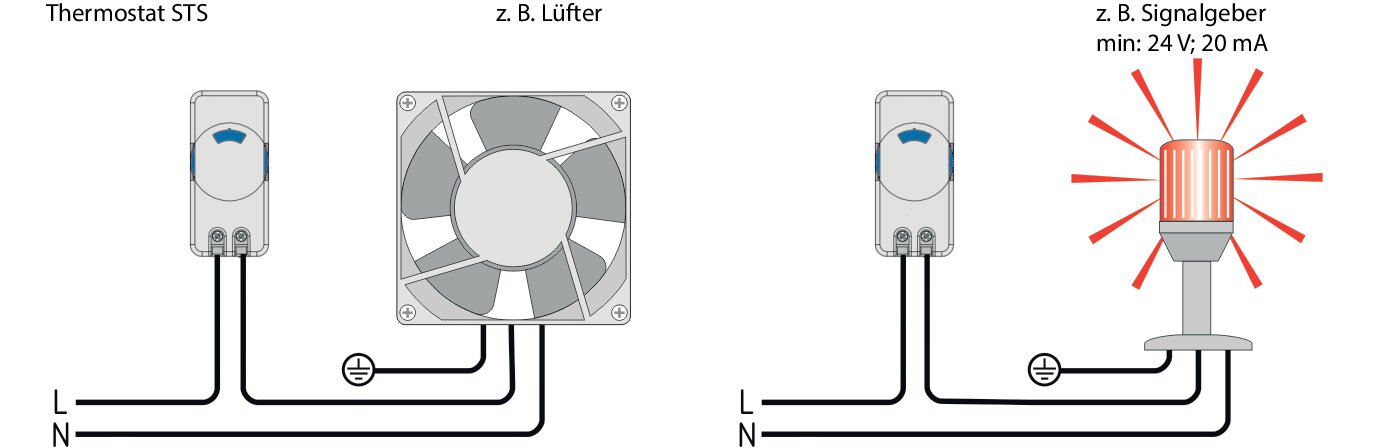

Thermostat-NO STS 011 contact maker for controlling filter fans, heat exchangers, air conditioners or for switching signal devices when temperature limit has been exceeded. The contact closes when temperature is rising.
Technical Data
-
Order No.: 3150-2060-02U30
-
Protection type: IP20
-
Electrical connection: 2-poleterminal, clamping torque1 Nm max.:rigid/stranded wire 2.5qmm (AWG 14)
-
Switching hysteresis: 4K +/- 3K
-
Contact type: Snap-action contact
-
Max. switching capacity: AC 250V, 10 (2) A / AC 120V, 15 (2) A / DC 30 W bei DC 24V bis DC 72V
-
Max. starting current: AC
-
Service lifetime: >100.000 cycles
-
Sensor element: Bimetal
-
Control system: Closed con. (cooling)
-
Mounting: Clip for 35 mm DIN rail EN 60715
-
Weight: 50 g
-

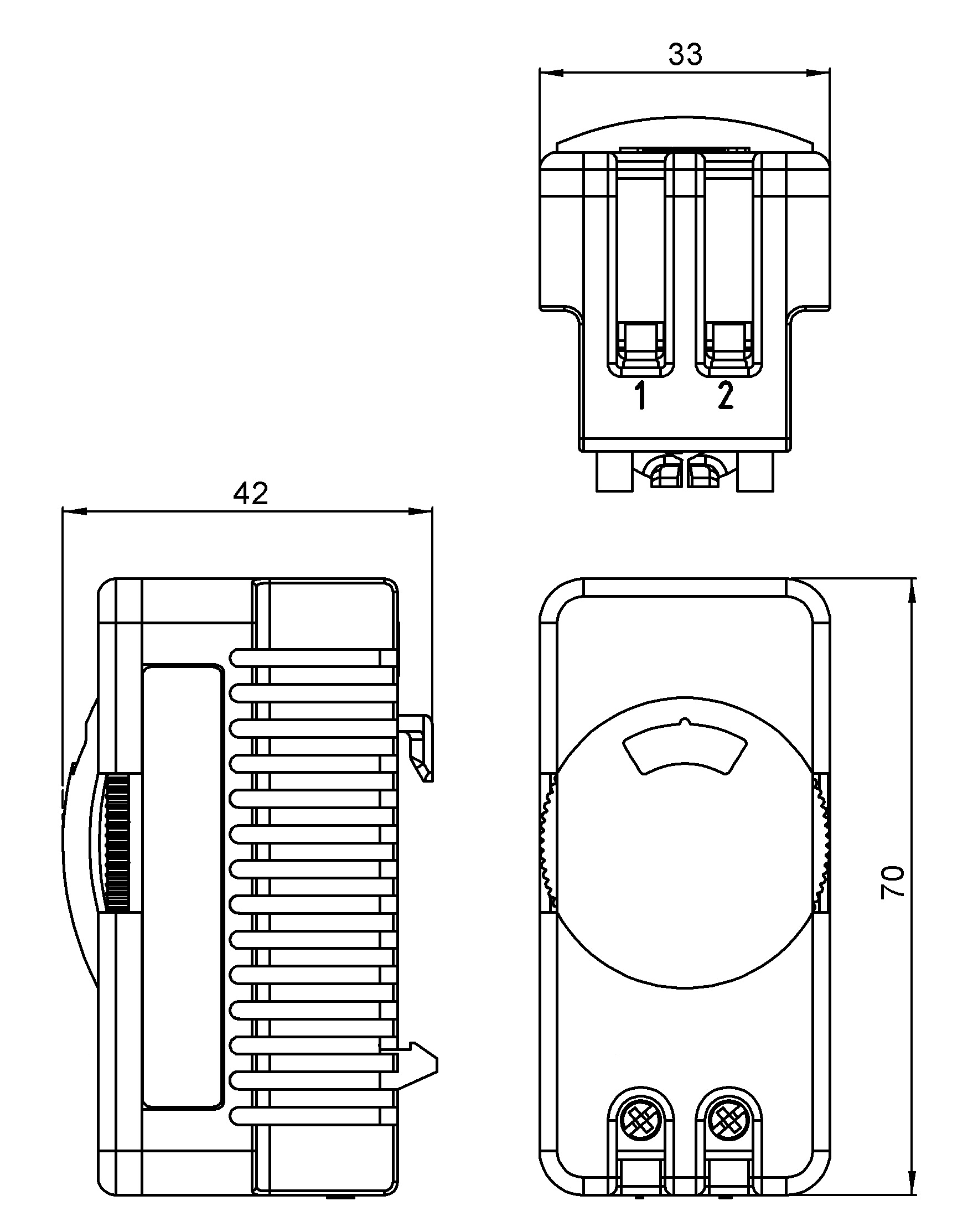

Dimension: Width : 33 mm Height : 70 mm Depth : 42 mm
-
Surface: Plastic light grey UL94VO
-
Type: STS 011
-
Fitting position: variable
Notice
- When connecting with stranded wires, use wireend ferrules.
- The contact system of the regulator is subjectedto environmental influences, thus the contactresistance may change. This may lead to avoltage drop and/or self-heating of the contacts
- 1 thermostat with snap-on attachment
