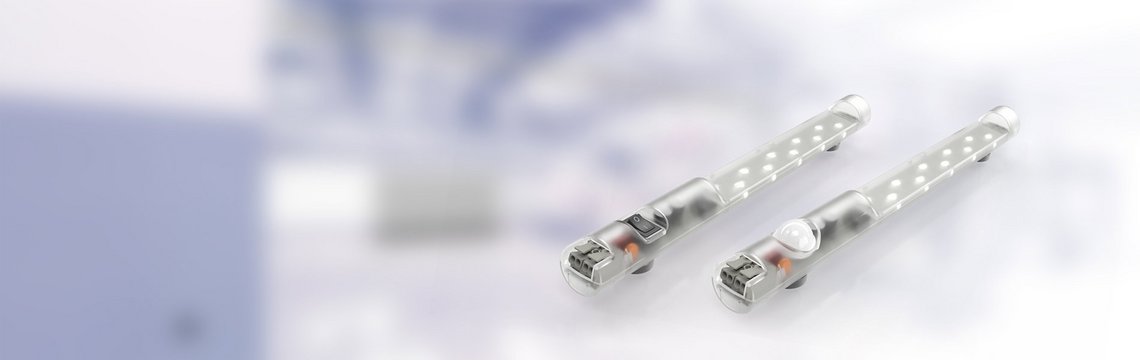

Always flexible with the häwa LED lamp Multi Wide Voltage

When highly flexible solutions are required, häwa is the ideal partner. Our Multi Wide Voltage LED lamp is a particularly adaptable accessory for your control cabinet.

The wide voltage range allows operation with both AC and DC voltages, and the lights can also be mounted easily and in a variety of ways.

The user-friendly cascading capability of up to 10 lights makes them particularly easy to use in modular cabinets.

The LED lights are available in two different versions: with an on/off switch or with a motion detector. All versions are available with 560 lumens of light output, a color temperature of 6000-7000 K, and a beam angle of 120°, and either with mounting hardware for screw and clip mounting or for magnet and clip mounting.

Enquiry about Multi Wide Voltage control cabinet light

■ Multi-range voltage (AC, DC)

■ Durable and maintenance-free thanks to LED technology

■ Cascadable

■ On/off switch or motion detector

■ Mounting hardware for magnetic, screw, and clip mounting

LED lights from häwa

LED-Lamp 025 Multi Wide Voltage, Screw and Clip Fixing, 2-Pole Pressure Clamp

LED lamps with multi-wide voltage are ideal for flexible use in control cabinets and enclosures of various sizes. Multi-wide voltage is suitable for AC and DC voltages, providing maximum flexibility. The provided mounting kit enables easy and versatile installation. Thanks to its clip fixing, the lamp can be bolted to any position in the cabinets and enclosures. It is simply snapped into the clip holder and can be rotated as required for optimum lighting.


3080-7255-00-10	on/off switch	AC/DC 24 – 240 V, 0/50/60 Hz (min. 20 V, max. 265 V)	Magnet and clip fixing	560 lumens	CE, UKCA, cURus
3080-7255-00-11	on/off switch	AC/DC 24 – 240 V, 0/50/60 Hz (min. 20 V, max. 265 V)	Screw and clip fixing	560 lumens	CE, UKCA, cURus
3080-7255-10-10	Motion detector	AC/DC 24 – 240 V, 0/50/60 Hz (min. 20 V, max. 265 V)	Magnet and clip fixing	560 lumens	CE, UKCA, cURus
3080-7255-10-11	Motion detector	AC/DC 24 – 240 V, 0/50/60 Hz (min. 20 V, max. 265 V)	Screw and clip fixing	560 lumens	CE, UKCA, cURus

Universal lamp

Cabinet light for häwa wall-mount enclosures Serie 33, consoles type H335 and cabinets type H3XX.
Minimum width of wall-mount enclosures Serie 33, consoles type H335 or cabinets: 400 mm.
Completely pre-wired.
Electrical connection via spring terminal.
Flexible attachment with optional mounting kits: at the enclosure reinforcement and attachment frame, perforated continuously every 25 mm, behind the enclosure frame, directly on the mounting plate or on 35 mm wide support rails.
Choice of switch type…

					notice
3080-9043-09-07	Shockproof “Schuko” socket 16 A	left	with door switch	220V - 240V 50Hz
3080-9043-19-07	without	left	with door switch	220V - 240V 50Hz

Sensor Operated LED Lamp, SOL 704

The SOL 704 Sensor Operated LED lamp ensures an optimum illumination of control cabinets. The pre-set proximity sensor is ready for operation after mounting the lamp and switches the lamp immediately ON or with a delay of 5 s OFF when opening or closing the door.
An integrated N.C (normally closed) / N.O. (normally open) relay operates as a door switch for switching devices or components, such as cooling units, filter fans and signal towers, etc., including suitable plugs for connecting the…


3080-7043-15-07	120 V-230 V~ (50 Hz/60 Hz) +/- 10% 120 V-277 V~ (50 Hz/60 Hz) +/- 10%		magnetic	440 mm	UKCA, cULus, cURus, CE, VDE EMC
3080-7043-35-07	24 V- +/- 10%		magnetic	440 mm	UKCA, cULus, cURus, CE, VDE EMC
3080-7042-14-17	230 V~ (50 Hz/60 Hz) +/- 10%	Schuko CEE 7/3 load: Max. 16 A	Screw mounted version	440 mm	CE, VDE EMC, UKCA
3080-7042-25-27	120 V~ (50 Hz/60 Hz) +/- 10%	NEMA 5-15 load: - max. 11.9 A Cascaded - max.10.6 A	Screw mounted version	440 mm	UKCA, cULus, cURus, CE, VDE EMC
3080-7042-15-07	120 V-230 V~ (50 Hz/60 Hz) +/- 10% 120 V-277 V~ (50 Hz/60 Hz) +/- 10%		Screw mounted version	440 mm	UKCA, cULus, cURus, CE, VDE EMC
3080-7042-35-07	24 V- +/- 10%		Screw mounted version	440 mm	UKCA, cULus, cURus, CE, VDE EMC

Fluorescent Lamp, Ready for Connection

The cabinet light with door switch is pre-assembled and ready for connection.
For assembly under the cabinet roof or, with an installation kit, at the lateral frame of the cabinet (for modular cabinets only).

Order No.	Operating voltage	Version	Fixing type	Socket	notice
3080-9042-04-07	AC 220-240V, 50/60 Hz	Door switch	Screw mounted version	Schuko CEE 7/3 load: Max. 16 A
